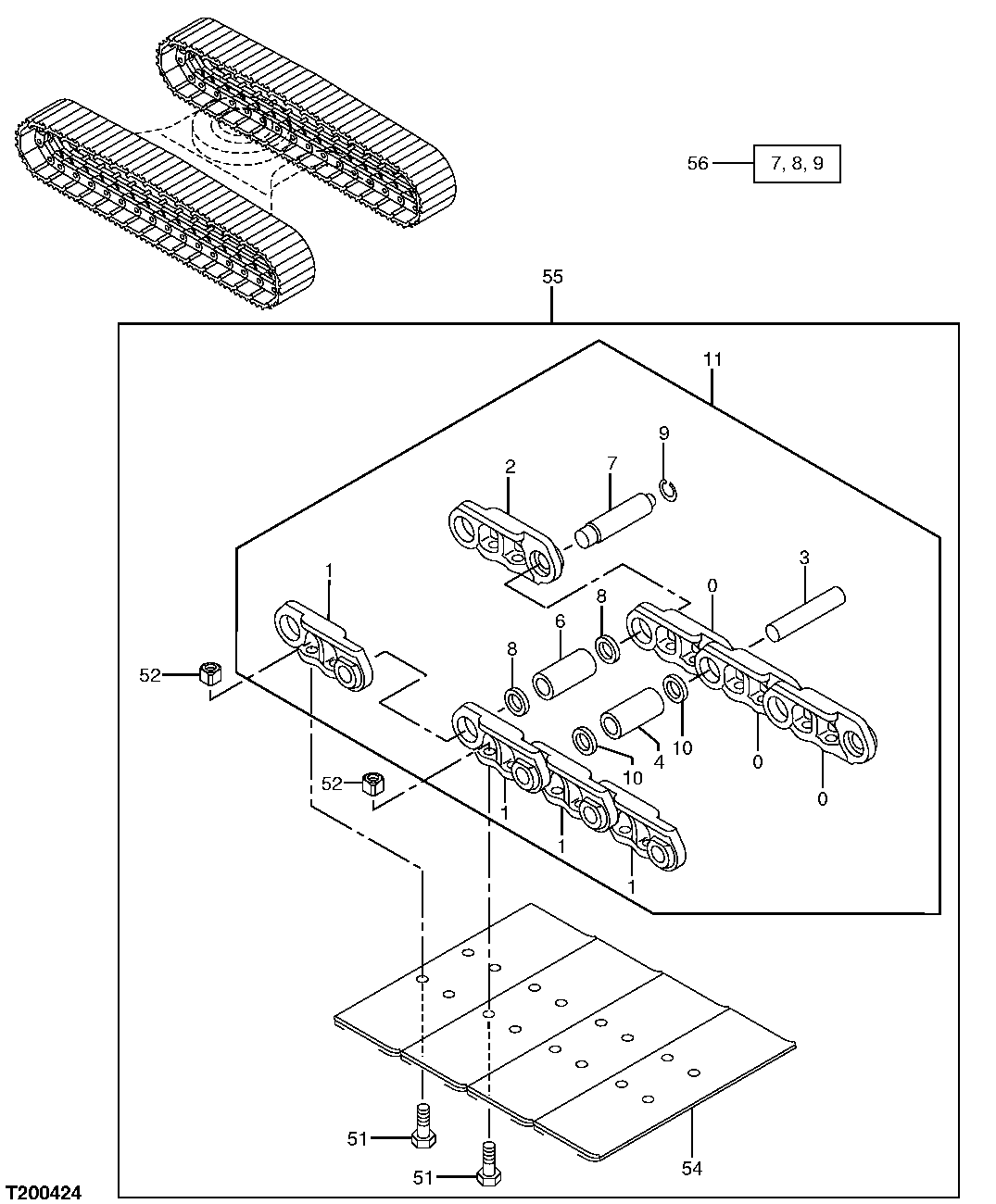

Запчасти John Deere 200LC, 330LC, 370 11 - 200LC HEAVY DUTY TRACK CHAINS, SNAP RING MASTER 0130 Track Systems

0

AT219480

Strutted LINK-RH

NLA, SUB 0005251R, RH

48шт.

0005251R

Track Link

RH

48шт.

1

AT219481

Strutted LINK-LH

NLA, SUB 0005252R, LH

49шт.

0005252R

Track Link

LH

49шт.

2

T209262

Master Track LINK-RH

Right Master

1шт.

3

AT180028

Pin Fastener

47шт.

4

AT186162

Bushing

47шт.

6

AT219468

Bushing

Master

1шт.

7

T209260

Master Track Pin

Master

1шт.

8

AT219471

Spacer

Master

1шт.

9

T209259

Snap Ring

2шт.

10

AT186161

Seal

94шт.

11

9250500R

Track Chain W/O Shoes

SUB FOR AT311628

1шт.

51

T142594

Track Bolt

M20 X 62

196шт.

52

T139615

Nut

M20

196шт.

54

T142593

Single Bar Shoe

650 mm, Heavy Duty

49шт.

FFSB113209

Double Bar Shoe

700 mm, Rigid Edge Grouser Heavy Duty

49шт.

T186385

Double Bar Shoe

700 mm, Slanted Edge Grouser Heavy Duty

49шт.

55

Track Assembly With Shoes

Complete Track Assembly Not Avai lable For Heavy Duty Applications

1шт.

56

AT313621

Chain Kit

Master Pin Kit INCLUDES T209 260, T209259 AND (2) AT219471

1шт.
