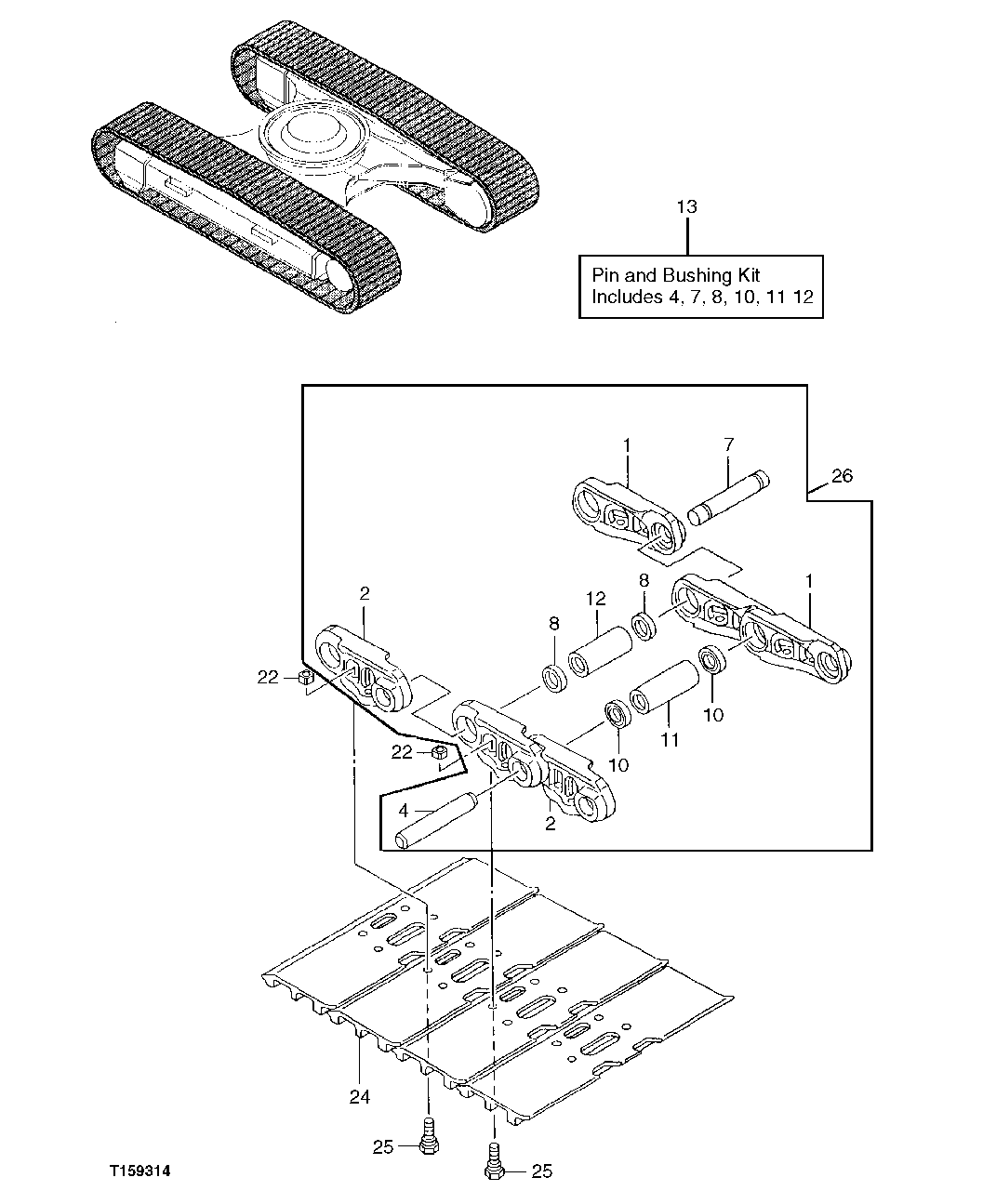

Запчасти John Deere 200LC, 330LC, 370 10 - 200LC HEAVY DUTY TRACK CHAINS, PRESS IN MASTER 0130 Track Systems

1

AT219480

Strutted LINK-RH

NLA, SUB 0005251, RH

49шт.

0005251R

Track Link

RH

49шт.

2

AT219481

Strutted LINK-LH

NLA, SUB 0005252R, LH

49шт.

0005252R

Track Link

LH

49шт.

4

AT180028

Pin Fastener

(A) 38 X 212 mm

47шт.

7

AT180030

Pin Fastener

(A) ALSO ORDER (2) AT2194 71 AND AT219468 Master Pin

1шт.

8

Spacer

Master FFSB13386 NLA, FURNISH T219471

2шт.

AT219471

Spacer

(A) Master ALSO ORDER AT180030 AND AT219468, SUB FOR AT174862

2шт.

10

AT180029

Seal

Dual Spring Washer

192шт.

AT186161

Seal

(A) M Seal

94шт.

11

Bushing

AT180032 NLA, SUB AT186162

47шт.

AT186162

Bushing

(A) ALSO ORDER (2) AT 186161 Use With M Seal

47шт.

12

Master Track Bushing

FFSB113387 NLA, SUB AT219468 Master

1шт.

AT219468

Master Track Bushing

(A) Master ALSO ORDER ( 2) AT219471 AND AT180030

1шт.

13

AT187185

Pin & Bushing Kit

Includes Parts Marked A

1шт.

22

T139615

Nut

M20 Each Side Of Unit

196шт.

24

FFSB113209

Double Bar Shoe

700 mm, Rigid Edge Grouser Each Side Of Unit Heavy Duty

49шт.

T186385

Double Bar Shoe

700 MM Slanted Edge Grouser Each Side Of Unit Heavy Duty

49шт.

T142593

Single Bar Shoe

650 mm, Each Side Of Unit Heavy Duty

49шт.

25

T142594

Track Bolt

M20 X 62 Each Side Of Unit

196шт.

26

9250500R

Track Chain W/O Shoes

SUB FOR AT195209 AND AT311628, SNAP RING STYLE OR FFSB111198, PRESS IN ST YLE Quantity of 1 Each Side of Unit

2шт.
