164 - HEEL CYLINDER

Запчасти John Deere 200LC, 330LC, 370 164 - HEEL CYLINDER 3360 HYDRAULIC SYSTEM

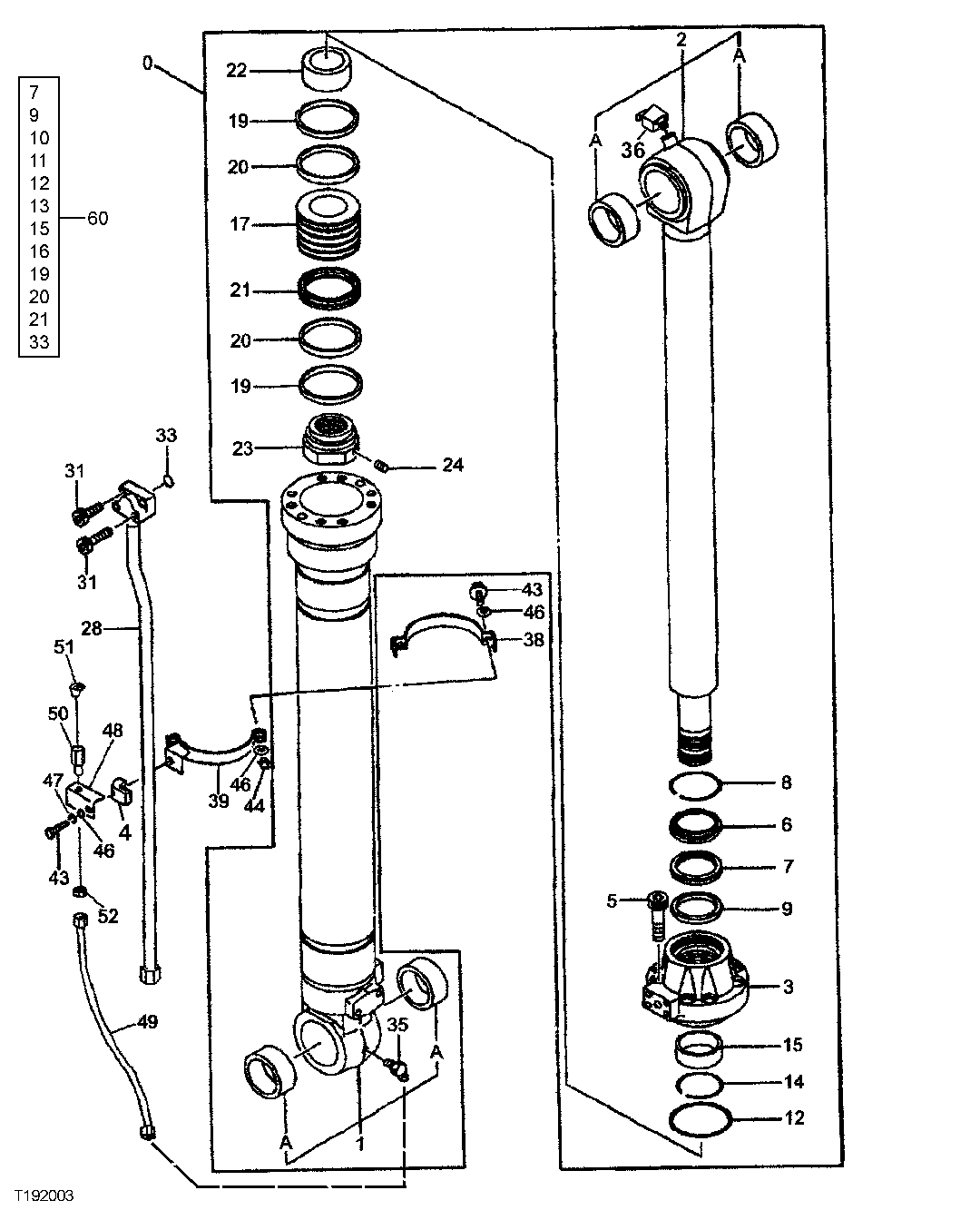

Схема запчастей John Deere 200LC, 330LC, 370 - 164 - HEEL CYLINDER 3360 HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

9173706JEX

Hydraulic Cylinder Reman

SUB FOR AT250263

1шт.

1

4646011

Hydraulic Cylinder Barrel

SUB FOR AT250266, 9173709 OR 92063 64, ALSO ORDER 3088557 AND 8079157

1шт.

3088557

Clamp

1шт.

8079157

Clamp

1шт.

4646011

Hydraulic Cylinder Barrel

SUB FOR PG201466

1шт.

1A

4358100

Bushing

SUB FOR AT217787

2шт.

2

7037769

Rod

SUB FOR AT250183

1шт.

2A

4381857

Bushing

SUB FOR AT250028

2шт.

3

1022645

Hydraulic Cylinder Cap

SUB FOR AT181791

1шт.

4

4190127

Clamp

SUB FOR TH108313

1шт.

5

19M8630

Screw

M24 X 80

8шт.

6

AT264294

Seal

SUB FOR AT217969 OR 4348201

1шт.

7

AT264408

Seal

SUB FOR TH111216

1шт.

8

4369508

Ring

SUB FOR AT217983

1шт.

9

4389326

Ring

SUB FOR 4389326, AT219666 AND AT264409

1шт.

10

AT264399

Back-Up Ring

NOT ILLUSTRATED

1шт.

11

AT264406

O-Ring

NOT ILLUSTRATED

1шт.

12

AT264274

O-Ring

(SUB FOR AT159582 OR 4267138

1шт.

13

AT264407

Seal

NOT ILLUSTRATED

1шт.

14

4264982

Snap Ring

SUB FOR AT131254

1шт.

15

AT264239

Bushing

SUB FOR AT131420

1шт.

16

AT280433

Back-Up Ring

NOT ILLUSTRATED

1шт.

17

3080835

Piston

SUB FOR AT219645

1шт.

19

AT264400

Ring

SUB FOR TH110062

2шт.

20

AT264401

Wear Ring

SUB FOR TH110063

2шт.

21

AT264402

Ring

SUB FOR TH110065

1шт.

22

4194625

Ring

SUB FOR TH111275

1шт.

23

3039348

Nut

SUB FOR TH111191

1шт.

24

4201806

Set Screw

M12 X 20 SUB FOR TH110066

1шт.

28

FFSB103402

Line

1шт.

31

19M8444

Screw

M12 X 60

4шт.

33

AT264324

O-Ring

SUB FOR TH100044

1шт.

35

X4C3MXS

Elbow Fitting

SUB FOR FFSB112279

1шт.

36

T116334

Lubrication Fitting

SUB FOR FFSB109614

1шт.

38

FFSB102121

Clamp

1шт.

39

FFSB102122

Clamp

1шт.

43

19H1930

Cap Screw

1/2" X 2-1/2"

3шт.

44

Lock Nut

2шт.

45

19H1930

Cap Screw

1/2" X 2-1/2"

1шт.

46

24H1111

Washer

17/32" X 1-1/16" X 0.090"

5шт.

47

12H301

Lock Washer

1/2"

3шт.

48

FFSB102123

Bracket

1шт.

49

FFSB102058

Hydraulic Hose

1шт.

50

X4WGTX-WLN-S

Adapter Fitting

SUB FOR FFSB102226

1шт.

51

JD7781

Lubrication Fitting

SUB FOR FFSB103405

1шт.

52

Lock Nut

1шт.

60

AT264430

Seal Kit

INCLUDES PARTS MARKED A

1шт.
