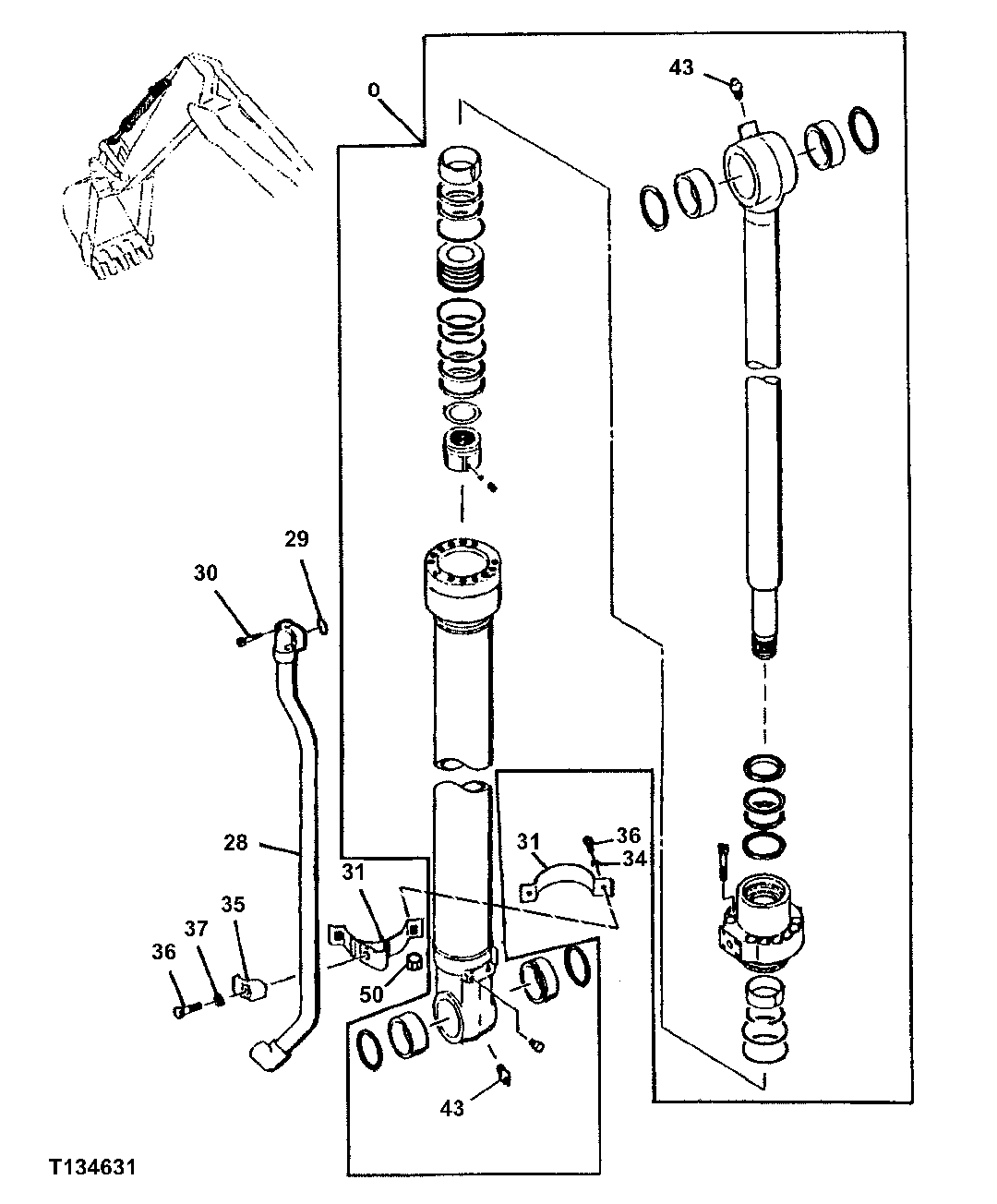

Запчасти John Deere 200LC, 330LC, 370 162 - LOG LOADER TILT CYLINDER 3360 HYDRAULIC SYSTEM

0

AH163278

Hydraulic Cylinder Reman

(FOR COMPONENTS SEE 200LC COMPLETE MODE L PARTS CATALOG) (CYLINDER HEAD MUST BE TURNED 180 DEGREES FOR THIS APPLICATION)

1шт.

28

FFSB103094

Oil Line

1шт.

29

AT264360

O-Ring

(SUB FOR TH104930, 4506430)

1шт.

30

19M8339

Screw

M10 X 55 (SUB FOR FFSB107524)

4шт.

31

FFSB103004

Clamp

(CONTAINS TWO PIECES)

1шт.

34

12H301

Lock Washer

1/2"

2шт.

35

4190126

Clamp

(SUB FOR TH109830)

1шт.

36

19M7361

Cap Screw

M12 X 50

1шт.

37

24M7047

Washer

13 X 24 X 2.500 mm

1шт.

43

T116334

Lubrication Fitting

(SUB FOR FFSB107456)

2шт.

50

14M7275

Nut

M12

2шт.
