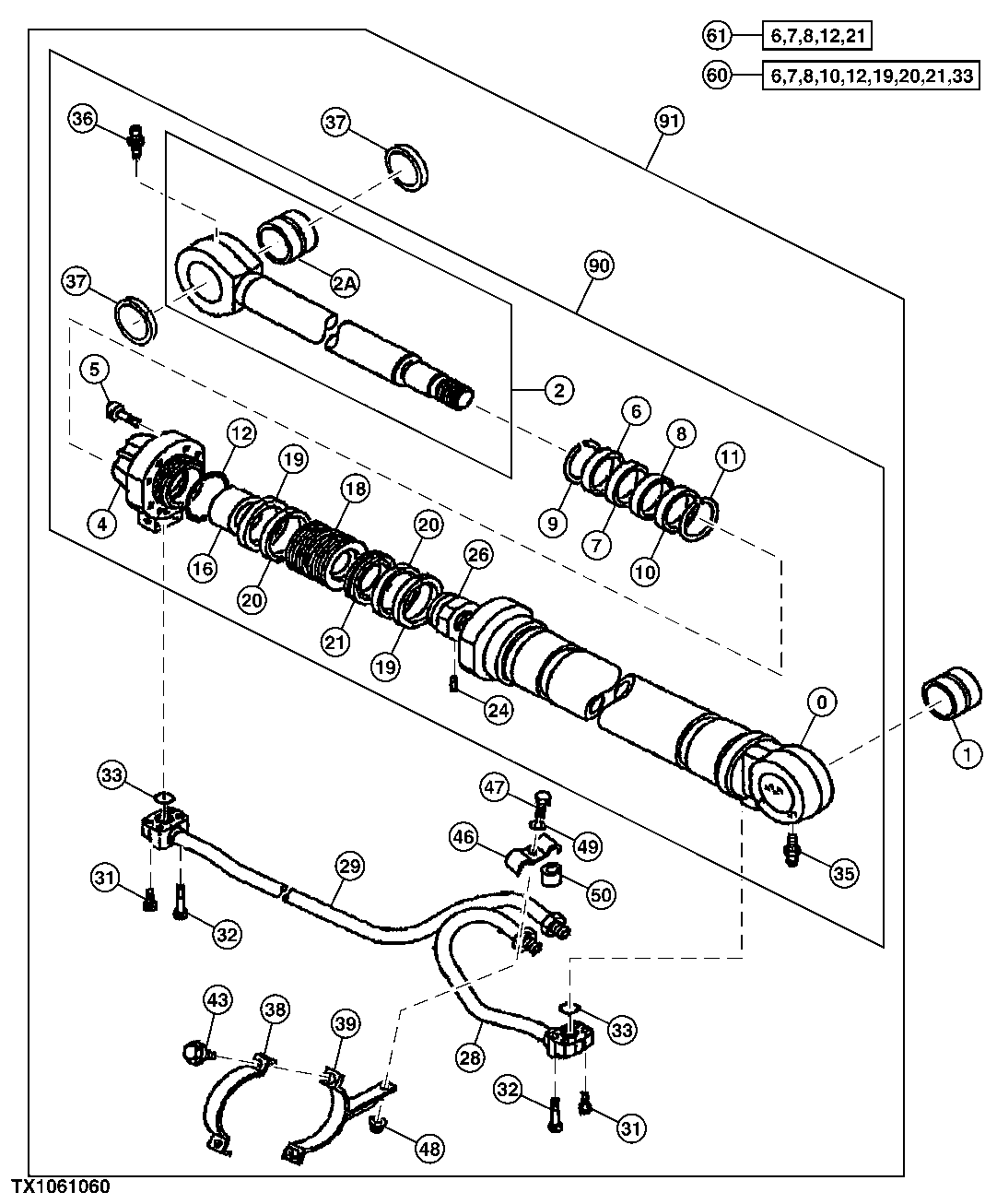

Запчасти John Deere 200LC, 330LC, 370 153 - LOG LOADER LEFT BOOM CYLINDER (200LC) 3360 HYDRAULIC SYSTEM

0

Hydraulic Cylinder Barrel

( 7039099 NLA)

1шт.

1

3031789

Bushing

1шт.

2

Hydraulic Cylinder Rod

( 7039094 NLA)

1шт.

2A

3042080

Bushing

1шт.

4

1015435

Hydr. Cylinder Rod Guide

(SUB FOR FFSB109049)

1шт.

5

19M8630

Screw

M24 X 80 (SUB FOR FFSB109050)

8шт.

6

AT264294

Seal

(SUB FOR FFSB109051, AT217969, 4348201)

1шт.

7

AT264408

Seal

(SUB FOR FFSB109052, TH111216)

1шт.

8

AT264409

Ring

(SUB FOR FFSB109053 ) (SUB FOR AT201003 ) (SUB 4389326)

1шт.

4389326

Ring

1шт.

9

4369508

Ring

(SUB FOR FFSB109054)

1шт.

10

AT217959

Wear Ring

(SUB FOR FFSB109055 ) (SUB FOR 4272962)

1шт.

11

4264982

Snap Ring

(SUB FOR FFSB109056)

1шт.

12

AT264268

O-Ring

(SUB FOR FFSB109057, AT154722)

1шт.

16

4264978

Spacer

(SUB FOR FFSB109058)

1шт.

18

3052363

Piston

(SUB FOR FFSB109059)

1шт.

19

AT264397

Ring

(SUB FOR FFSB109060, 4185246, TH110033)

2шт.

20

AT264266

Wear Ring

(SUB FOR FFSB109061, 4252191)

2шт.

21

AT264297

Seal

(SUB FOR FFSB109062, AT218148)

1шт.

24

4201805

Set Screw

(SUB FOR FFSB109063)

1шт.

26

3063059

Nut

(SUB FOR FFSB109064)

1шт.

28

FFSB103117

Oil Tube

1шт.

8081546

Line

(SUB FOR FFSB109072)

1шт.

29

FFSB103118

Oil Tube

1шт.

8081548

Line

1шт.

31

19M8489

Screw

M12 X 65

8шт.

19M8341

Screw

M12 X 45 (SUB FOR FFSB107236)

4шт.

32

19M8444

Screw

M12 X 60 (SUB FOR FFSB107237)

4шт.

33

AT264324

O-Ring

(SUB FOR FFSB107238, TH100044)

2шт.

35

TH100074

Lubrication Fitting

(SUB FOR FFSB107233)

1шт.

36

JD7769

Lubrication Fitting

1шт.

JD7769

Lubrication Fitting

(SUB FOR TH100364)

1шт.

37

TH102411

Seal

(SUB FOR FFSB109384)

2шт.

38

FFSB103067

Clamp

1шт.

3049761

Clamp

(SUB FOR FFSB109068)

1шт.

39

8081558

Clamp

(SUB FOR FFSB109069)

1шт.

43

12H301

Lock Washer

1/2"

2шт.

14M7275

Nut

M12

2шт.

19M7361

Cap Screw

M12 X 50

2шт.

19M7550

Cap Screw

M10 X 35 (SUB FOR FFSB107241)

2шт.

12M7066

Lock Washer

10 mm

2шт.

46

4189860

Clamp

(SUB FOR TH108314)

1шт.

4443497

Clamp

(SUB FOR FFSB109070)

1шт.

47

19M8088

Cap Screw

M12 X 75

1шт.

24M7047

Washer

13 X 24 X 2.500 mm

1шт.

19M8348

Cap Screw

M12 X 65 (SUB FOR FFSB107244)

1шт.

48

14M7275

Nut

M12 (SUB FOR FFSB107245)

1шт.

49

12H301

Lock Washer

1/2" (SUB FOR FFSB107139)

1шт.

50

4410980

Spacer

(SUB FOR FFSB107243)

1шт.

60

AT264437

Hydraulic Cylinder Kit

1шт.

61

9180587

Hydraulic Cylinder Kit

(SUB FOR 9161917, AT218042)

1шт.

90

Hydraulic Cylinder

(SUB 4656437)(FOR CYLINDER APPLICATONS OT HER THAN LOG LOADERS SEE 200LC EXCAVATOR P ARTS CATALOG) ( 9218634, FFSB110793 NLA)

1шт.

91

Hydraulic Cylinder

(SUB 4641544)(FOR CYLINDER APPLICATION S OTHER THAN LOG LOADERS SEE 200LC EXCA VATOR PARTS CATALOG) ( FFSB104899 NLA)

1шт.
