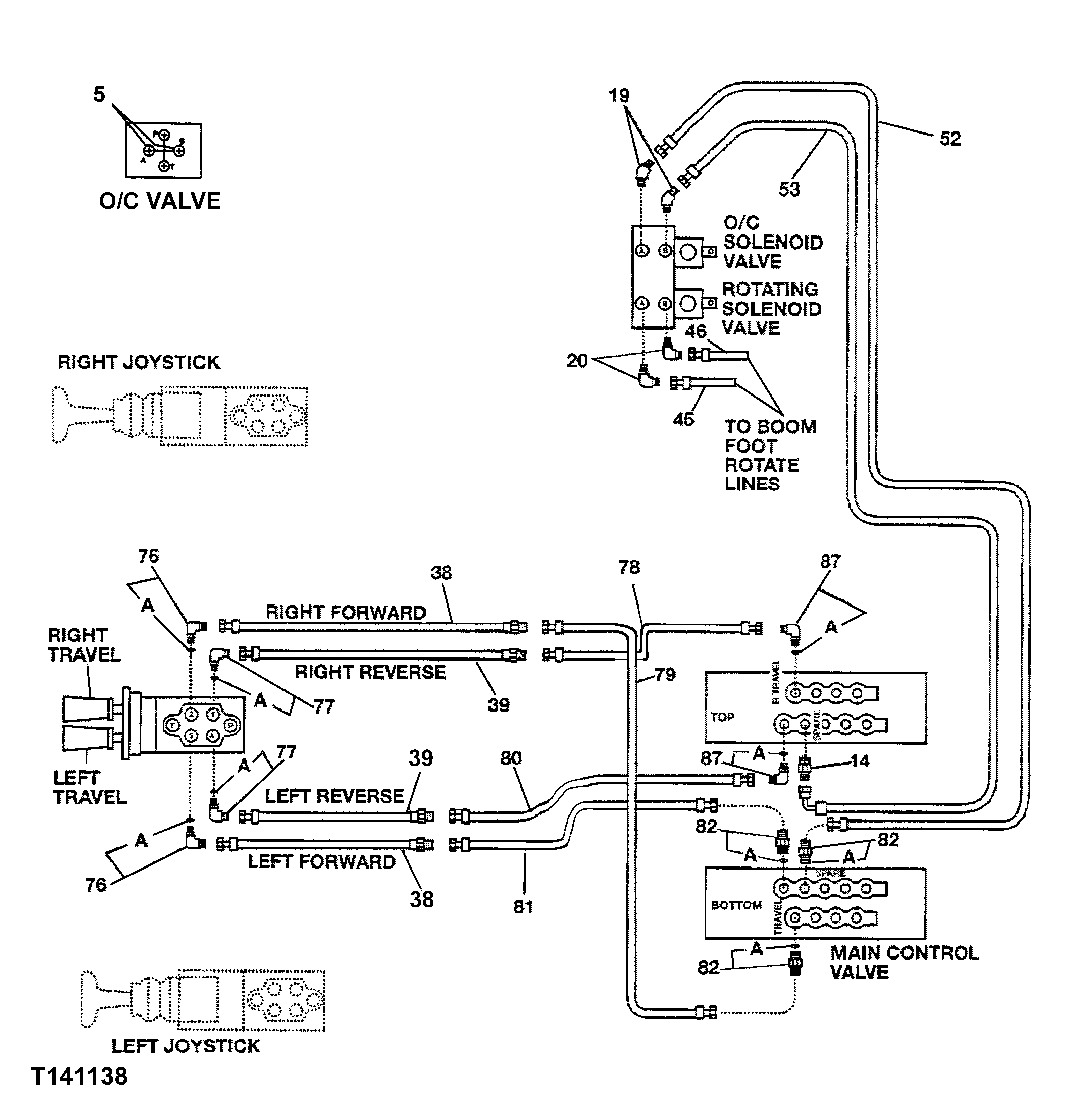

Запчасти John Deere 200LC, 330LC, 370 132 - Pilot Piping (Forestry Cab - Heeler) 3360 HYDRAULIC SYSTEM

5

FFSB102387

Orifice

2шт.

14

4202422

Adapter Fitting

(SUB FOR TH108440)

1шт.

19

AN113929

Elbow Fitting

2шт.

20

38H1241

Elbow Fitting

2шт.

X8V5OLO-S

Elbow Fitting

(SUB FOR FFSB103644)

2шт.

38

FFSB102551

Hydraulic Hose

(SUB FOR FFSB102875)(4 8 INCH SIDE ENTRY CAB)

2шт.

FFSB103581

Hydraulic Hose

2шт.

39

FFSB102552

Hydraulic Hose

(SUB FOR FFSB102876)(4 8 INCH SIDE ENTRY CAB)

2шт.

FFSB103581

Hydraulic Hose

2шт.

45

FFSB102240

Hydraulic Hose

1шт.

FFSB103584

Hydraulic Hose

1шт.

46

FFSB102241

Hydraulic Hose

1шт.

FFSB103585

Hydraulic Hose

1шт.

52

FFSB102241

Hydraulic Hose

1шт.

FFSB108706

Hydraulic Hose

1шт.

53

FFSB102244

Hydraulic Hose

1шт.

FFSB103591

Hydraulic Hose

1шт.

76

AT318014

Elbow Fitting

(SUB FOR 4156434 ) (SUB FOR AT204940)

2шт.

76A

M800650

Packing

1шт.

77

AT318014

Elbow Fitting

(SUB FOR 4156434 ) (SUB FOR TH101930)

2шт.

77A

M800650

Packing

1шт.

78

AT250094

Hydraulic Hose

1шт.

FFSB103582

Hydraulic Hose

1шт.

79

AT219679

Hydraulic Hose

1шт.

FFSB103582

Hydraulic Hose

1шт.

80

AT250064

Hydraulic Hose

1шт.

FFSB103582

Hydraulic Hose

1шт.

81

AT250093

Hydraulic Hose

1шт.

FFSB103582

Hydraulic Hose

1шт.

82

4200466

Adapter Fitting

(SUB FOR TH108320)

3шт.

82A

CH11570

O-Ring

13.800 X 2.400 mm

1шт.

87

4208913

Adapter Fitting

(SUB FOR AT126458)

2шт.

87A

CH11570

O-Ring

13.800 X 2.400 mm

1шт.
