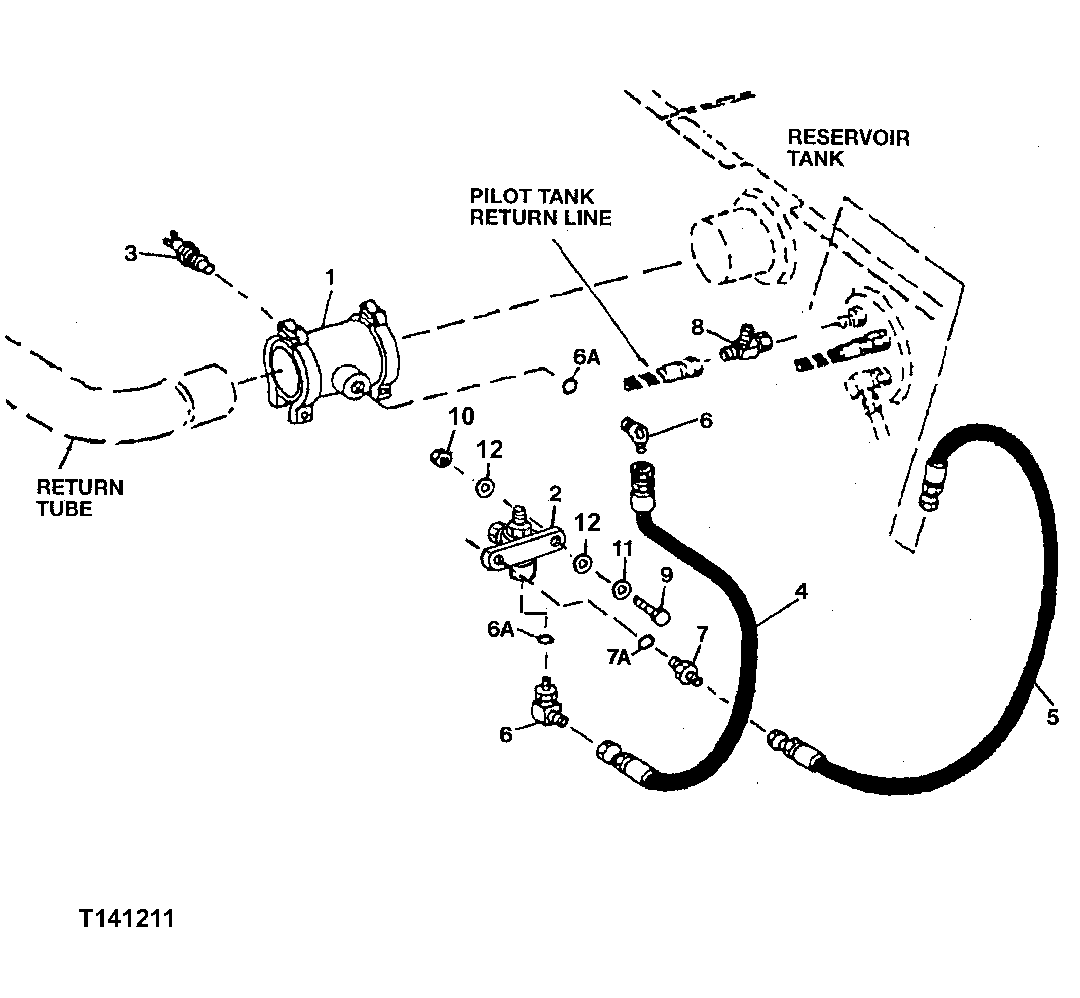

Запчасти John Deere 200LC, 330LC, 370 126 - Hydraulic Filter Restriction Indicator 3360 HYDRAULIC SYSTEM

1

AT134347

Coupling

1шт.

2

AT131436

Pressure Switch

1шт.

3

AT131437

Switch

1шт.

4

DH400522

Hydraulic Hose

SUB FOR FFSB103184

1шт.

5

Hydraulic Hose

NLA

1шт.

DH400520

Hydraulic Hose

SUB FOR FFSB103507

1шт.

6

AT35121

Elbow Fitting

2шт.

6A

T70177

O-Ring

11.887 X 1.981 mm

1шт.

7

H75414

Adapter Fitting

1шт.

7A

T70177

O-Ring

11.887 X 1.981 mm

1шт.

8

AE45056

Tee Fitting

1шт.

4200466

Adapter Fitting

SUB FOR TH108320, STRAIGHT FITTING - NOT ILLUSTRATED

1шт.

9

19M7933

Cap Screw

M6 X 25 19M7286 NLA

2шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

19M7006

Cap Screw

M12 X 45

2шт.

10

14M7303

Flange Nut

M6

2шт.

11

12M7006

Lock Washer

6 mm

2шт.

12

24M7054

Washer

6.400 X 12 X 1.600 mm

4шт.
