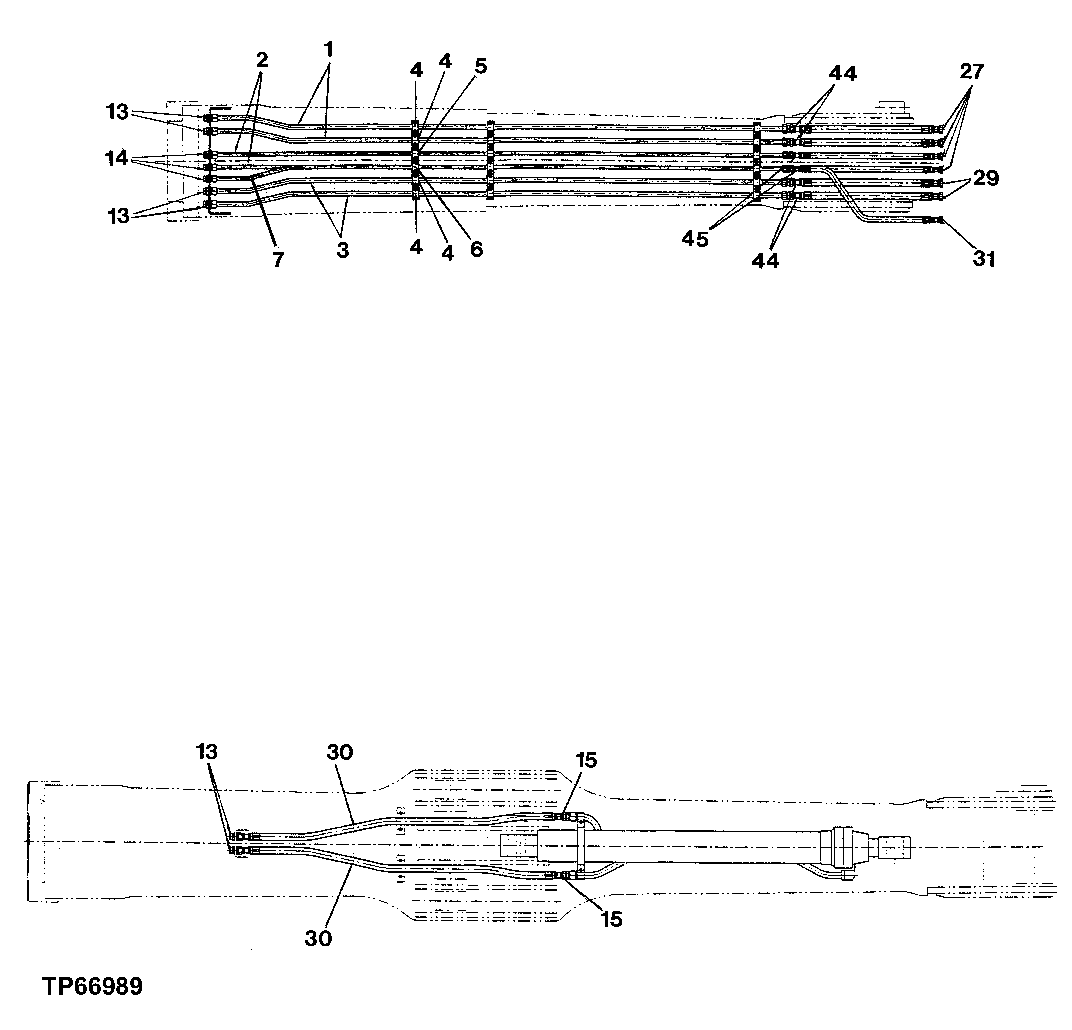

Запчасти John Deere 200LC, 330LC, 370 122 - PIPINGS FOR HEELER BOOM 3344 Boom

1

FFSB103187

Oil Line

2шт.

2

FFSB103188

Oil Line

2шт.

3

FFSB103190

Oil Line

2шт.

4

FFSB100112

Half Clamp

32шт.

19H1726

Cap Screw

3/8" X 2-1/4"

32шт.

FFSB100114

Reinforcement

16шт.

FFSB100115

Lock Nut

32шт.

5

FFSB100113

Half Clamp

8шт.

19H1726

Cap Screw

3/8" X 2-1/4"

4шт.

FFSB100114

Reinforcement

6шт.

FFSB100115

Lock Nut

8шт.

6

FFSB100113

Half Clamp

8шт.

19H3598

Cap Screw

3/8" X 4-3/4" (SUB FOR FFSB103458 OR 19H2054)

8шт.

FFSB100114

Reinforcement

6шт.

FFSB100115

Lock Nut

8шт.

7

FFSB103189

Oil Line

1шт.

13

T78715

Nut

36.525 mm

6шт.

38H1287

Adapter Fitting

6шт.

T76938

O-Ring

23.520 X 1.780 mm

12шт.

14

T78707

Nut

30.175 mm

6шт.

38H1276

Adapter Fitting

6шт.

T77858

O-Ring

18.771 X 1.778 mm

12шт.

15

X16F5OLO-S

Adapter Fitting

(SUB FOR FFSB102146)

2шт.

27

FFSB103296

Hydraulic Hose

4шт.

29

FFSB103298

Hydraulic Hose

2шт.

30

FFSB103295

Hydraulic Hose

2шт.

31

FFSB103297

Hydraulic Hose

1шт.

44

X16-12HLO-S

Union Fitting

(SUB FOR FFSB102143)

4шт.

45

38H1272

Union Fitting

3шт.

T77858

O-Ring

18.771 X 1.778 mm

6шт.
