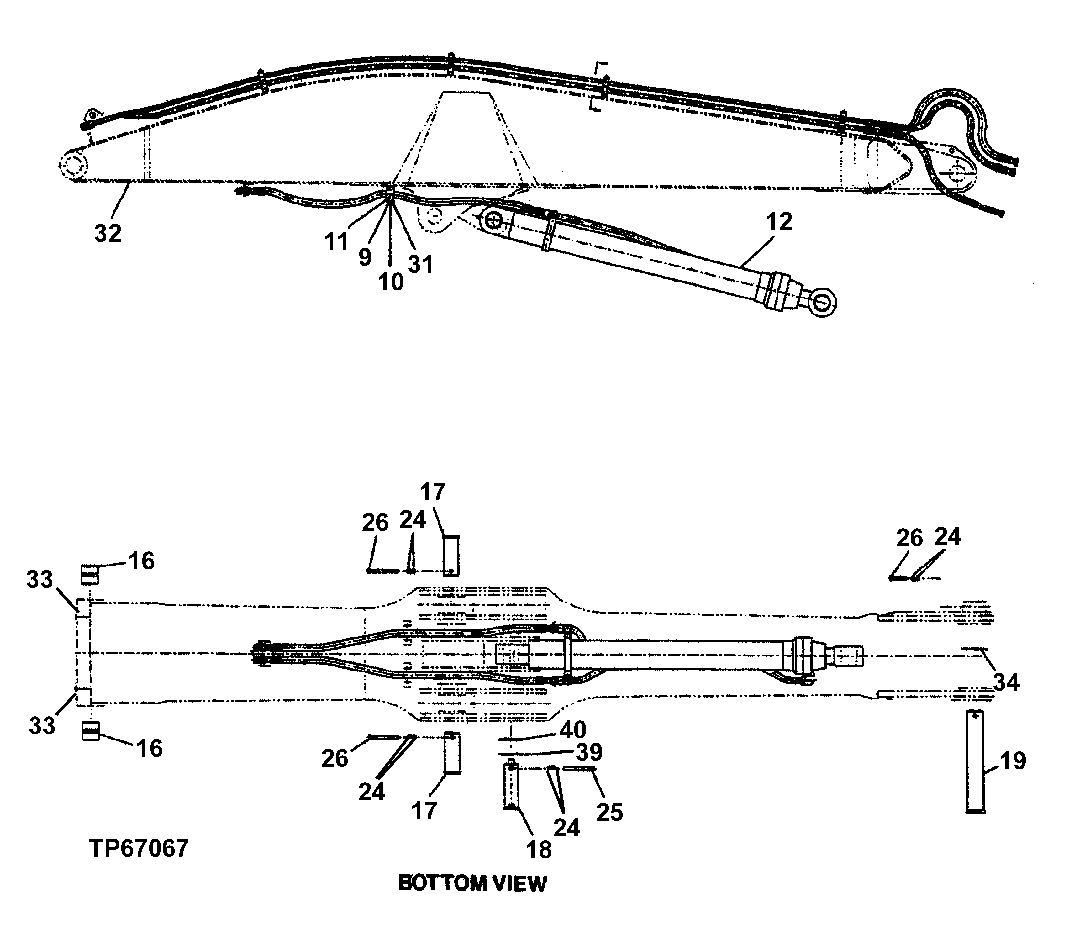

Запчасти John Deere 200LC, 330LC, 370 121 - HEELER BOOM 3344 Boom

9

FFSB100116

Reinforcement

2шт.

10

19H1828

Cap Screw

7/16" X 4"

2шт.

11

FFSB100118

Half Clamp

4шт.

12

Hydraulic Cylinder

(ARM) (SEE SEPARATE PAGE FOR DET AIL) ( FFSB110794, 9218636 NLA)

1шт.

Hydraulic Cylinder

(ARM) (SEE SEPARATE PAGE FO R DETAIL) ( FFSB104900 NLA)

1шт.

4641545

Hydraulic Cylinder

(SUB FOR FFSB115435)(ARM) (S EE SEPARATE PAGE FOR DETAIL)

1шт.

16

Bushing

(FFSB102564 NO LONGER AVAILAB LE) (SUB 4402460 AND 4443880)

2шт.

17

FF105529

Pin

(SUB FOR FFSB102813 OR FFSB107285)

2шт.

18

FFSB107286

Pin

(SUB FOR FFSB102814)

1шт.

19

FF105532

Pin

(SUB FOR FFSB102816 OR FFSB107288)

1шт.

24

14M7277

Nut

M20

8шт.

25

19M8503

Cap Screw

M20 X 160

1шт.

26

19M8100

Cap Screw

M20 X 180

3шт.

31

FFSB100117

Half Clamp

2шт.

32

FFSB102994

Grapple Boom

(CONVENIENCE ASSEMBLY)

1шт.

33

JD7769

Lubrication Fitting

(SUB FOR FFSB104342)

2шт.

34

4144513

Washer

(SUB FOR TH102423)(1.2 MM)

1шт.

39

TH106308

Washer

(2.3 MM)

1шт.

40

TH106307

Washer

(1.2 MM)

1шт.
