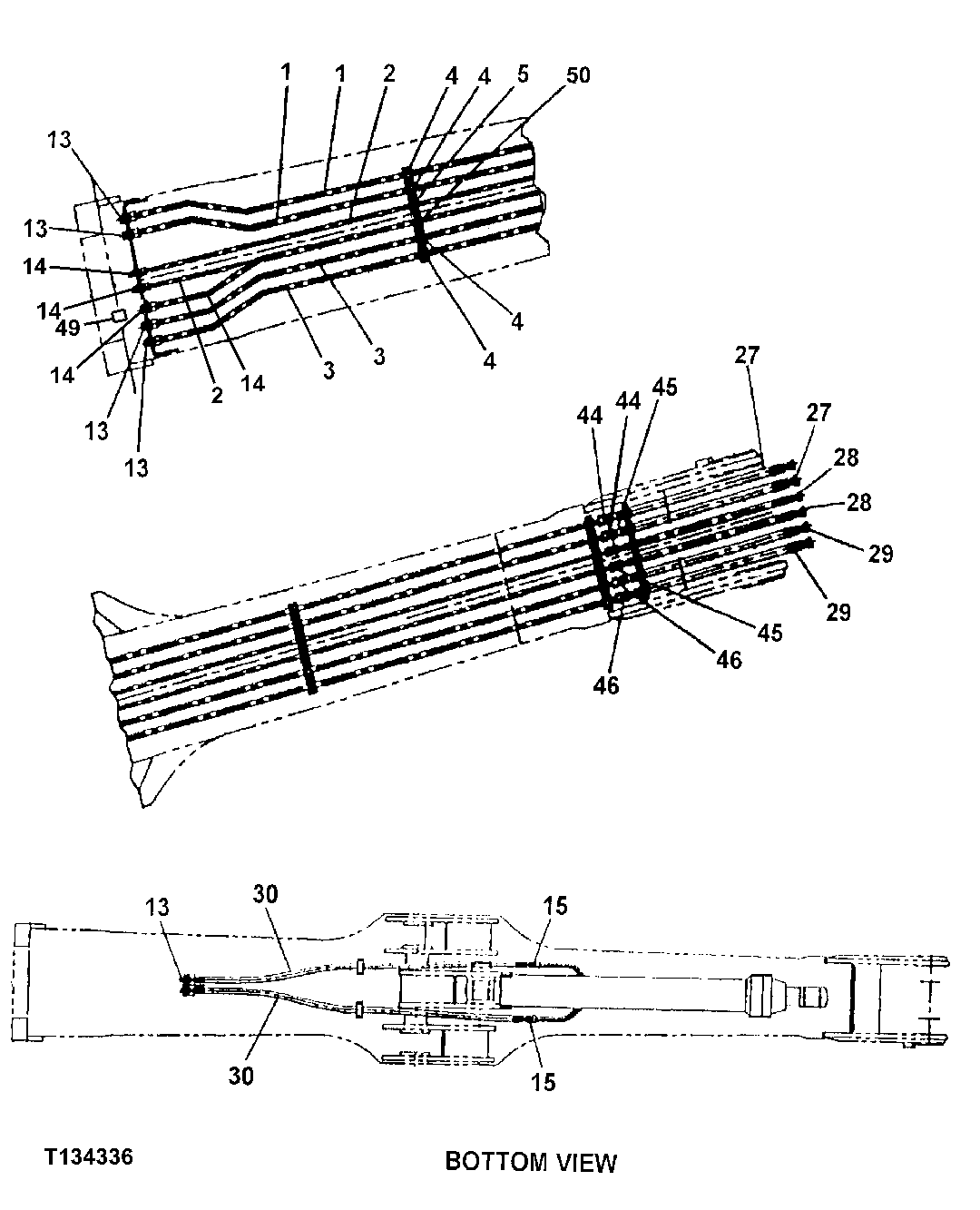

Запчасти John Deere 200LC, 330LC, 370 120 - PIPINGS FOR HEELER BOOM 3344 Boom

1

FFSB100109

Oil Line

(SUB FOR FFSB100109)

2шт.

2

FFSB100110

Oil Line

(SUB FOR FFSB100110)

2шт.

3

FFSB100111

Oil Line

(SUB FOR FFSB100111)

2шт.

4

FFSB100112

Half Clamp

24шт.

19H1726

Cap Screw

3/8" X 2-1/4"

24шт.

FFSB100114

Reinforcement

12шт.

FFSB100115

Lock Nut

24шт.

5

FFSB100113

Half Clamp

12шт.

19H1726

Cap Screw

3/8" X 2-1/4"

12шт.

FFSB100114

Reinforcement

6шт.

FFSB100115

Lock Nut

12шт.

13

38H1287

Adapter Fitting

6шт.

T76938

O-Ring

23.520 X 1.780 mm

12шт.

T78715

Nut

36.525 mm

6шт.

14

38H1276

Adapter Fitting

3шт.

T77858

O-Ring

18.771 X 1.778 mm

6шт.

T78707

Nut

30.175 mm

3шт.

15

38H1216

Adapter Fitting

2шт.

T76938

O-Ring

23.520 X 1.780 mm

2шт.

27

FFSB100120

Hydraulic Hose

2шт.

28

FFSB100121

Hydraulic Hose

2шт.

29

FFSB100122

Hydraulic Hose

1шт.

30

FFSB100123

Hydraulic Hose

2шт.

44

38H1281

Union Fitting

2шт.

T76938

O-Ring

23.520 X 1.780 mm

4шт.

45

38H1272

Union Fitting

3шт.

T77858

O-Ring

18.771 X 1.778 mm

6шт.

46

X16-12HLO-S

Union Fitting

(SUB FOR FFSB102143)

2шт.

48

FFSB103765

Hydraulic Hose

1шт.

49

FFSB103772

Spacer

1шт.

50

19H2054

Cap Screw

3/8" X 4-3/4"

8шт.

FFSB100113

Half Clamp

6шт.

FFSB100114

Reinforcement

16шт.

FFSB100115

Lock Nut

24шт.
