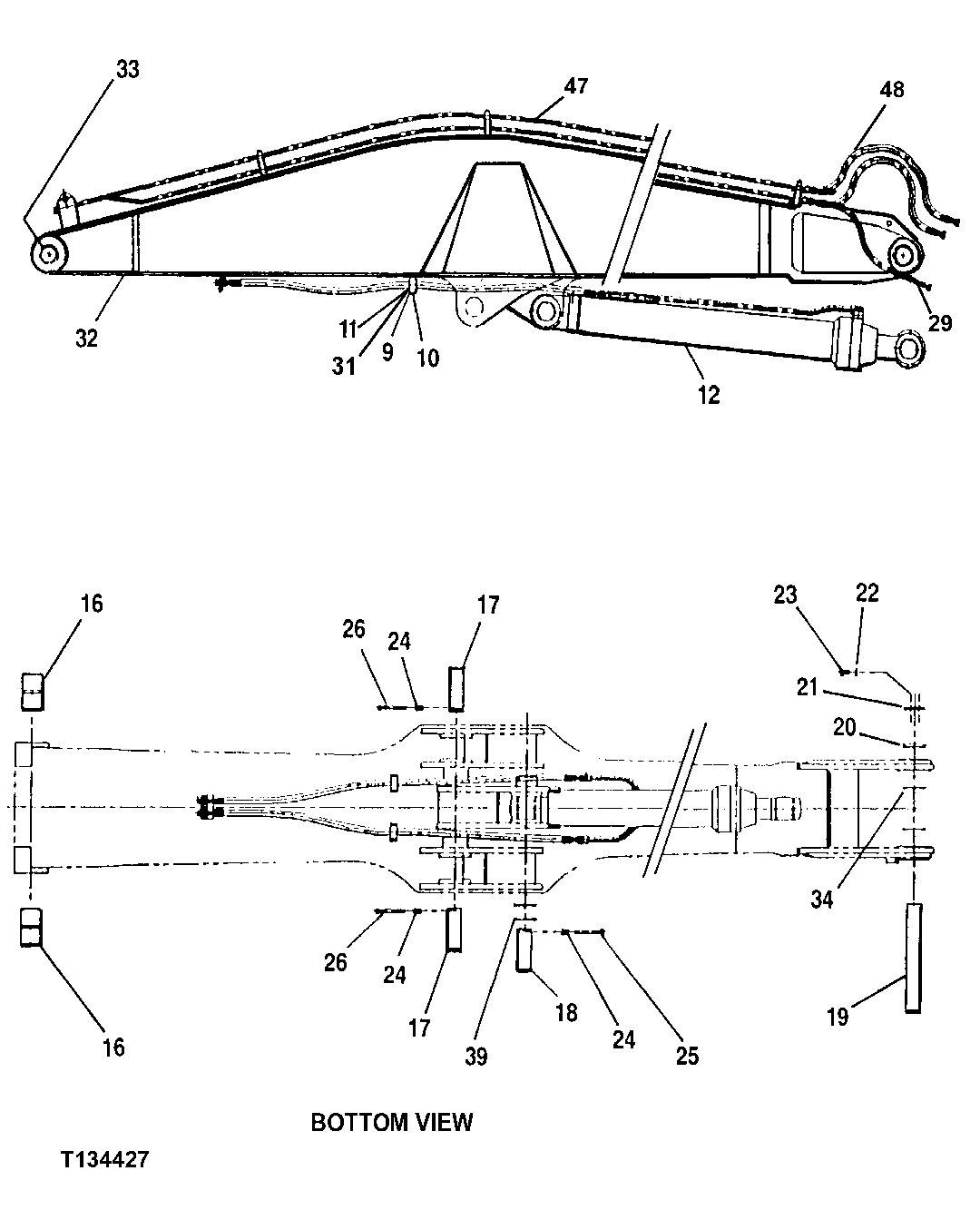

Запчасти John Deere 200LC, 330LC, 370 119 - HEELER BOOM 3344 Boom

9

FFSB100116

Reinforcement

2шт.

10

19H1828

Cap Screw

7/16" X 4"

4шт.

11

FFSB100118

Half Clamp

4шт.

12

Cylinder

(ARM) (NOT AVAILABLE FOR SERVICE) (SEE ARM CYLINDER PAGE FOR DETAIL)

1шт.

16

Bushing

(FFSB100035 NO LONGER AVAILAB LE) (SUB 4443884 AND 4381855)

2шт.

17

FFSB107220

Pin Fastener

(SUB FOR FFSB100036)

2шт.

18

FFSB107258

Pin

(SUB FOR FFSB100124)(FOR USE WITH CYLINDER MOUNTED GUARD)

1шт.

FFSB107207

Pin Fastener

(SUB FOR FFSB100037)(FOR U SE WITH BOOM MOUNTED GUARD)

1шт.

19

AT132098

Pin

1шт.

20

FFSB100039

Spacer

1шт.

21

FFSB100040

Stop

1шт.

22

12M7070

Lock Washer

20 mm

3шт.

23

19M7597

Cap Screw

M20 X 50 (SUB FOR J912050)

3шт.

24

14M7277

Nut

M20

6шт.

25

19M8100

Cap Screw

M20 X 180

1шт.

26

19M7645

Screw

M20 X 200

2шт.

29

FFSB100122

Hydraulic Hose

1шт.

31

FFSB100117

Half Clamp

2шт.

32

FFSB100125

Grapple Boom

1шт.

33

JD7774

Lubrication Fitting

65° X 29.464 mm Long

2шт.

34

4232239R

Shim

(SUB FOR AT131939 ) (SUB FOR AT131939 OR 4232239)

ARшт.

39

4134372

Washer

111 X 190 X 1 mm (SUB FOR AT202084)

ARшт.

47

Oil Line

( FFSB103769 NO LONGER AVAILABLE FOR SERVICE)

1шт.

48

FFSB103765

Hydraulic Hose

1шт.
