116 - HEELER ARM PIPINGS

Запчасти John Deere 200LC, 330LC, 370 116 - HEELER ARM PIPINGS 3340 BACKHOE AND EXCAVATOR FRAMES

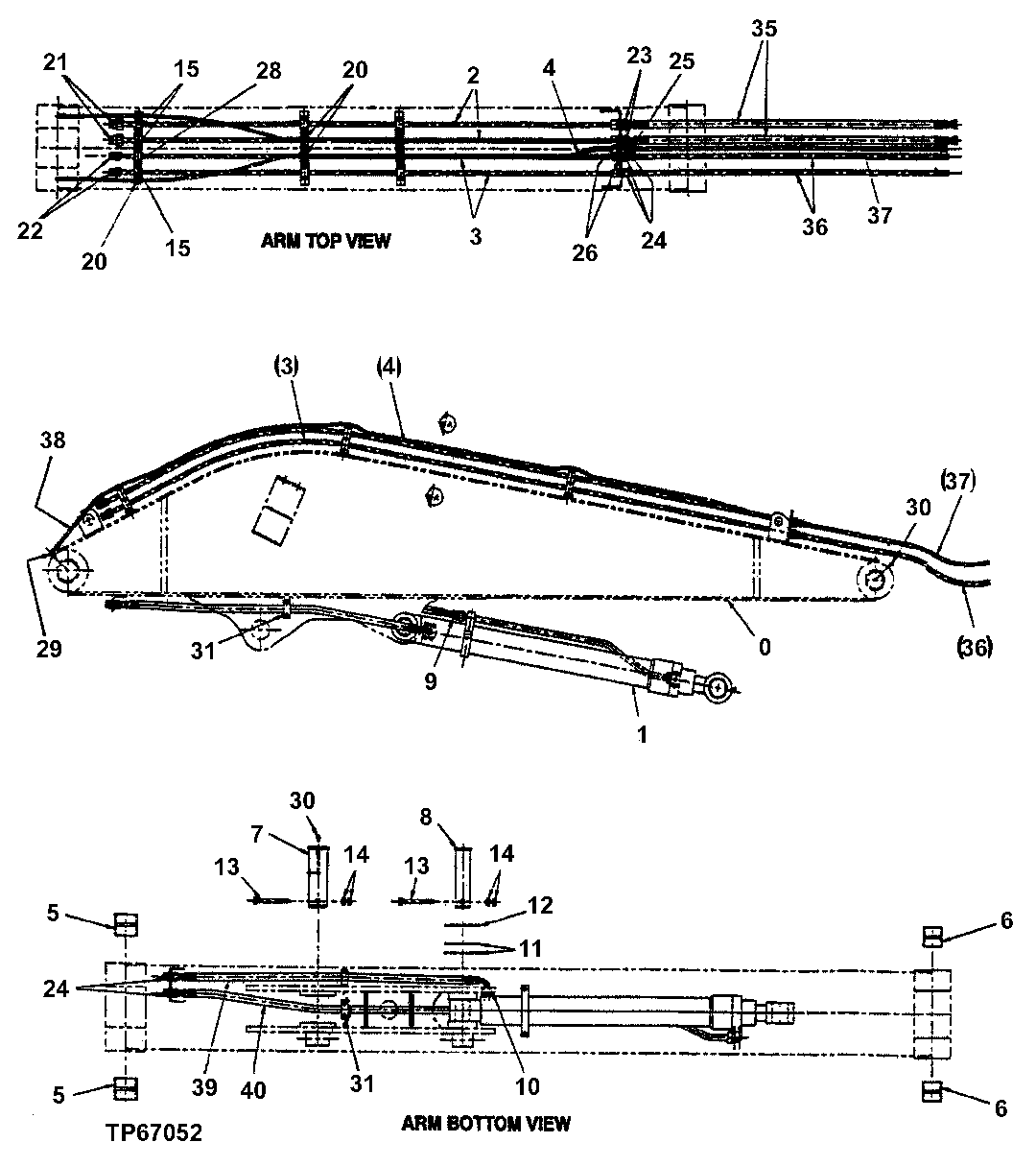

Схема запчастей John Deere 200LC, 330LC, 370 - 116 - HEELER ARM PIPINGS 3340 BACKHOE AND EXCAVATOR FRAMES
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

FFSB102995

Arm

(CONVENIENCE ASSEMBLY)

1шт.

1

Cylinder

1шт.

2

FFSB103075

Oil Line

2шт.

3

FFSB103076

Oil Line

2шт.

4

FFSB103077

Oil Line

1шт.

5

4443885

Bushing

(SUB FOR FFSB100055)

2шт.

6

4352398

Bushing

(SUB FOR FFSB102565)

2шт.

7

FFSB107287

Pin Fastener

(SUB FOR FFSB102815)

1шт.

FFSB105730

Cylinder

1шт.

8

FF105533

Pin

(SUB FOR FFSB102817 AND FFSB107289)

1шт.

9

X16-12HLO-S

Union Fitting

(SUB FOR FFSB103487, FFSB102143)

1шт.

10

T107446

Flange Fitting

2шт.

T59014

O-Ring

24.994 X 3.531 mm

1шт.

19M7943

Cap Screw

M12 X 90

4шт.

11

4366692R

Thrust Washer

(SUB FOR TH105593 OR 4366692)

2шт.

12

4367410R

Thrust Washer

(SUB FOR TH105592 OR 4367410)

1шт.

13

19M8503

Cap Screw

M20 X 160

2шт.

14

14M7277

Nut

M20

4шт.

15

19H1726

Cap Screw

3/8" X 2-1/4"

12шт.

FFSB100114

Reinforcement

6шт.

FFSB100115

Lock Nut

12шт.

FFSB100112

Half Clamp

12шт.

20

H75541

Clamp

(SUB FOR FFSB102223)

6шт.

21

38H1281

Union Fitting

2шт.

T76938

O-Ring

23.520 X 1.780 mm

4шт.

22

38H1272

Union Fitting

2шт.

T77858

O-Ring

18.771 X 1.778 mm

4шт.

23

38H1287

Adapter Fitting

2шт.

T76938

O-Ring

23.520 X 1.780 mm

2шт.

T78715

Nut

36.525 mm

2шт.

24

38H1276

Adapter Fitting

5шт.

T77858

O-Ring

18.771 X 1.778 mm

5шт.

T78707

Nut

30.175 mm

5шт.

25

T77613

O-Ring

9.250 X 1.780 mm (SUB FOR FF SB103489, ALONG WITH 38H1356)

1шт.

38H1356

Tube Nut

1шт.

26

X4WGTX-WLN-S

Adapter Fitting

(SUB FOR FFSB102226)

2шт.

TH100074

Lubrication Fitting

2шт.

28

19H3598

Cap Screw

3/8" X 4-3/4" (SUB FOR FFSB103458 OR 19H2054)

6шт.

FFSB100114

Reinforcement

6шт.

FFSB100115

Lock Nut

12шт.

FFSB100113

Half Clamp

18шт.

29

T107303

Elbow Fitting

2шт.

30

JD7769

Lubrication Fitting

(SUB FOR FFSB104342)

3шт.

31

19H1944

Cap Screw

3/8" X 2-3/4"

4шт.

FFSB102050

Reinforcement

2шт.

FFSB102051

Half Clamp

4шт.

FFSB102052

Half Clamp

2шт.

35

FFSB103301

Hydraulic Hose

(GRAPPLE OPEN-CLOSE)

2шт.

36

FFSB103302

Hydraulic Hose

(GRAPPLE ROTATION)

2шт.

37

FFSB103303

Hydraulic Hose

(CASE DRAIN)

1шт.

38

FFSB103304

Hydraulic Hose

2шт.

39

FFSB103300

Hydraulic Hose

1шт.

40

FFSB103299

Hydraulic Hose

1шт.
