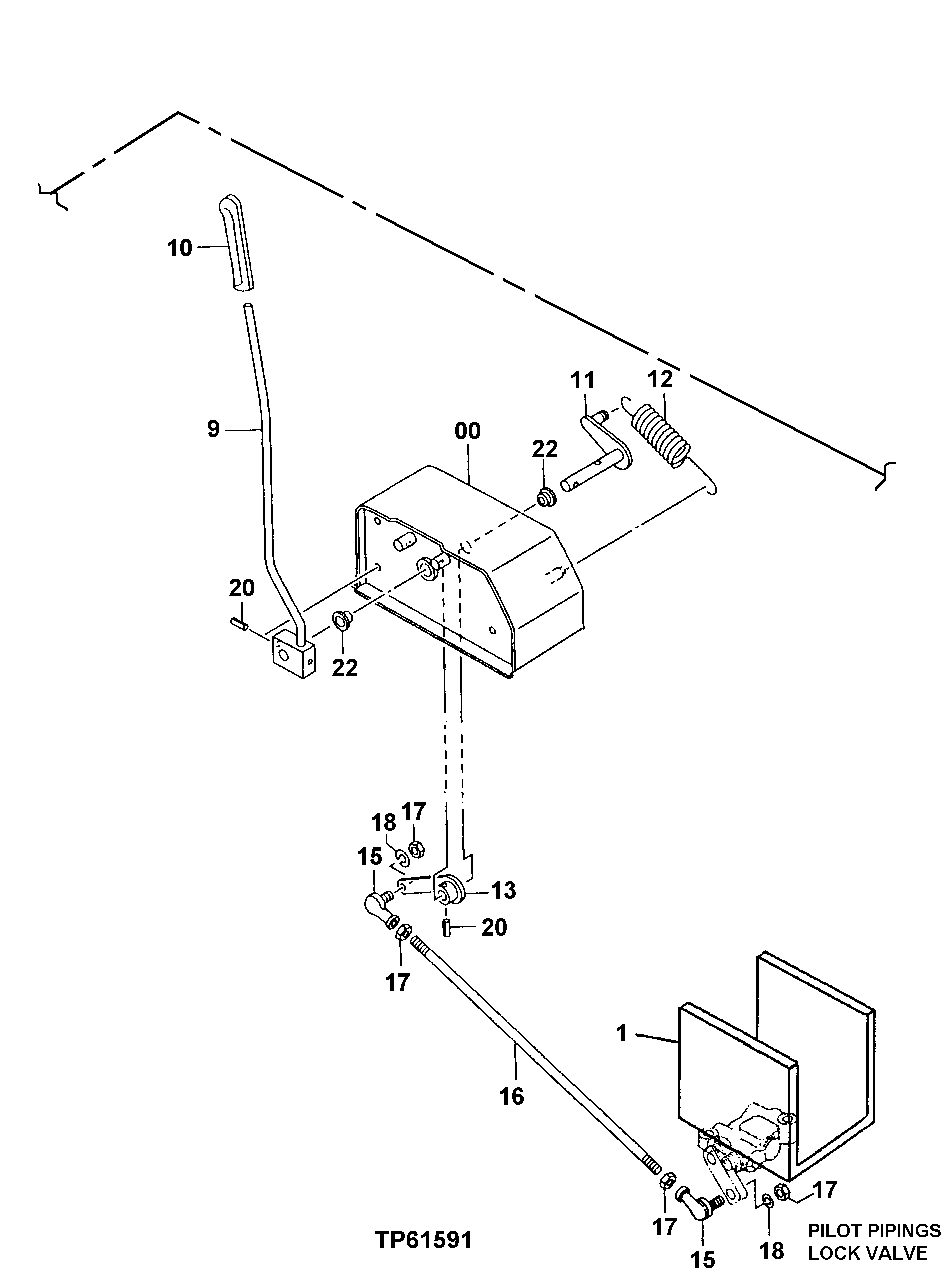

Запчасти John Deere 200LC, 330LC, 370 111 - REAR ENTRY CAB LOCK LEVER 3315 Control Linkage

0

FFSB102278

Box

1шт.

1

FFSB102277

Bracket

1шт.

9

FFSB102276

Lever

1шт.

10

3051611

Grip

(SUB FOR AT154122)

1шт.

11

8060886

Link

(SUB FOR AT214358)

1шт.

12

4189184

Extension Spring

(SUB FOR TH108392)

1шт.

13

9743595

Lever

(SUB FOR AT177400)

1шт.

15

T110021

Ball Joint Socket

2шт.

16

4259591

Rod

(SUB FOR AT154262)

1шт.

17

14M7273

Nut

M8

4шт.

18

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

20

34M7225

Spring Pin

8 X 28 mm (SUB FOR 34M6402)

2шт.

22

4341810

Bushing

16.100 X 20.100 X 12 mm (SUB FOR AT177401)

2шт.
