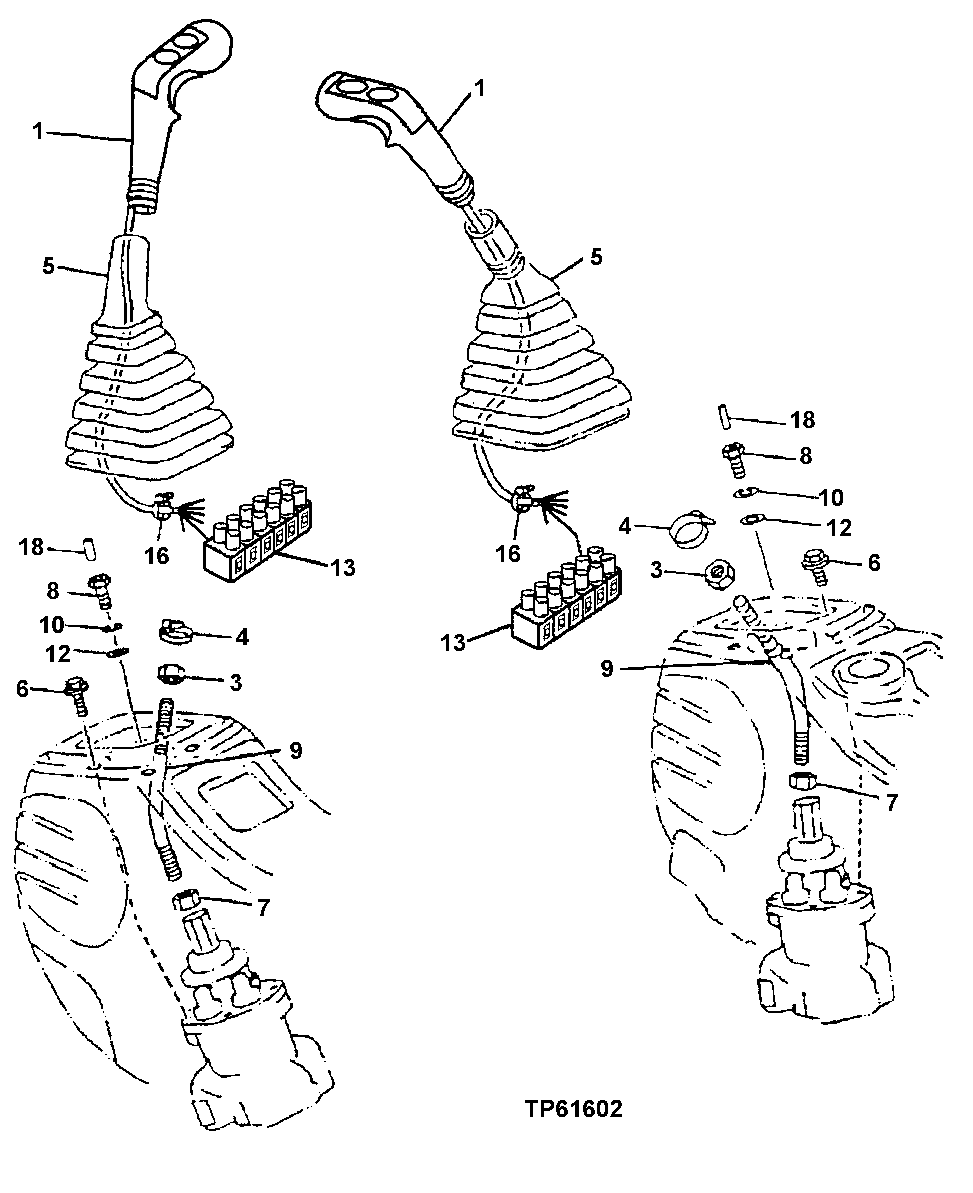

Запчасти John Deere 200LC, 330LC, 370 107 - Control Lever (Grip Complete) (2 Function Grapple) 3315 Control Linkage

1

FFSB102314

Control Lever

(SEE SEPARATE PAGE FOR DETAIL)

2шт.

3

14M7357

Nut

M12

2шт.

4

H77698

Tie Band

2шт.

5

2038578

Boot

(SUB FOR AT213745)

2шт.

6

19M7407

Cap Screw

M8 X 25

6шт.

7

14M7141

Nut

M14

2шт.

8

4342802

Screw

(SUB FOR AT177372)

2шт.

9

4334707

Lever

(SUB FOR AT177386)

2шт.

10

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

12

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

13

FFSB102629

Elec. Connector Terminal

2шт.

16

H77698

Tie Band

2шт.

18

34M7086

Spring Pin

3 X 32 mm

2шт.
