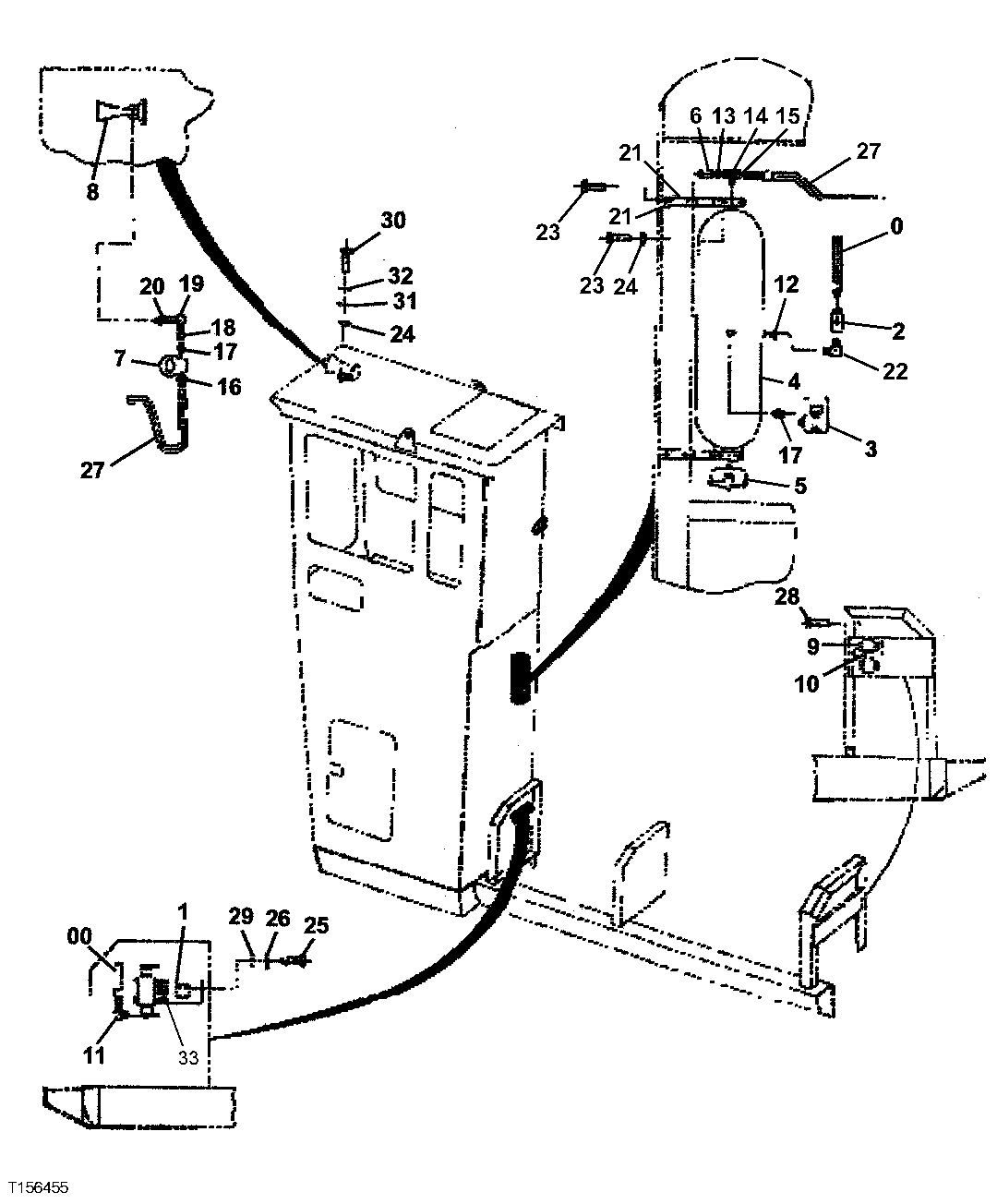

Запчасти John Deere 200LC, 330LC, 370 105 - Air Horn (For Units With 72 Inch Riser) (330LC -051013) (370 -051004) 2200 REMOVAL AND INSTALLATION

0

FFSB102142

Hydraulic Hose

(AIR)

1шт.

1

AT116441

Compressor

1шт.

2

FFSB102130

Check Valve

1шт.

3

FFSB102131

Pressure Switch

1шт.

4

FFSB102132

Tank

(AIR)

1шт.

5

FFSB102133

Drain Valve

(AUTO-DRAIN)

1шт.

6

FFSB102134

Pressure Relief Valve

(SAFETY)

1шт.

7

FFSB102135

Solenoid Valve

(AIR SOLENOID)

1шт.

8

FFSB102136

Horn

(AIR)

1шт.

9

FFSB102137

Relay

1шт.

10

FFSB102138

Diode

1шт.

11

T28860

Elbow Fitting

1шт.

12

U45789

Adapter Fitting

9.525 mm

1шт.

13

W30823

Coupling

9.525 mm

1шт.

14

X3/8MMS-S

Tee Fitting

(SUB FOR FFSB102170)

1шт.

15

X6-6FTX-S

Adapter Fitting

(SUB FOR FFSB102171)

1шт.

16

X6FTX-S

Adapter Fitting

(SUB FOR FFSB102172)

1шт.

17

T79627

Threaded Nipple

9.525 mm

2шт.

18

FFSB102173

Adapter Fitting

1шт.

19

AR26708

Fitting

1шт.

20

N10524

Adapter Fitting

9.525 mm

1шт.

21

Bracket

( FFSB102139 NO LONGER AVAILABLE)

2шт.

22

R92423

Elbow Fitting

9.525 mm

1шт.

23

19M7167

Cap Screw

M10 X 25

8шт.

24

14M7274

Nut

M10

8шт.

25

19M7163

Cap Screw

M8 X 25

4шт.

26

24M7036

Washer

9 X 16 X 1.600 mm

4шт.

27

FFSB102141

Hydraulic Hose

1шт.

28

19M7640

Cap Screw

M5 X 12

2шт.

29

14M7273

Nut

M8

4шт.

30

19M7168

Cap Screw

M10 X 30

4шт.

31

24M7096

Washer

10.500 X 18 X 1.600 mm

4шт.

32

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

4шт.

33

FFSB109832

Filter

(FILTER ASSEMBLY)

1шт.

FFSB109807

Filter

1шт.
