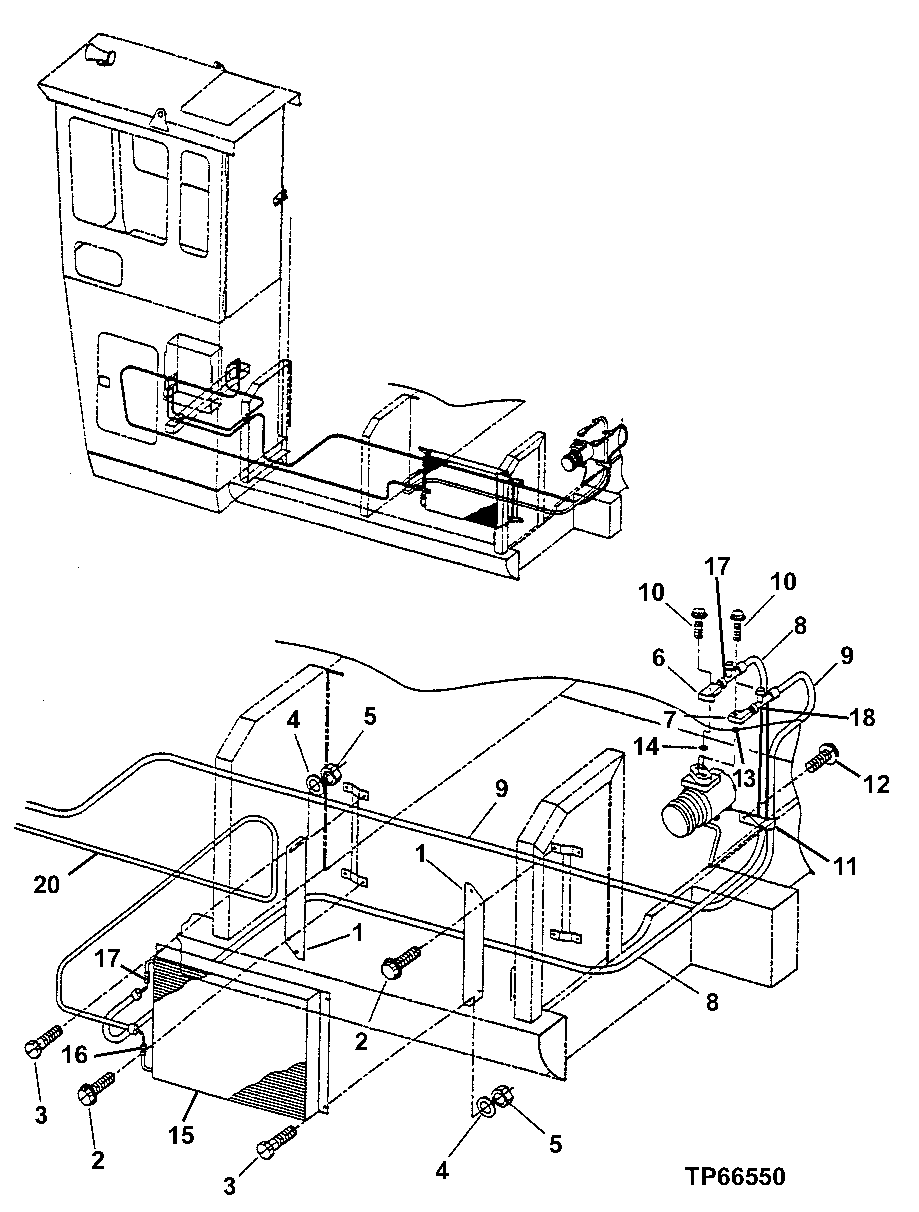

Запчасти John Deere 200LC, 330LC, 370 85 - REAR ENTRY CAB AIR CONDITIONER PIPING 1830 HEATING AND AIR CONDITIONING

1

FFSB102862

Bracket

2шт.

2

19M7881

Screw

M8 X 20

4шт.

12M7056

Lock Washer

8 mm SUB FOR 12M7065

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

3

19M7932

Cap Screw

M8 X 16 SUB FOR 19M7162

4шт.

4

12M7056

Lock Washer

8 mm SUB FOR 12M7065

4шт.

5

14M7273

Nut

M8

4шт.

6

FFSB103423

Fitting

1шт.

7

FFSB103422

Fitting

1шт.

8

FFSB102865

Refrigerant Hose

1шт.

9

Refrigerant Hose

NLA, 48 INCH REAR ENTRY CAB

1шт.

FFSB102858

Refrigerant Hose

72 INCH REAR ENTRY CAB

1шт.

10

19M7874

Cap Screw

M6 X 30

2шт.

12H302

Lock Washer

1/4"

2шт.

11

4190266

Clip

SUB FOR TH108793

1шт.

12

19M7938

Cap Screw

M10 X 20

1шт.

12M7066

Lock Washer

10 mm

1шт.

13

4622346

O-Ring

SUB FOR 4674883, AT180 995, 4350206 OR 4509180

1шт.

14

957366

O-Ring

SUB FOR AT188388 AND 4350207

1шт.

15

AT250944

Electrical Coil

SUB FOR FFSB103063

1шт.

16

R10093

O-Ring

SUB FOR FFSB103060

1шт.

17

R113050

O-Ring

SUB FOR FFSB102755

2шт.

18

811144800

O-Ring

SUB FOR FFSB103061

1шт.

20

FFSB102930

Refrigerant Hose

48 INCH REAR ENTRY CAB

1шт.

FFSB102856

Refrigerant Hose

72 INCH REAR ENTRY CAB

1шт.
