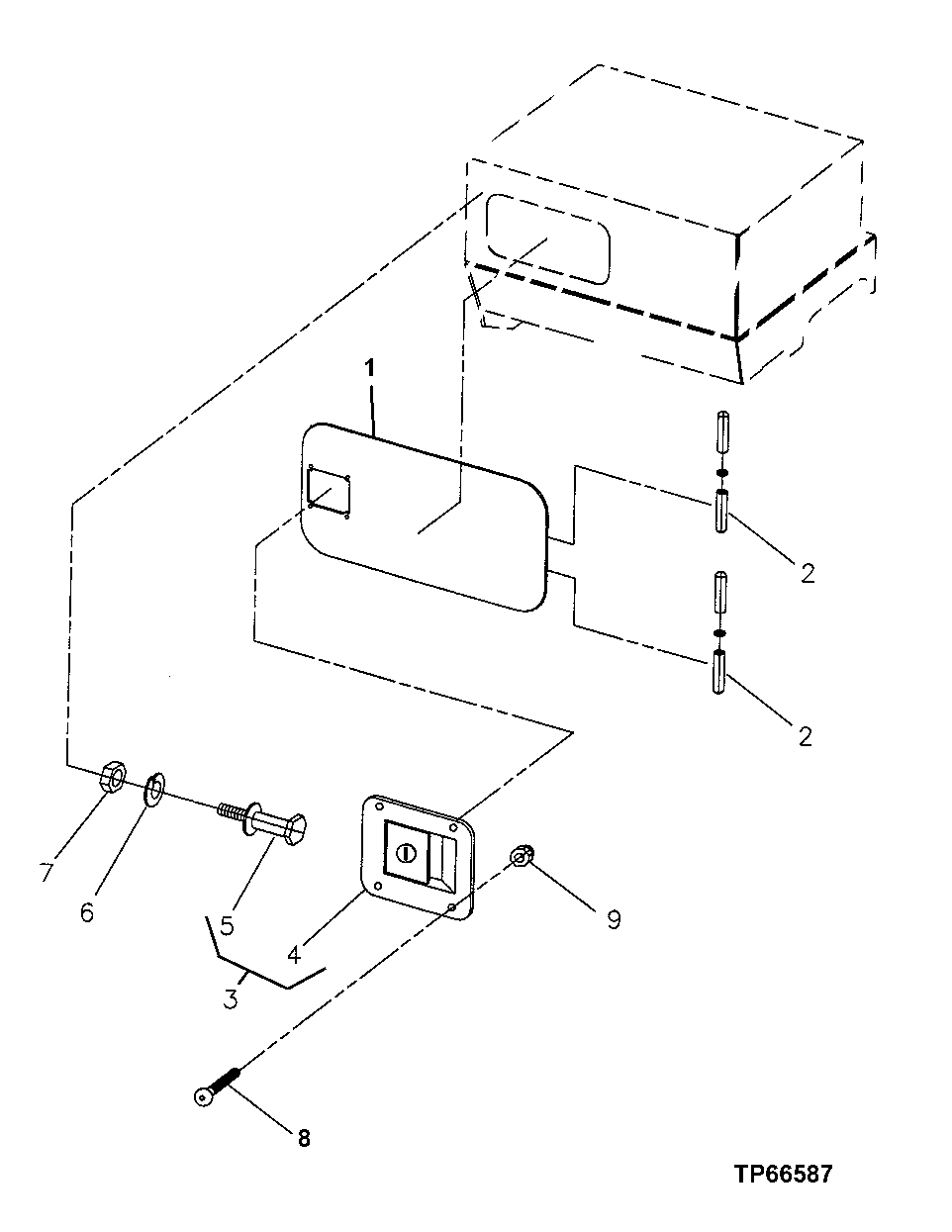

Запчасти John Deere 200LC, 330LC, 370 75 - FORESTRY 12 INCH CAB RISER SERVICE DOOR 1810 Operator Enclosure

1

FFSB103229

Door

1шт.

2

FFSB102016

Hinge

2шт.

3

Latch

( FFSB102295 NO LONGER AVAILABL E - SUB FFSB102296 AND T119386)

1шт.

4

FFSB102296

Latch

1шт.

5

T119386

Striker

(SUB FOR FFSB102297)

1шт.

6

12H11

Lock Washer

3/8"

1шт.

7

14H255

Nut

3/8"

1шт.

8

21H1148

Screw

0.190" X 3/4"

4шт.

9

12H370

Lock Washer

0.164"

4шт.

20

Cab

( FFSB103421 NO LONGER AVAILABLE) (NOT IL LUSTRATED) (CONVENIENCE ASSEMBLY) (FORESTRY CAB) (CONTAINS ALL ITEMS ON THIS PAGE - AD DITIONAL COMPONENTS LISTED ON SEPARATE PAGE S)

1шт.
