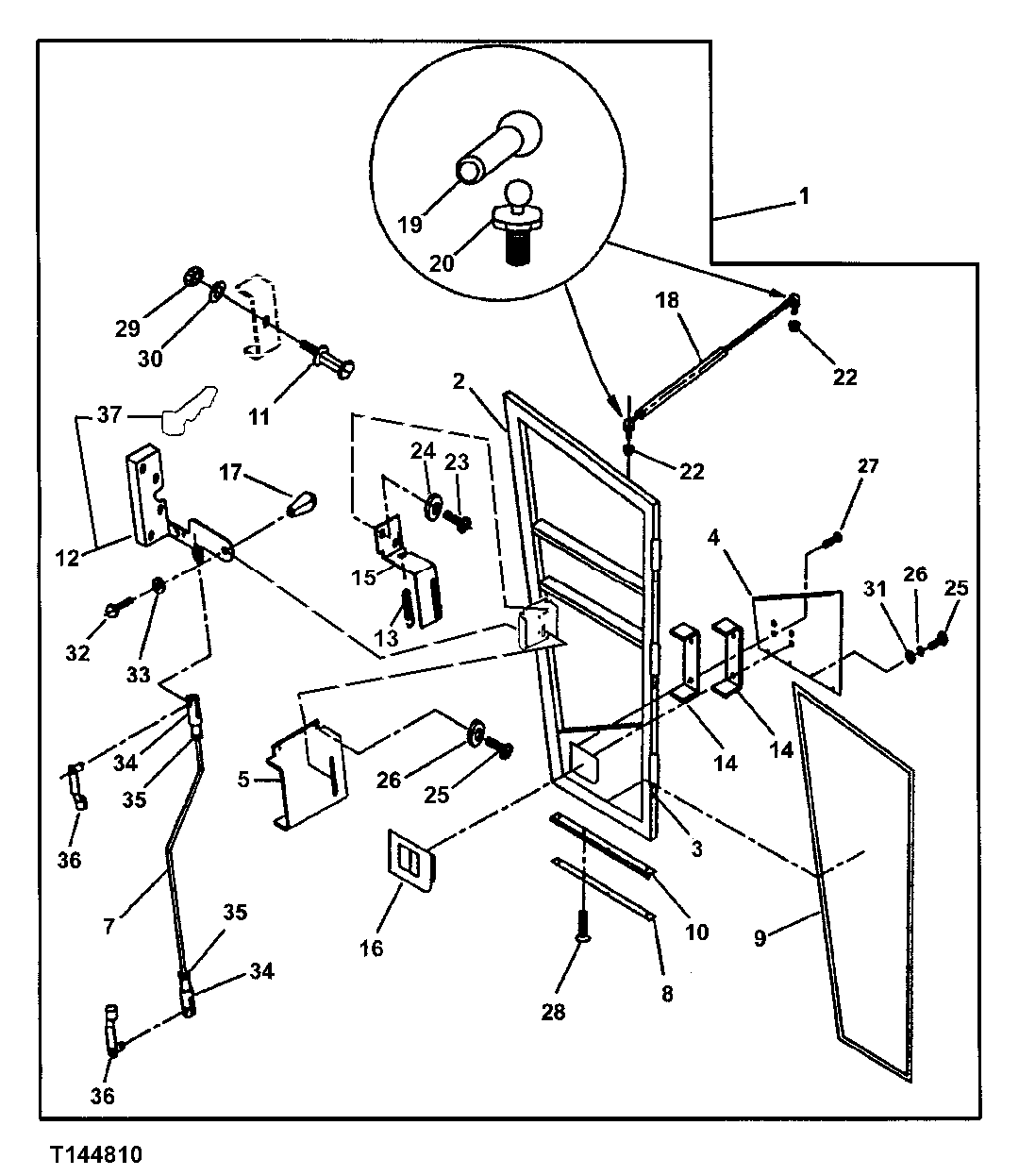

Запчасти John Deere 200LC, 330LC, 370 74 - FORESTRY CAB DOOR 1810 Operator Enclosure

1

Door

( FFSB102965 NO LONGER AVAIL ABLE) (CONVENIENCE ASSEMBLY)

1шт.

2

FFSB102840

Frame

1шт.

3

Hinge

FFSB107537 NLA, FFSB102870 NLA

3шт.

4

Cover

( FFSB102966 NOT AVAILABLE FOR SERVICE)

1шт.

5

FFSB102967

Cover

1шт.

7

FFSB102970

Rod

1шт.

8

FFSB102969

Weatherstrip

1шт.

9

Weatherstrip

( FFSB102977 NO LONGER AVAILABLE FOR SERVICE) (FURNISH FFSB107987 B ULK MATERIAL CUT TO 4340 MM LENGTH )

1шт.

10

FFSB102975

Weatherstrip

1шт.

11

AR91896

Striker

(SUB FOR FFSB102702)

1шт.

12

AT165224

Latch

(SUB FOR FFSB102704)

1шт.

13

T150146

Extension Spring

(SUB FOR FFSB102705)

1шт.

14

T131059

Bracket

(SUB FOR FFSB102706)

2шт.

15

T149220

Bracket

(SUB FOR FFSB102707)

1шт.

16

AT140572

Lock

(SUB FOR FFSB102701)

1шт.

17

M80721

Knob

1шт.

18

FFSB103186

Cylinder

1шт.

19

FFSB102234

Ball Joint Socket

2шт.

20

FFSB102235

Ball Stud

2шт.

22

N209131

Lock Nut

7.925 mm

2шт.

23

21H1032

Screw

1/4" X 1"

4шт.

24

12H302

Lock Washer

1/4"

4шт.

25

21M7396

Screw

M4 X 10

10шт.

26

12H315

Lock Washer

0.164" (SUB FOR 12M7063)

10шт.

27

21H1317

Screw

0.190" X 5/8"

4шт.

28

21M7249

Screw

M5 X 10

4шт.

29

14H813

Nut

7/16"

1шт.

30

24H1325

Washer

15/32" X 59/64" X 0.065"

1шт.

31

24M7117

Washer

4.300 X 9 X 0.800 mm

6шт.

32

19H1894

Cap Screw

3/8" X 3/4"

1шт.

33

12H304

Lock Washer

3/8"

1шт.

34

T150163

Yoke

2шт.

35

14H850

Nut

1/4"

2шт.

36

T131235

Pin

2шт.

37

AT195302

Key

(SUB FOR FFSB107833 ) (SUB FOR AT145929)

1шт.

50

Cab

( FFSB103421 NO LONGER AVAILABLE) (NOT IL LUSTRATED) (CONVENIENCE ASSEMBLY) (FORESTRY CAB) (CONTAINS ALL ITEMS ON THIS PAGE - AD DITIONAL COMPONENTS LISTED ON SEPARATE PAGE S)

1шт.
