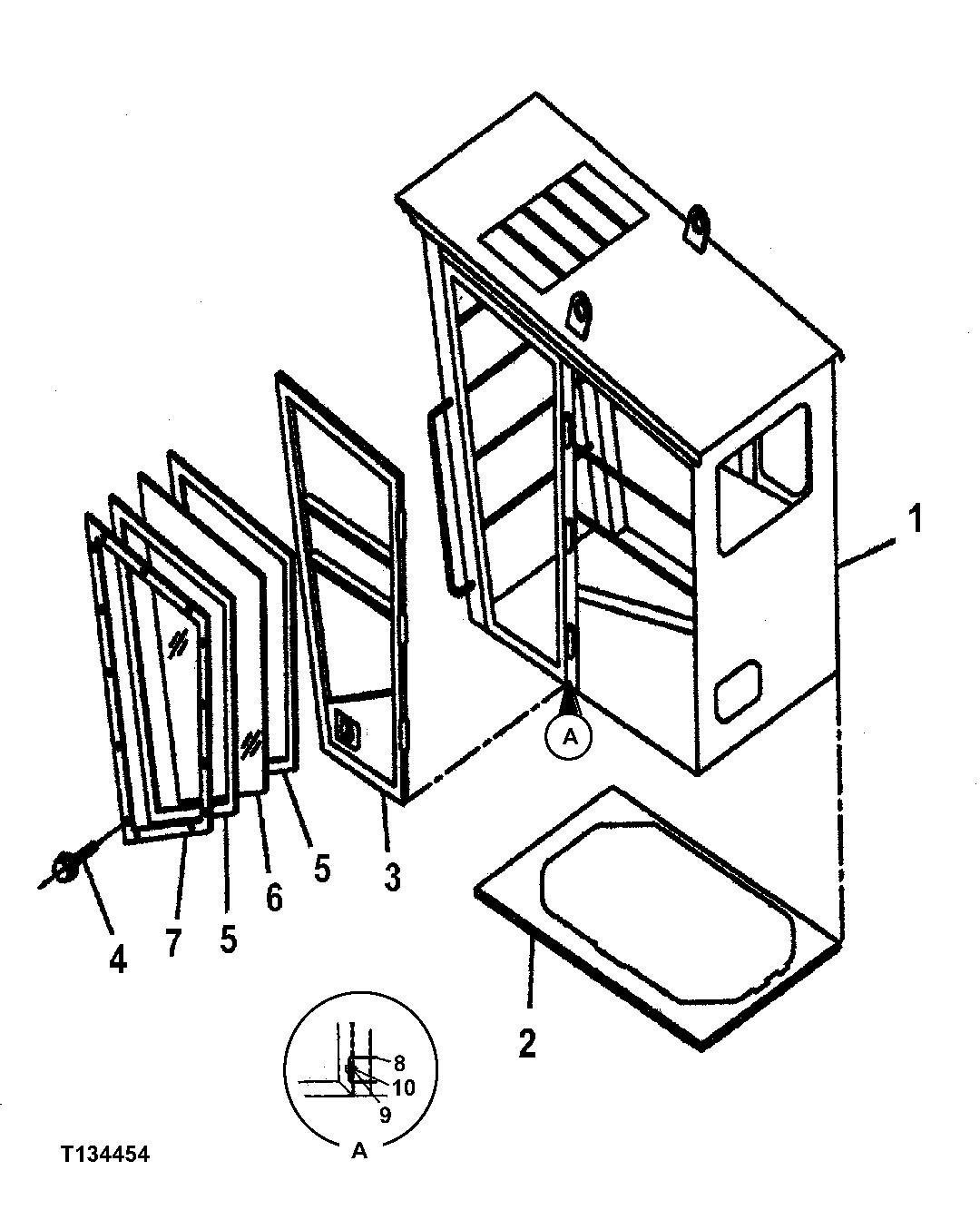

Запчасти John Deere 200LC, 330LC, 370 73 - FORESTRY CAB 1810 Operator Enclosure

1

FFSB102689

Cab

(CONVENIENCE ASSEMBLY)

1шт.

2

FFSB103052

Plate

1шт.

3

Door

( FFSB102965 NO LONGER AVAILABLE) (CONVE NIENCE ASSEMBLY) (DOES NOT INCLUDE WINDOW)

1шт.

4

19M7317

Screw

M5 X 30

14шт.

5

Seal

( FFSB102928 NO LONGER AVAILABLE - FUR NISH FFSB103444 - CUT TO LENGTH 5000MM ) ( FFSB103446 NO LONGER AVAILABLE - FU RNISH FFSB103444 - CUT TO LENGTH 8400M M)

2шт.

6

FFSB102943

Windowpane

1шт.

7

FFSB102941

Frame

1шт.

8

FFSB103054

Bumper

1шт.

9

24H1136

Washer

11/32" X 11/16" X 0.065"

1шт.

10

N209131

Lock Nut

7.925 mm

1шт.

20

Cab

( FFSB103421 NO LONGER AVAILABLE) (NOT IL LUSTRATED) (CONVENIENCE ASSEMBLY) (FORESTRY CAB) (CONTAINS ALL ITEMS ON THIS PAGE - AD DITIONAL COMPONENTS LISTED ON SEPARATE PAGE S)

1шт.
