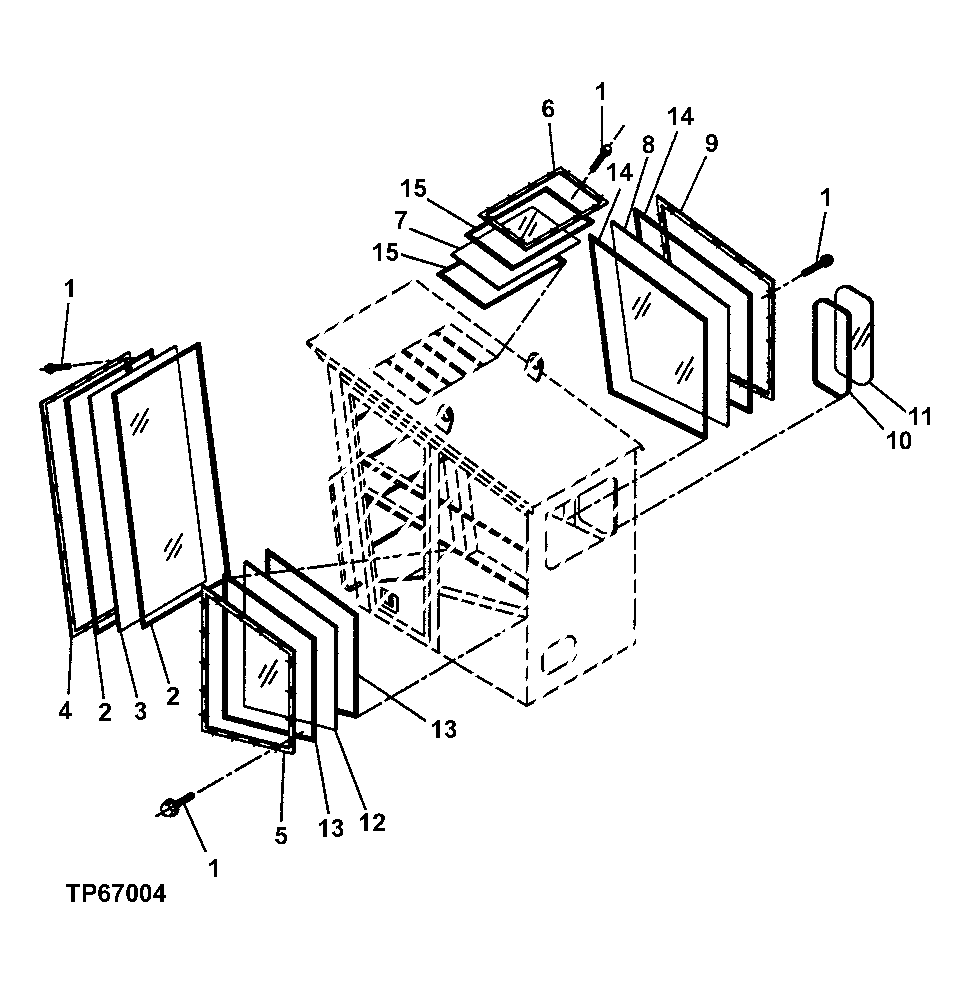

Запчасти John Deere 200LC, 330LC, 370 71 - FORESTRY CAB WINDOWS 1810 Operator Enclosure

1

19M7317

Screw

M5 X 30

55шт.

2

Seal

( FFSB102928 NO LONGER AVAILABLE - FURN ISH FFSB103444 - CUT TO LENGTH 5000MM) ( FFSB103447 NO LONGER AVAILABLE - FURNI SH FFSB103444 - CUT TO LENGTH 11800MM)

2шт.

3

FFSB107872

Windowpane

See Following Page For Detail

1шт.

4

FFSB102939

Frame

1шт.

5

FFSB102940

Frame

1шт.

6

FFSB102938

Frame

1шт.

7

FFSB102946

Window

(SUB FOR FFSB102942)

1шт.

8

FFSB102945

Windowpane

1шт.

9

FFSB102937

Frame

1шт.

10

FFSB103097

Weatherstrip

1шт.

11

FFSB102949

Windowpane

1шт.

12

FFSB102947

Windowpane

See Following Page For Detail

1шт.

13

Seal

( FFSB102928 NO LONGER AVAILABLE - FUR NISH FFSB103444 - CUT TO LENGTH 5000MM ) ( FFSB103448 NO LONGER AVAILABLE - FU RNISH FFSB103444 - CUT TO LENGTH 7700M M)

2шт.

14

Seal

( FFSB102928 NO LONGER AVAILABLE - FUR NISH FFSB103444 - CUT TO LENGTH 5000MM ) ( FFSB103449 NO LONGER AVAILABLE - FU RNISH FFSB103444 - CUT TO LENGTH 9000M M)

2шт.

15

Seal

( FFSB102928 NO LONGER AVAILABLE - FUR NISH FFSB103444 - CUT TO LENGTH 5000MM ) ( FFSB103450 NO LONGER AVAILABLE - FU RNISH FFSB103444 - CUT TO LENGTH 5600M M)

2шт.

20

Cab

( FFSB103421 NLA) Not Illustrated C onvenience Assembly Forestry Cab Cont ains All Items On This Page Additiona l Components Listed On Separate Pages

1шт.
