Запчасти John Deere 200LC, 330LC, 370 65 - REAR ENTRY CAB PARTS 1810 Operator Enclosure

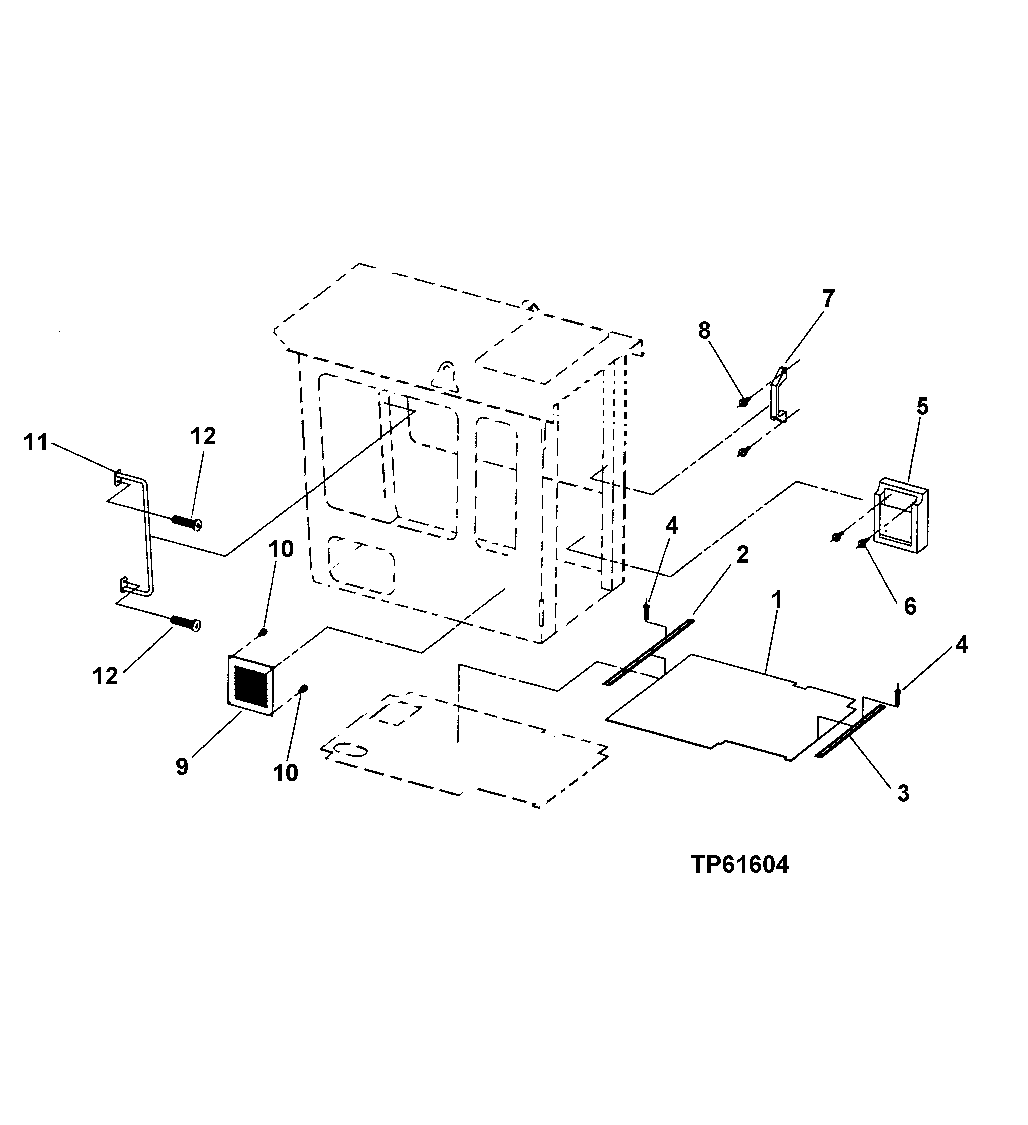

Схема запчастей John Deere 200LC, 330LC, 370 - 65 - REAR ENTRY CAB PARTS 1810 Operator Enclosure

Артикул

Название

Примечание

Количество

1

FFSB102309

Mat

1шт.

2

FFSB102310

Sealing Trim

1шт.

3

FF107281

Sealing Trim

(SUB FOR FFSB102327)

1шт.

4

FFSB102654

Cap Screw

14шт.

5

FFSB102311

Panel

1шт.

6

19H3807

Screw

1/4" X 3/4" ( FFSB102542 NO LONGE R AVAILABLE) (SUB FOR FFSB102641)

4шт.

7

4204579

Handle

(SUB FOR TH108661)

1шт.

8

12M7006

Lock Washer

6 mm

2шт.

19M8425

Cap Screw

M6 X 16

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

9

FFSB102312

Vent

1шт.

10

M63450

Screw

4шт.

11

FFSB102313

Handrail

1шт.

12

N199792

Cap Screw

( FFSB102655 NO LONGER AVAILABLE)

2шт.

30

Cab

( FFSB103419 NO LONGER AVAILABLE) ( NOT ILLUSTRATED) (CONVENIENCE ASSEMBL Y) (72 INCH REAR ENTRY CAB) (CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON SEPARATE PAGES)

1шт.

Cab

( FFSB103420 NO LONGER AVAILABLE) ( NOT ILLUSTRATED) (CONVENIENCE ASSEMBL Y) (48 INCH REAR ENTRY CAB) (CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON SEPARATE PAGES)

1шт.

Выбрано товаров: 16
