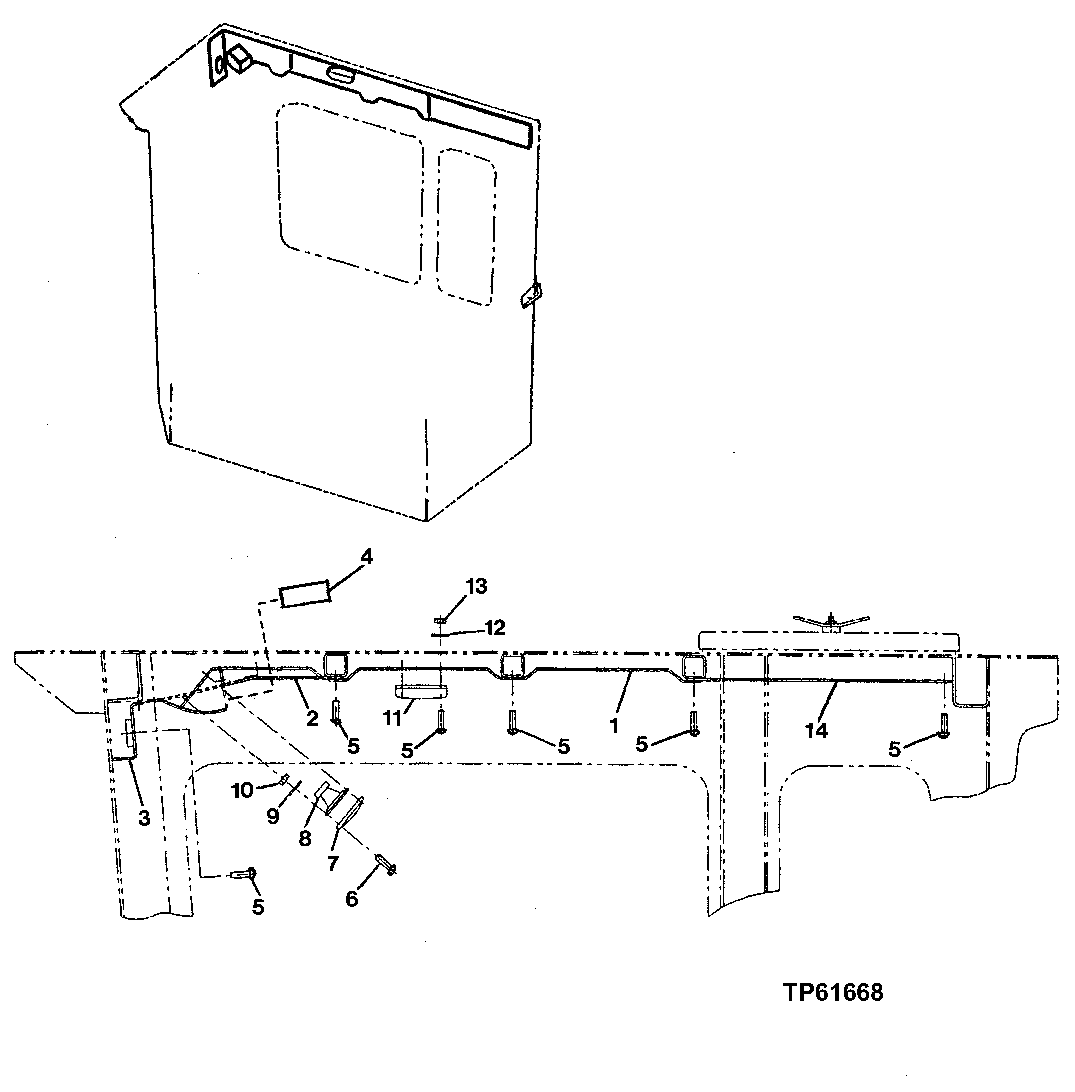

Запчасти John Deere 200LC, 330LC, 370 64 - REAR ENTRY CAB INSIDE RIGHT PANEL 1810 Operator Enclosure

1

FFSB102267

Panel

(CENTER)

1шт.

2

FFSB102266

Panel

(RADIO SPEAKER HOUSING)

1шт.

3

FFSB102265

Cover

(WIPER MOTOR)

1шт.

4

FFSB102264

Radio

1шт.

5

21H1148

Screw

0.190" X 3/4"

17шт.

6

4372608

Screw

(SUB FOR AT214316)

8шт.

7

4364504

Grille

(SUB FOR AT214017)(ONE EACH SIDE OF CAB)

2шт.

8

4361302

Speaker

(SUB FOR AT214007)(ONE EACH SIDE OF CAB)

2шт.

9

24M7146

Washer

4.300 X 12 X 1 mm

8шт.

10

14M7139

Nut

M4 (SUB FOR 14M7100)

8шт.

11

4187082

Lamp

(SUB FOR TH108567)(ONE EACH SIDE OF CAB)

2шт.

12

M68340

Washer

4.940 X 11.913 X 1.219 mm

4шт.

13

12H370

Lock Washer

0.164"

4шт.

14

FFSB102271

Panel

1шт.

30

Cab

( FFSB103419 NO LONGER AVAILABLE) ( NOT ILLUSTRATED) (CONVENIENCE ASSEMBL Y) (72 INCH REAR ENTRY CAB) (CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON SEPARATE PAGES)

1шт.

Cab

( FFSB103420 NO LONGER AVAILABLE) ( NOT ILLUSTRATED) (CONVENIENCE ASSEMBL Y) (48 INCH REAR ENTRY CAB) (CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON SEPARATE PAGES)

1шт.
