Запчасти John Deere 00CLC 51 - 4613 CYLINDER BLOCK FITTINGS, MAIN BEARING CAPS 0400A Engine 6068HT053 6068HT053

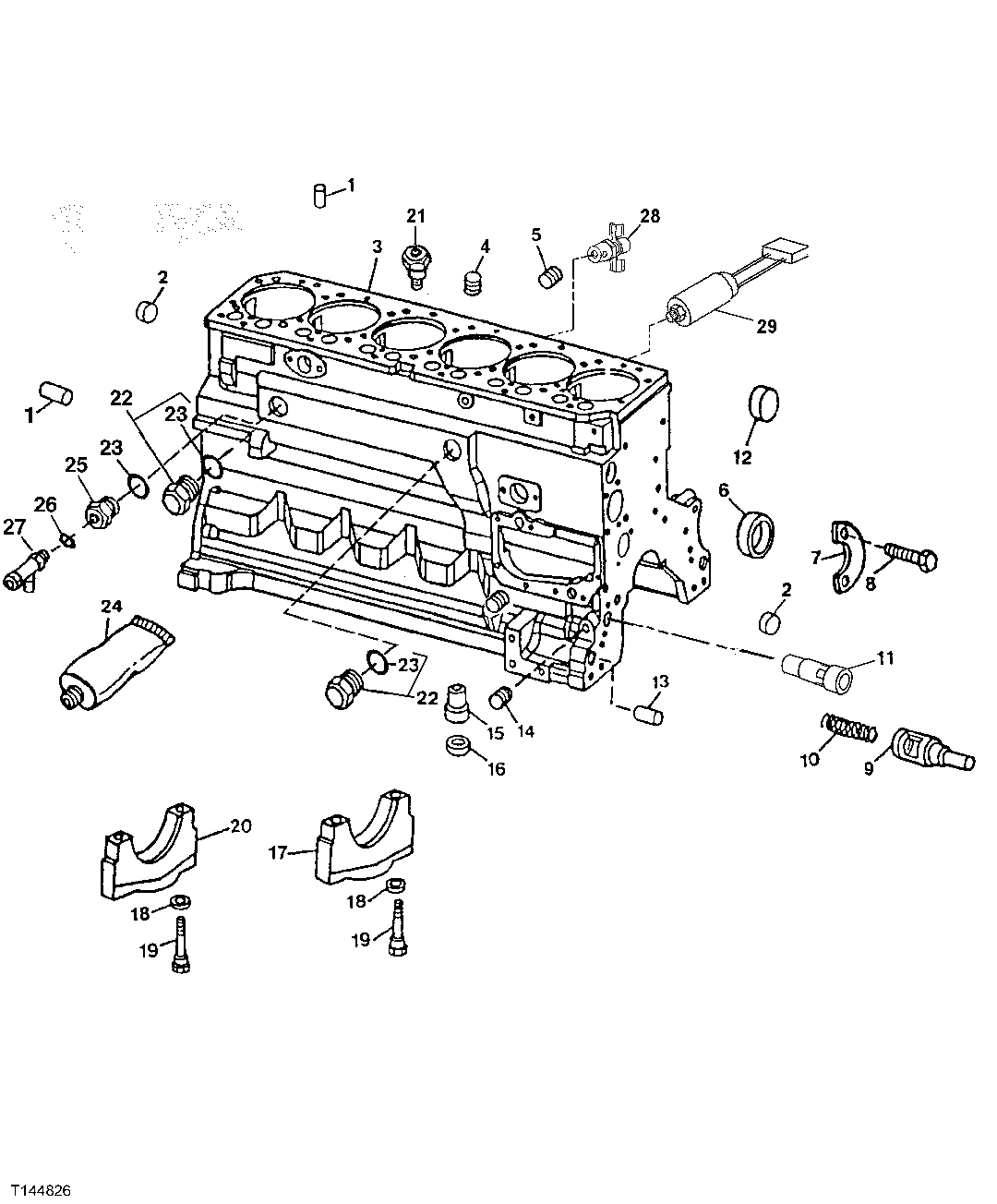

Схема запчастей John Deere 00CLC - 51 - 4613 CYLINDER BLOCK FITTINGS, MAIN BEARING CAPS 0400A Engine 6068HT053 6068HT053

Артикул

Название

Примечание

Количество

1

R48685

Dowel Pin

4шт.

2

T18891

Plug

2шт.

3

Cylinder Block

(MARKEDR119565 ) (ORDER RE518527)

1шт.

4

RE57836

Pipe Plug

12.700 mm (1/2") (SUB FOR 15H624)

1шт.

5

R104592

Pipe Plug

6шт.

6

R119874

Bushing

(CAMSHAFT)

1шт.

7

R132518

Plate

1шт.

8

19M8999

Screw

M8 X 25

2шт.

9

R121043

Valve

(ENGINE OIL BY-PASS)

1шт.

10

R111137

Spring

1шт.

11

RE505501

Bleed Valve

(OIL PRESSURE REGULATING)

1шт.

12

R116466

Plug

1шт.

13

R26650

Dowel Pin

2шт.

14

15H623

Pipe Plug

3/8"

1шт.

15

R115390

Bushing

1шт.

16

R75892

O-Ring

1шт.

17

R114241

Bearing Cap

(MAIN BEARING)

6шт.

18

T20168

Washer

14шт.

19

T23474

Cap Screw

14шт.

20

R132186

Bearing Cap

(MAIN THRUST BEARING)

1шт.

21

R131182

Orifice

6шт.

22

RE508185

Fitting

(WITHOUT CAB HEAT)

2шт.

23

U13639

O-Ring

2шт.

24

PM38655

Sealant

(SUB FOR T43514) (PLASTIC GASKET)

1шт.

25

R123616

Plug

(WITH CAB HEAT)

1шт.

26

51M7043

O-Ring

15.300 X 2.200 mm (WITH CAB HEAT)

1шт.

27

RE507952

Drain Valve

(WITH CAB HEAT)

1шт.

28

AT13740

Drain Valve

1шт.

29

RE55145

Switch

(OIL PRESSURE)

1шт.

Выбрано товаров: 29
