Запчасти John Deere 00CLC 36 - 2312 FAN DRIVE PULLEYS, AND TENSIONERS 0400A Engine 6068HT053 6068HT053

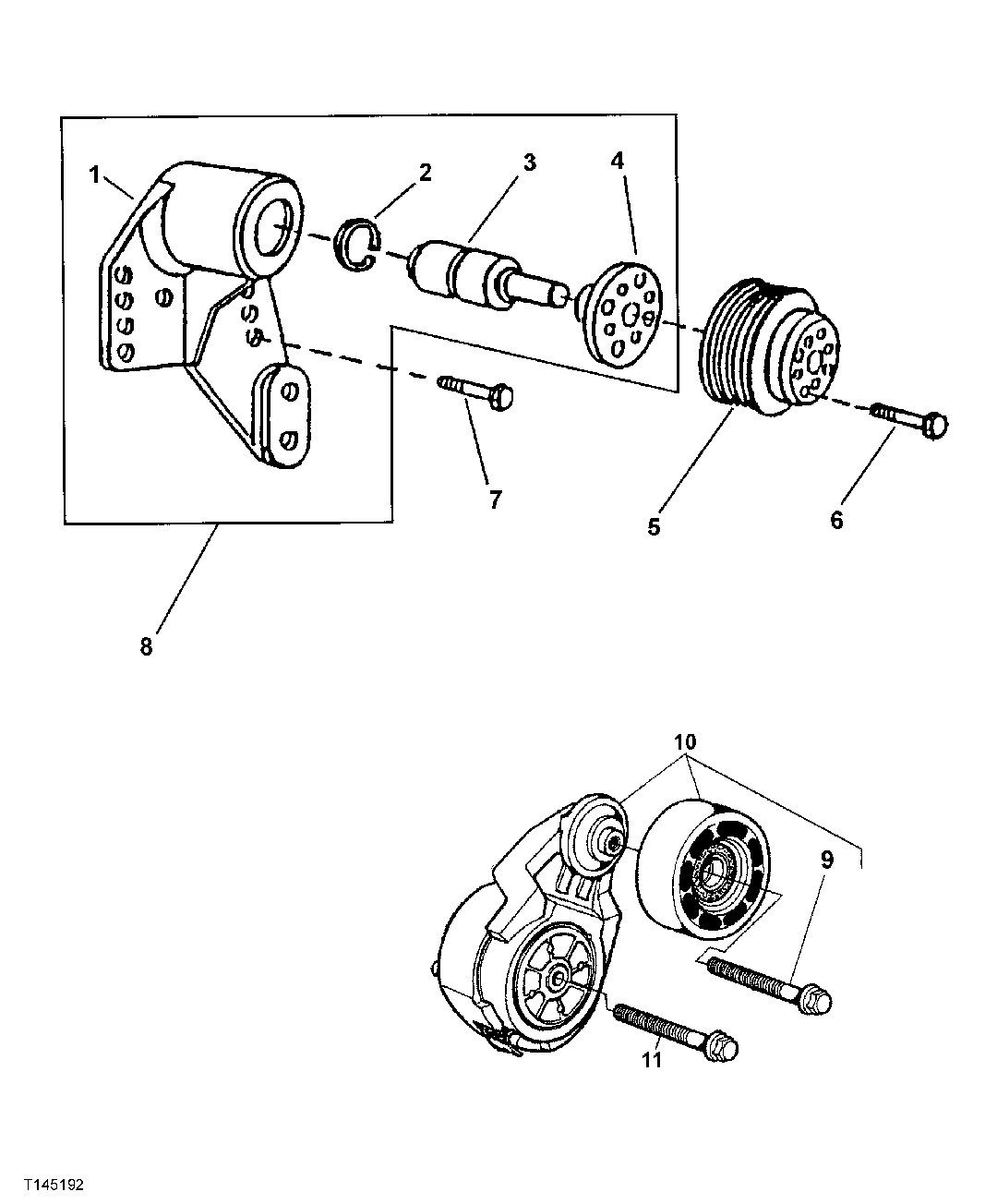

Схема запчастей John Deere 00CLC - 36 - 2312 FAN DRIVE PULLEYS, AND TENSIONERS 0400A Engine 6068HT053 6068HT053

Артикул

Название

Примечание

Количество

1

Bearing Housing W/ Bearing

1шт.

2

E1343FN

Snap Ring

1шт.

3

Shaft

(SHAFT/BEARINGS)

1шт.

4

Hub

(MARKED R123284 ) (SUB RE 500538, THIS APPLICATION)

1шт.

5

R128660

Pulley

1шт.

R128662

Pulley

1шт.

6

19M7784

Screw

M10 X 20

4шт.

7

19M7835

Screw

M10 X 35

4шт.

8

RE503664

Support

(MARKED R502014)

1шт.

9

R503813

Bolt

(LH THREAD)

1шт.

10

RE70536

Belt Tensioner

(SUB THIS APPLICATION RE51809 7 24M7106 19M8183 AND R518210)

1шт.

11

19M8131

Screw

M10 X 70

1шт.

Выбрано товаров: 12
