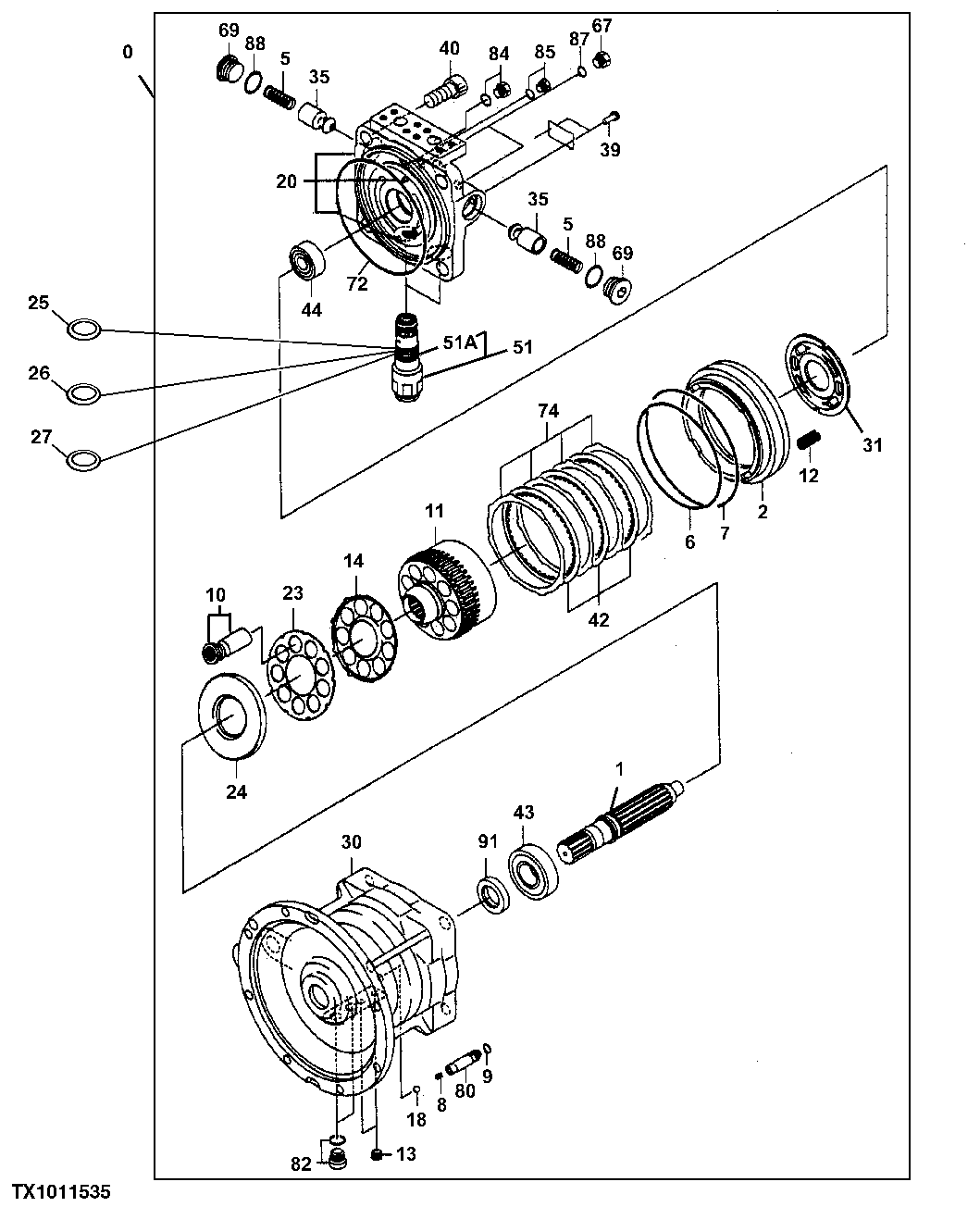

Запчасти John Deere 00CLC 381 - Swing Oil Motor 4360 HYDRAULICS

0

4398514

Hydraulic Motor

For South America

1шт.

4398514EX

Hydraulic Motor Reman

REMAN FOR 4398514

1шт.

1

0788804

Shaft

1шт.

2

0788814

Piston

1шт.

5

0409216

Spring

SUB FOR AT155199

2шт.

6

0353321

O-Ring

SUB FOR AT132389 OR 4S00218

1шт.

7

T80622

O-Ring

183.744 X 3.531 mm (7-15/64" X 0.139")

1шт.

8

0788818

Spring

SUB FOR TH0788818

1шт.

9

CH11568

Packing

1шт.

10

0788801

Piston

1 Package Contains 9 P arts SUB FOR TH0788801

1шт.

11

0788805

Manifold

SUB FOR TH0788805

1шт.

12

0788815

Spring

SUB FOR TH0788815

24шт.

13

15H560

Pipe Plug

1/16"

2шт.

14

0788806

Plate

SUB FOR TH0788806

1шт.

18

R63075

Ball

5.558 mm (7/32")

1шт.

20

0788802

Cover

SUB FOR TH0788802

1шт.

23

0788807

Retainer

SUB FOR TH0788807

1шт.

24

0788808

Plate

SUB FOR TH0788808

1шт.

25

R67193

Shim

ARшт.

26

R55158

Shim

ARшт.

27

R55159

Shim

ARшт.

30

Case

0788810 NLA

1шт.

31

0788809

Plate

SUB FOR TH0788809

1шт.

35

0409215

Plunger

SUB FOR AT155198

2шт.

39

0625509

Cap Screw

SUB FOR TH0625509

2шт.

40

0365318

Screw

SUB FOR AT128294

4шт.

42

0788816

Thrust Washer

SUB FOR TH0788816

3шт.

43

0788811

Cylindrical Roller Bearing

SUB FOR TH0788811

1шт.

44

0677203

Cylindrical Roller Bearing

SUB FOR TH0788812 AND 0788812

1шт.

51

4451628

Pressure Relief Valve

2шт.

51A

A811030

O-Ring

29.400 X 3.100 mm (1.157" X 0.122") SUB FOR TH101300

2шт.

67

0629404

Fitting Plug

SUB FOR AT213630

2шт.

69

0692708

Fitting Plug

SUB FOR AT217930

2шт.

72

0425115

O-Ring

SUB FOR AT155216 OR 4S01095

1шт.

74

0788817

Drive Disk

SUB FOR TH0788817

4шт.

80

0788803

Plunger

SUB FOR TH0788803

1шт.

82

0628705

Pipe Plug

SUB FOR TH0628705

2шт.

84

0694825

Pipe Plug

SUB FOR TH0694825

1шт.

85

0788819

Pipe Plug

SUB FOR TH0788819

1шт.

87

M800650

Packing

2шт.

88

AT264347

O-Ring

SUB FOR TH100136 OR 4506428

2шт.

91

0788813

Seal

SUB FOR TH0788813 OR 4S00821

1шт.
