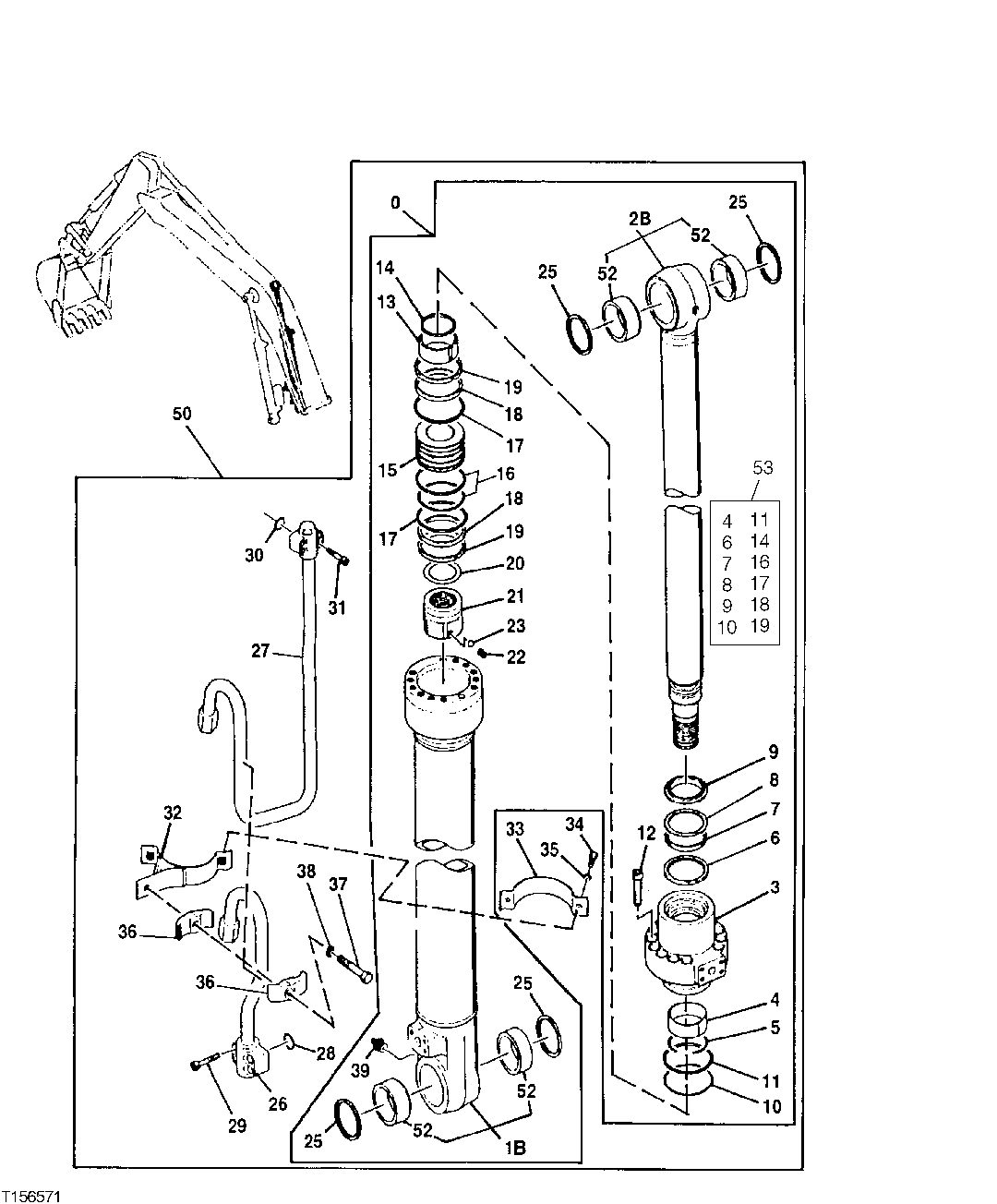

Запчасти John Deere 00CLC 370 - Right Boom Cylinder, Long Boom 3365 Hydraulic Cylinders

0

AH165671

Hydraulic Cylinder

1шт.

1B

AH165677

Hydraulic Cylinder Barrel

USE WITH AH165671

1шт.

AH165677

Hydraulic Cylinder Barrel

SUB FOR PG201290

1шт.

2B

AH231458

Rod

SUB FOR AH165681; USE WITH AH165671

1шт.

Hyd Cylinder Rod Reman

PG201291 NLA

1шт.

3

H180210

Hydr. Cylinder Rod Guide

SUB FOR H155161

1шт.

4

AT264272

Bushing

SUB FOR T108019, AT154778 OR 4272960

1шт.

5

TH104944

Snap Ring

SUB FOR 0208304

1шт.

6

AH148786

Seal

1шт.

7

H227912

Seal

SUB FOR TH104952, 4S00173 OR AT309613

1шт.

8

AT309614

Back-Up Ring

SUB FOR TH104953 OR 4S00174

1шт.

9

H155911

Seal

1шт.

10

AT264342

O-Ring

SUB FOR TH100125

1шт.

11

AT264359

Back-Up Ring

SUB FOR TH104929 OR 4S00175

1шт.

12

19M8931

Screw

M16 X 75 SUB FOR 19M8730, THIS APPLICATION

12шт.

13

H155920

Ring

1шт.

14

H155919

Seal

1шт.

15

H155921

Piston

1шт.

16

AT264355

Seal

SUB FOR TH104922

1шт.

17

H155916

Back-Up Ring

2шт.

18

H155917

Ring

2шт.

19

AT264356

Wear Ring

SUB FOR 4S00158 OR TH104923

2шт.

20

T108030

Shim

SUB FOR 0309013

1шт.

21

H155924

Nut

1шт.

22

22M7009

Set Screw

M12 X 12

1шт.

23

T13624

Ball

7.145 mm (9/32")

1шт.

25

TH102446

Seal

SUB FOR AH140158

4шт.

26

AH233833

Oil Line

SUB FOR AH148788

1шт.

27

AH148789

Oil Line

1шт.

28

AT264348

O-Ring

SUB FOR TH102788

1шт.

29

19M8444

Screw

M12 X 60 Use When Attaching Tube Flange Depth Is 45.97 MM

4шт.

30

AT264360

O-Ring

SUB FOR TH104930 OR 4506430

1шт.

31

19M8339

Screw

M10 X 55 Use When Attaching Tube Flange Depth Is 38.1 MM

4шт.

32

AH233834

Clamp

SUB FOR AH148790

1шт.

33

T108048

Clamp

SUB FOR 0309314

1шт.

34

19M7550

Cap Screw

M10 X 35 SUB FOR AT153924

2шт.

35

12M7066

Lock Washer

10 mm

2шт.

36

0236915J

Holder

SUB FOR TH102783 OR 0236915

2шт.

37

19M7607

Cap Screw

M14 X 80

1шт.

38

12M7068

Lock Washer

14 mm

1шт.

39

TH100074

Lubrication Fitting

1шт.

50

Hydraulic Cylinder Reman

AT264211 NLA, SUB FOR A T181849 OR AT182447 Reman

1шт.

51

0208326-P

Bushing

USE WITH AH148782; SUB FOR T108029

1шт.

52

4352398

Bushing

USE WITH AH165671; SUB FOR AT213964

2шт.

53

AH173457

Seal Kit

SUB FOR AH148785

1шт.
