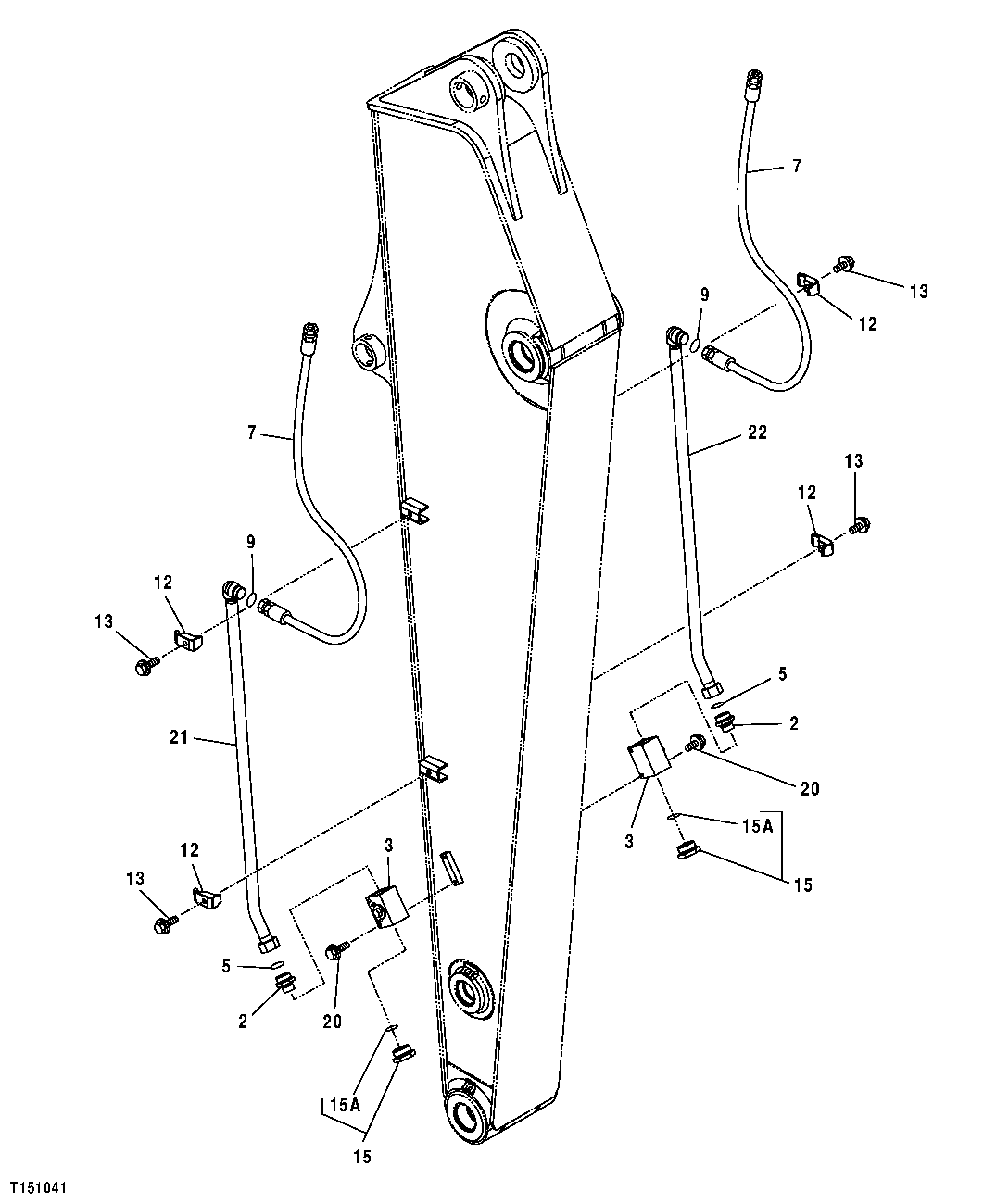

Запчасти John Deere 00CLC 362 - Arm Auxiliary Hoses And Lines, Factory Installed 3363 Lines, Hoses & Fittings

2

Adapter Fitting

4205196 NLA

2шт.

3

4447675

Flow Control Hyd. Valve

2шт.

5

T78612

O-Ring

29.870 X 1.780 mm (1.176" X 0.070")

2шт.

7

4400848

Hydraulic Hose

SUB FOR TH4400848 Fabricate

2шт.

9

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

4шт.

12

4190127

Clamp

SUB FOR TH108313

4шт.

13

19M8348

Cap Screw

M12 X 65

4шт.

12H301

Lock Washer

1/2"

4шт.

15

A885008

Pipe Plug

SUB FOR 4113926 AND AT126200

2шт.

15A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

20

19M8183

Cap Screw

M10 X 90

4шт.

12M7066

Lock Washer

10 mm

4шт.

21

8084097J

Oil Line

SUB FOR TH8084097J

1шт.

22

8083882J

Oil Line

SUB FOR TH8083882J

1шт.
