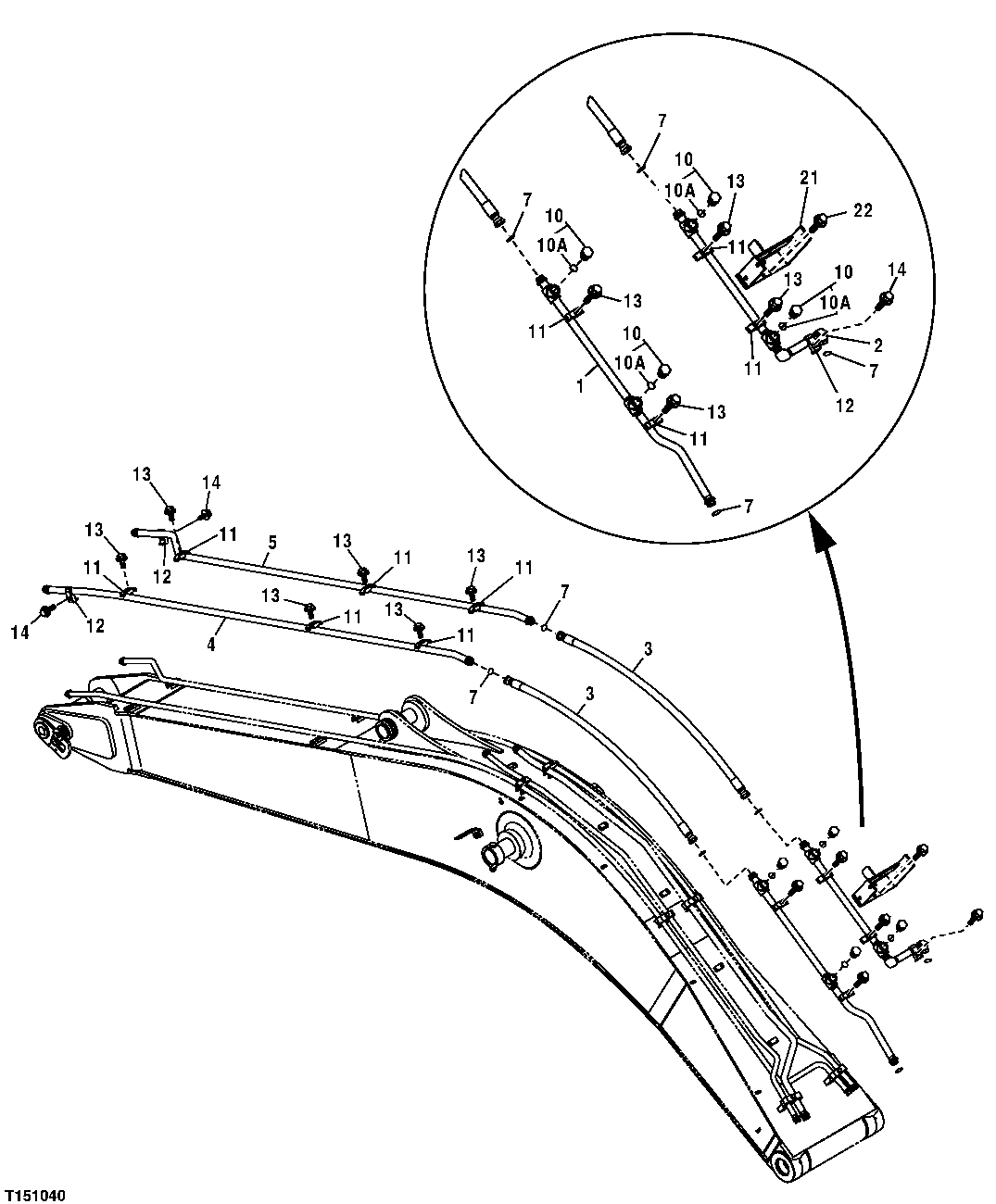

Запчасти John Deere 00CLC 361 - THIRD FUNCTION BOOM HYDRAULIC HOSES AND OIL LINES 3363 Lines, Hoses & Fittings

1

8081638J

Oil Line

SUB FOR TH8081638J

1шт.

2

8080620J

Oil Line

SUB FOR TH8080620J

1шт.

3

4357695

Hydraulic Hose

SUB FOR TH4357695

2шт.

4

DH800081J

Oil Line

SUB FOR TH8082052J, 8082052J

1шт.

5

DH800082J

Oil Line

SUB FOR TH8082053J, 8082053J

1шт.

7

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

6шт.

10

A885008

Pipe Plug

SUB FOR 4113926 AND AT126200

4шт.

10A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

11

4153488

Clamp

SUB FOR TH103780

10шт.

12

4190127

Clamp

SUB FOR TH108313

3шт.

13

19M8348

Cap Screw

M12 X 65

10шт.

12H301

Lock Washer

1/2"

10шт.

14

19M8088

Cap Screw

M12 X 75

3шт.

24M7047

Washer

13 X 24 X 2.500 mm

3шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

3шт.

21

8079431J

Bracket

SUB FOR TH8079431J

1шт.

22

19M7662

Cap Screw

M10 X 30

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.
