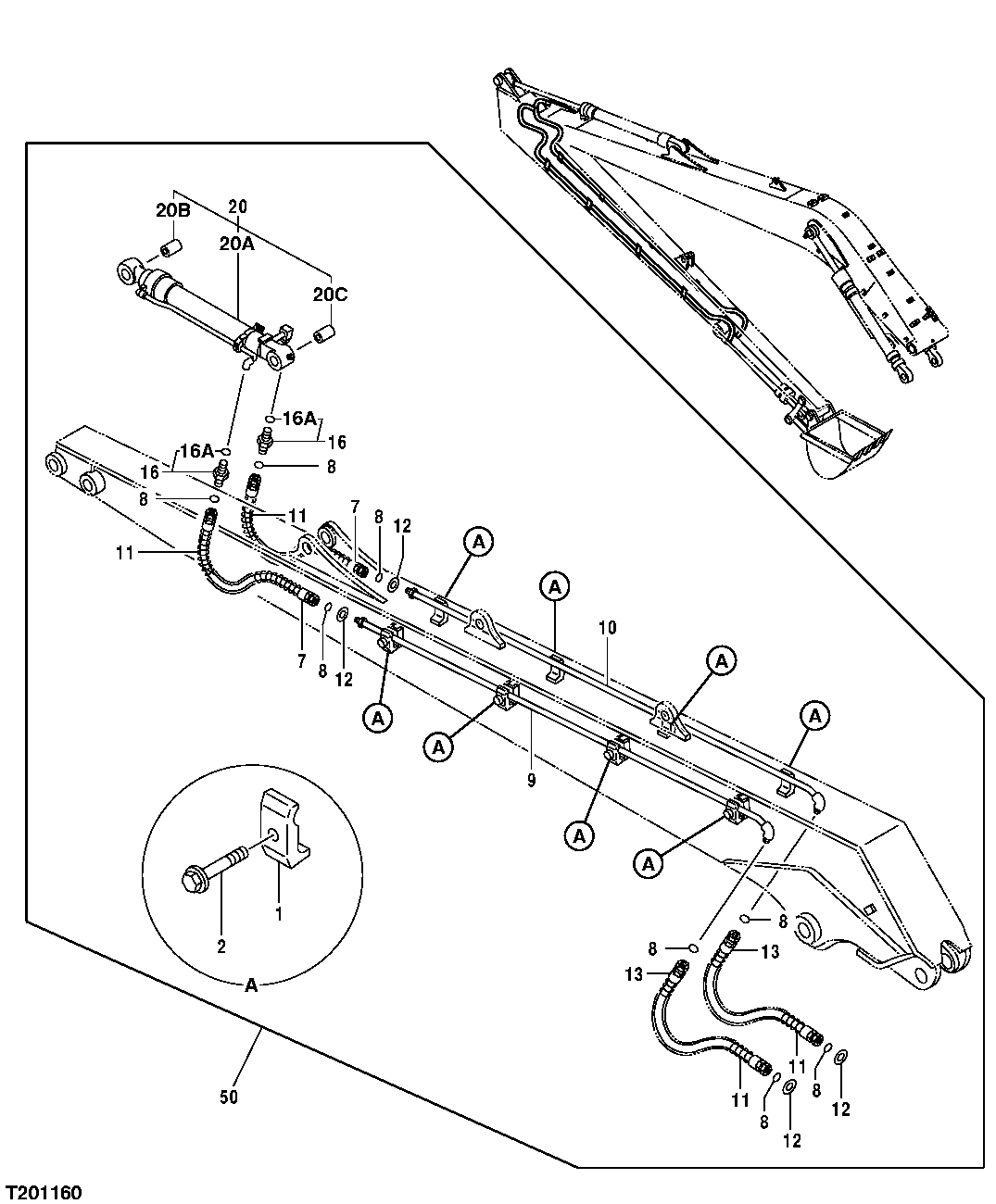

Запчасти John Deere 00CLC 357 - Super Long Front Arm Lines And Hoses (01NOV04- ) 3363 Lines, Hoses & Fittings

1

4190126

Clamp

8шт.

2

19M7363

Cap Screw

M12 X 60 SUB FOR J011260

8шт.

7

AT154876

Hydraulic Hose

SUB FOR 4250889

2шт.

8

T77858

O-Ring

SUB FOR 4187308

8шт.

9

FYA40008106

Pipe

SUB FOR 8065488

1шт.

10

FYA40008105

Pipe

SUB FOR 8065487

1шт.

11

4053610

Hose Guard

4шт.

12

4203220

Washer

4шт.

13

AT131293

Hydraulic Hose

SUB FOR 4265833

2шт.

16

4197530

Adapter Fitting

2шт.

16A

4506418

O-Ring

1шт.

20

9156726

Hydraulic Cylinder

Furnish Individual Components

1шт.

20A

Hydraulic Cylinder

BUCKET, SEE SEPARATE PAG E FOR DETAIL 4379259 NLA

1шт.

20B

4365448

Bushing

2шт.

20C

4365897

Bushing

2шт.

50

Kit

AT314801 NLA Installed On Units Novem ber 2004 or Later Super Long Front Kit

1шт.
