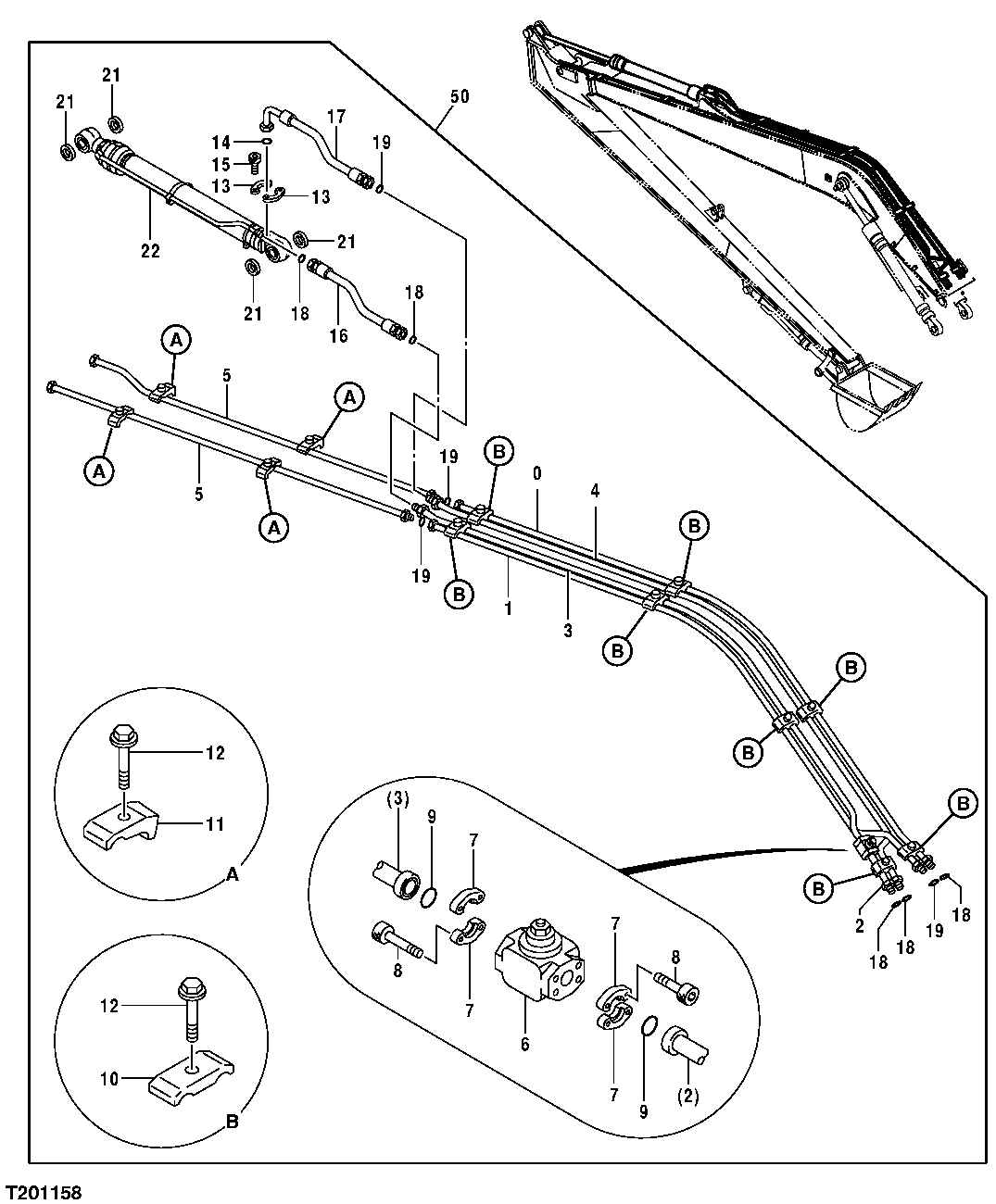

Запчасти John Deere 00CLC 356 - SUPER LONG FRONT BOOM LINES AND HOSES (01NOV04- ) 3363 Lines, Hoses & Fittings

0

8066182

Tube

1шт.

1

8066588

Tube

1шт.

2

9746942

Tube

1шт.

3

8066590

Tube

1шт.

4

8066589

Tube

1шт.

5

8052578

Tube

2шт.

6

4330223

Flow Control Hyd. Valve

1шт.

7

R29424

Flange Fitting

SUB FOR 986910

4шт.

8

19M8337

Screw

M10 X 30 SUB FOR M341030

8шт.

9

T59014

O-Ring

SUB FOR 971489

2шт.

10

Clamp

4285723 NLA; ORDER 4189859 Rubber

8шт.

4189859

Clamp

Steel

8шт.

11

4190126

Clamp

4шт.

12

19M7363

Cap Screw

M12 X 60 SUB FOR J011260

12шт.

13

4085560

Flange Fitting

2шт.

14

966993

O-Ring

1шт.

15

19M8395

Screw

M12 X 40 SUB FOR M341240

4шт.

16

AT168311

Hydraulic Hose

SUB FOR 4249334

1шт.

17

AT131302

Hydraulic Hose

SUB FOR 4252855

1шт.

18

T77858

O-Ring

SUB FOR 4187308

5шт.

19

T76938

O-Ring

SUB FOR 4187328

4шт.

21

TH102446

Seal

SUB FOR 4067902

4шт.

22

9264696

Hydraulic Cylinder

SUB FOR 9162441

1шт.

50

Kit

AT314801 NLA Installed On Units Novem ber 2004 or Later Super Long Front Kit

1шт.
