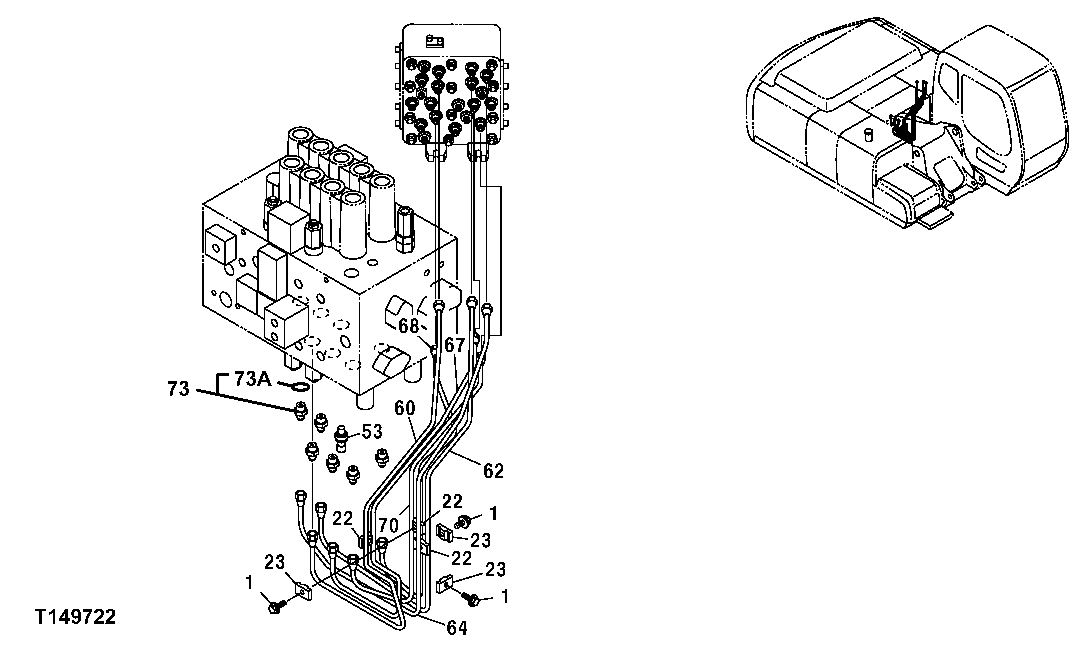

Запчасти John Deere 00CLC 345 - PILOT LINES 3363 Lines, Hoses & Fittings

1

19M7163

Cap Screw

M8 X 25

3шт.

Washer

12M7065 NLA

3шт.

22

9735305

Clamp

SUB FOR AP33637

3шт.

23

9735306

Clamp

SUB FOR AP33638

3шт.

53

4436535

Sensor

SUB FOR TH4436535

1шт.

60

3091680

Oil Line

SUB FOR TH3091680

1шт.

62

3091681

Oil Line

SUB FOR TH3091681

1шт.

64

3091682

Oil Line

SUB FOR TH3091682

1шт.

67

3091683

Oil Line

SUB FOR TH3091683

1шт.

68

3091684

Oil Line

SUB FOR TH3091684

1шт.

70

3091685

Oil Line

SUB FOR TH3091685

1шт.

73

4255305

Fitting

SUB FOR AT213809

6шт.

73A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.
