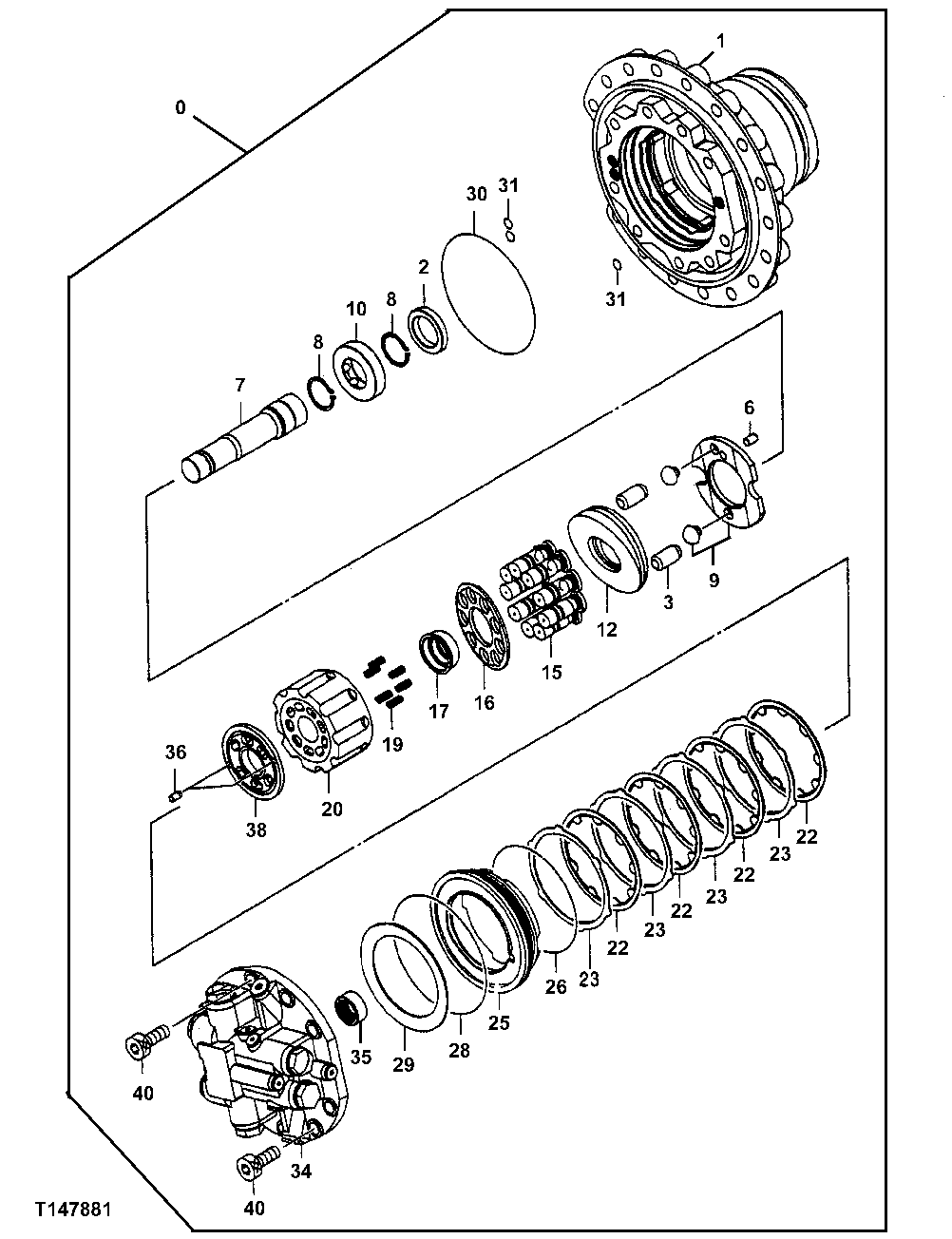

Запчасти John Deere 00CLC 20 - PROPEL MOTOR 0267 HYDRAULIC DRIVE MOTOR

0

9200288

Hydraulic Motor

NLA, ORDER 9200288EX

1шт.

9200288EX

Hydraulic Motor Reman

REMAN FOR 9200288

1шт.

1

Housing

1025878 NLA

1шт.

2

4396696

Seal

SUB FOR TH4396696

1шт.

3

4417431

Piston

SUB FOR TH4417431

2шт.

6

4409640

Pin Fastener

SUB FOR TH4409640

1шт.

7

2042080

Shaft

SUB FOR TH2042080

1шт.

8

40M7166

Snap Ring

2шт.

9

9181133

Plate

1шт.

10

4396755

Cylindrical Roller Bearing

SUB FOR TH4396755

1шт.

12

3085485

Plate

SUB FOR TH3085485

1шт.

15

8099321

Piston

SUB FOR 8075190

9шт.

16

3081570

Retainer

SUB FOR TH3081570

1шт.

17

4397757

Bushing

SUB FOR TH4397757

1шт.

19

4396747

Spring

SUB FOR TH4396747

6шт.

20

2051451

Rotor

ALSO ORDER 8099321, SUB FOR 2052 977 AND 2042060, USE WITH 8075190

1шт.

2051451

Rotor

USE WITH 8099321

1шт.

22

FYB00002175

Plate

3081593 NLA, SUB FOR TH308 1593, ALSO ORDER FYB00002174

4шт.

23

FYB00002174

Plate

3081592 NLA, SUB FOR TH308 1592, ALSO ORDER FYB00002175

4шт.

25

3081595

Piston

SUB FOR TH3081595

1шт.

26

4396775

O-Ring

SUB FOR TH4396775

1шт.

28

4396774

O-Ring

SUB FOR TH4396774

1шт.

29

3081594

Spring

SUB FOR TH3081594

1шт.

30

4420958

O-Ring

SUB FOR TH4420958

1шт.

31

T111819

O-Ring

3шт.

34

9260017

Flow Control Hyd. Valve

SUB FOR 9195450

1шт.

35

4631910

Needle Bearing

SUB FOR TH4396759 OR 4396759

1шт.

36

4630921

Dowel Pin

4619325 NLA

2шт.

38

3101081

Plate

SUB FOR TH3081568 OR 3081568

1шт.

40

M341850

Bolt

SUB FOR AT131557

9шт.
