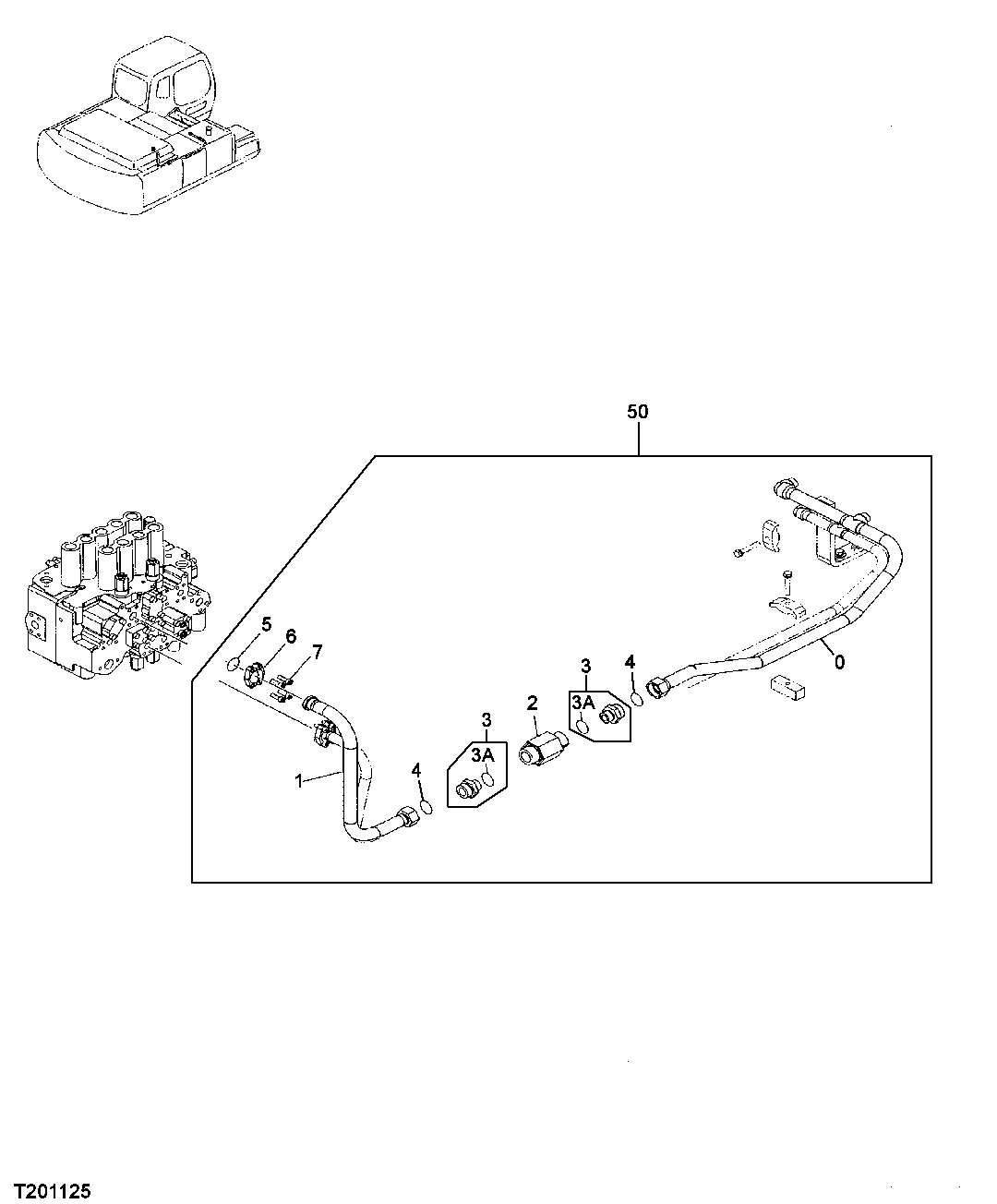

Запчасти John Deere 00CLC 337 - BOOM BOTTOM HYDRAULIC LINES, SUPER LONG FRONT (01NOV04- ) 3363 Lines, Hoses & Fittings

0

FYA40012443

Pipe

SUB FOR 8102705 OR 808311 0, ALSO ORDER FYA40012442

1шт.

FYA40012442

Pipe

1шт.

1

FYA40012442

Pipe

SUB FOR 8102707 OR 808311 1, ALSO ORDER FYA40012443

1шт.

FYA40012443

Pipe

1шт.

2

9075046

Flow Control Hyd. Valve

(SLOW RETURN) (SEE SEP ARATE PAGE FOR DETAIL)

1шт.

3

A853180

Adapter Fitting

2шт.

3A

TH101926

O-Ring

1шт.

4

T78612

O-Ring

SUB FOR 4187329

2шт.

5

T78313

O-Ring

1шт.

6

H61354

Flange Fitting

SUB FOR 962453

2шт.

7

19M7576

Screw

M10 X 30 SUB FOR J781030

4шт.

50

Kit

AT314801 NLA Installed On Units November 2004 or Later

1шт.
