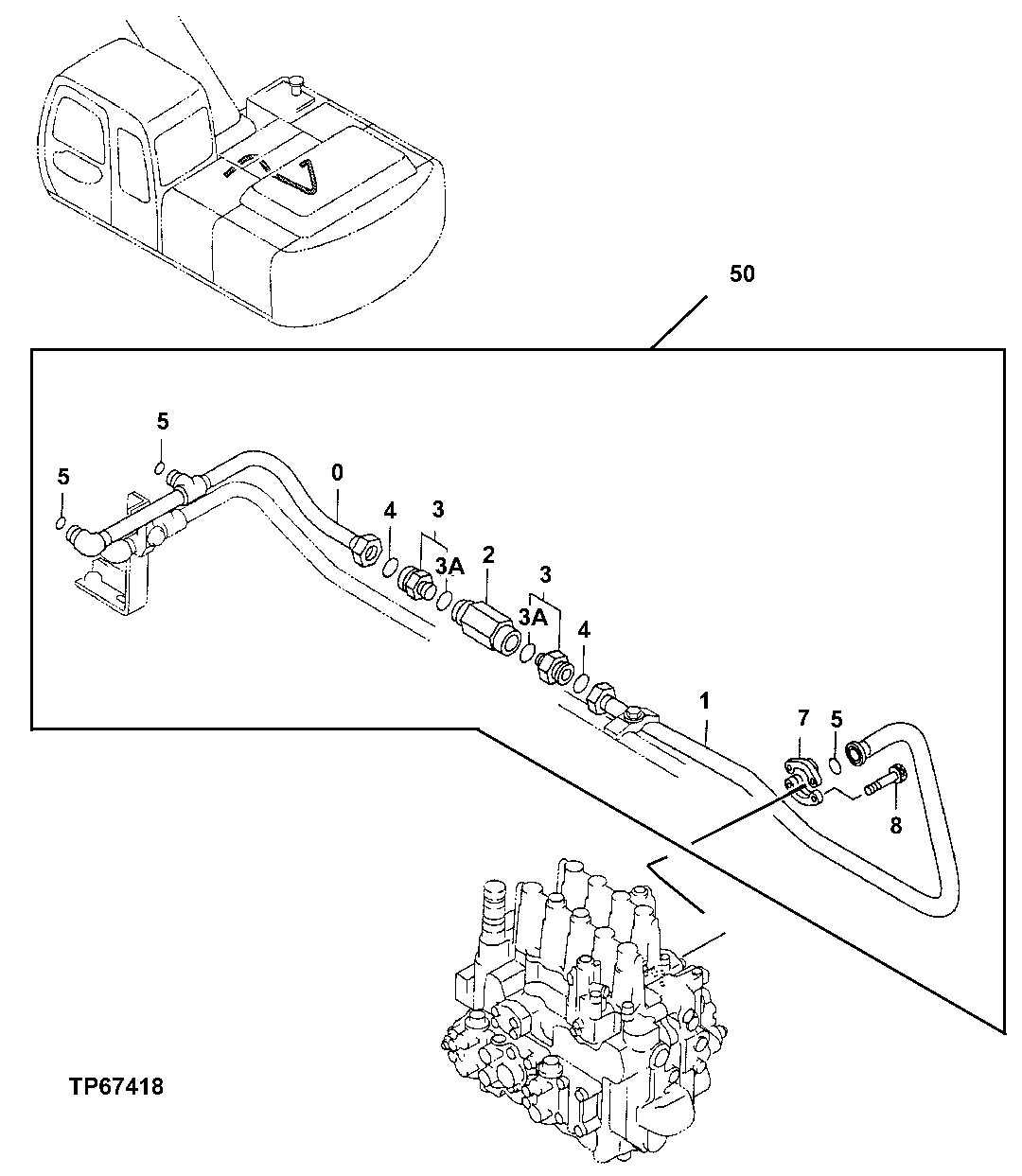

Запчасти John Deere 00CLC 336 - BOOM BOTTOM HYDRAULIC LINES, SUPER LONG FRONT ( -31OCT04) 3363 Lines, Hoses & Fittings

0

8066084J

Oil Line

(SUB FOR AT186483 OR 8066084)

1шт.

1

8066080

Line

(SUB FOR AT186484)

1шт.

2

9075046

Flow Control Hyd. Valve

(SUB FOR AT120774)(SLOW RETURN)

1шт.

3

4207425

Adapter Fitting

(SUB FOR TH111740)

2шт.

3A

TH101926

O-Ring

1шт.

4

T78612

O-Ring

(SUB FOR 4187329)

2шт.

5

T77858

O-Ring

2шт.

6

T78313

O-Ring

1шт.

7

H61354

Flange Fitting

(SUB FOR 962453)

2шт.

8

19M7576

Screw

M10 X 30 (SUB FOR J781030)

4шт.

50

Kit

Installed On Units Prior To November 2004 ( ALSO ORDER T190565, T153672, T153673, AH1656 71, AH165673 (WHOLEGOODS) (LONG FRONT ASSEMB LY KIT) (CONTAINS ALL ITEMS ON THIS PAGE - A DDITIONAL COMPONENTS LISTED ON SEPARATE PAGE S) ( AT186457 NOT AVAILABLE AFTE

1шт.
