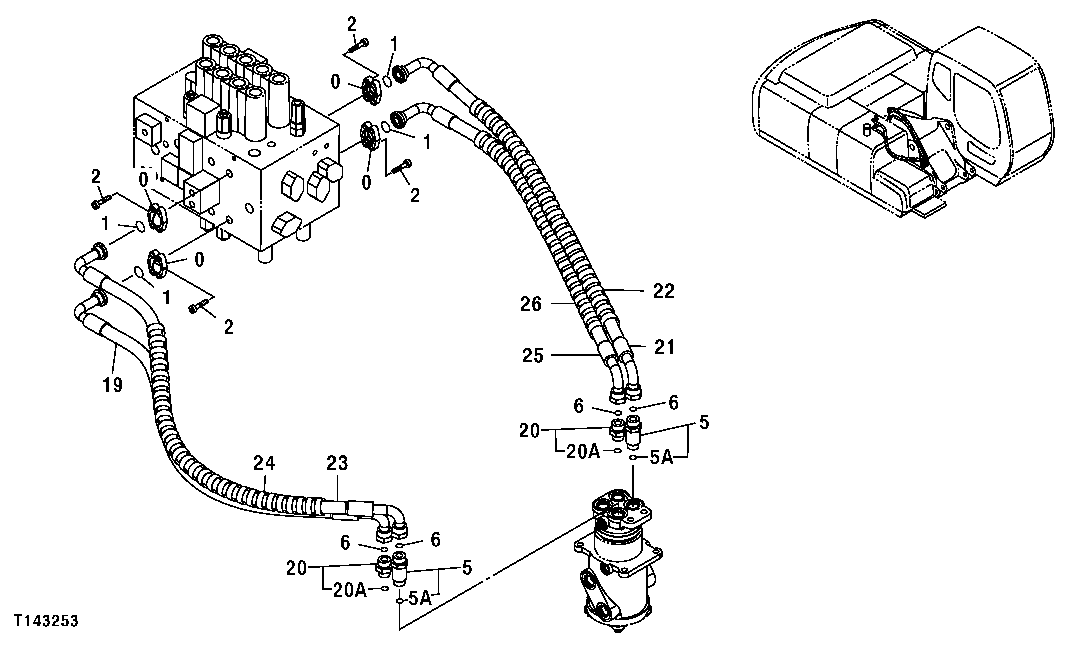

Запчасти John Deere 00CLC 334 - CONTROL VALVE HYDRAULIC HOSES 3363 Lines, Hoses & Fittings

0

R29424

Flange Fitting

8шт.

1

T59014

O-Ring

24.994 X 3.531 mm (63/64" X 0.139")

4шт.

2

19M7576

Screw

M10 X 30 (SUB FOR J781030)

16шт.

5

4189539

Adapter Fitting

(SUB FOR AT107393)

2шт.

5A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

6

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

4шт.

19

4425873

Hydraulic Hose

(SUB FOR TH4425873)

1шт.

20

A853166

Adapter Fitting

(SUB FOR THA853166)

2шт.

20A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

21

4425880

Hydraulic Hose

(SUB FOR TH4425880)

1шт.

22

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL CUT TO LENGTH) (SUB FOR AT213832 ( 4327294 NLA))

2шт.

23

4425857

Hydraulic Hose

(SUB FOR TH4425857)

1шт.

24

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL CUT TO LENGTH) (SUB FOR AT213832 ( 4327294 NLA))

2шт.

25

4425886

Hydraulic Hose

(SUB FOR TH4425886)

1шт.

26

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL CUT TO LENGTH) (SUB FOR AT213832 ( 4327294 NLA))

1шт.
