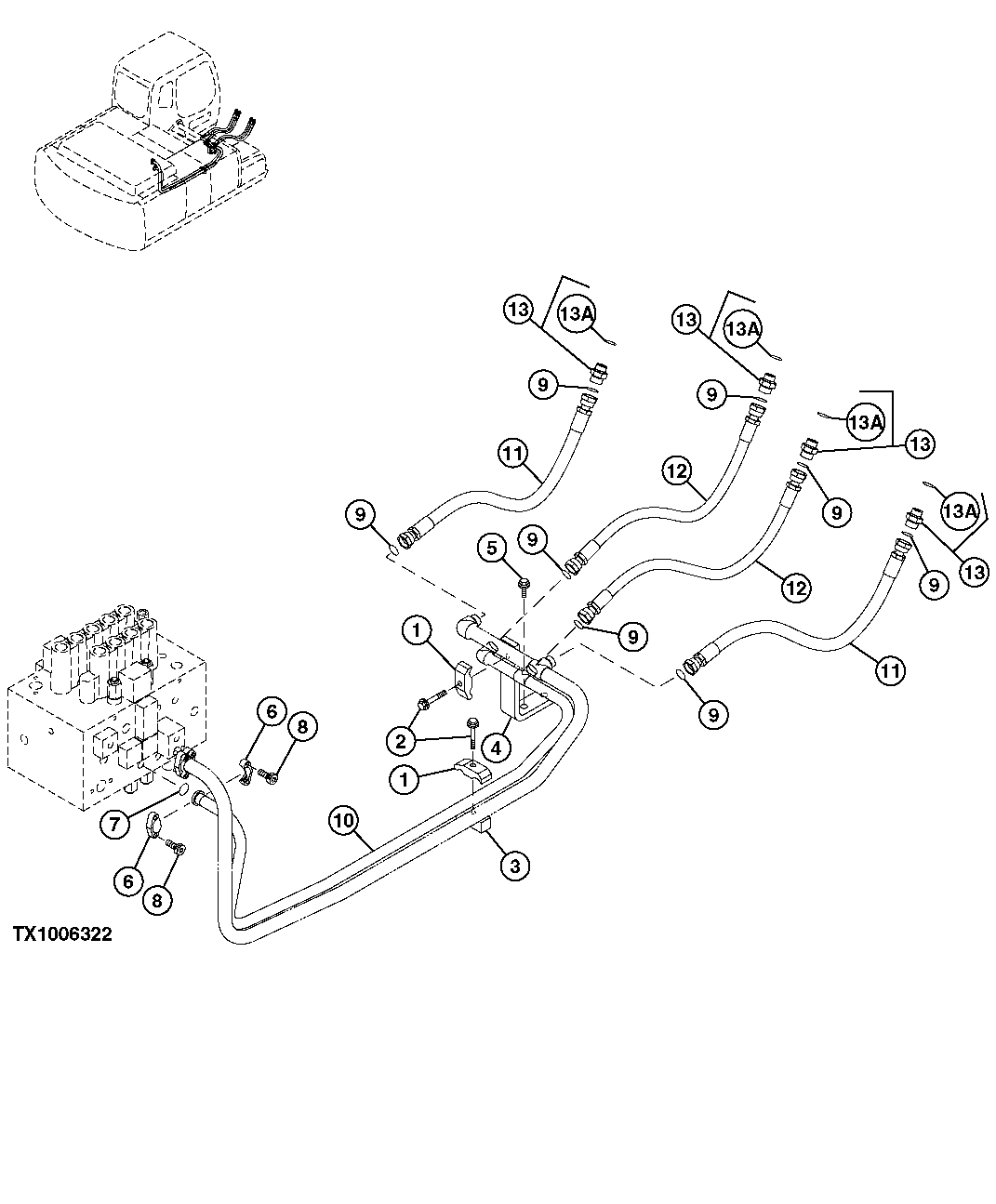

Запчасти John Deere 00CLC 331 - CONTROL VALVE, MAIN HYDRAULIC LINES AND HOSES 3363 Lines, Hoses & Fittings

1

4153488

Clamp

(SUB FOR TH103780)

2шт.

2

19M7753

Cap Screw

M12 X 70

2шт.

12H301

Lock Washer

1/2"

2шт.

3

Strap

( AT155254 NLA)

1шт.

4

4417635

Support

(SUB FOR TH4417635)

1шт.

5

19M7403

Cap Screw

M12 X 35 ( AT127270 NLA)

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

2шт.

6

R29424

Flange Fitting

2шт.

7

T59014

O-Ring

24.994 X 3.531 mm (63/64" X 0.139")

1шт.

8

19M7576

Screw

M10 X 30 (SUB FOR J781030)

4шт.

9

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

8шт.

10

8074106

Oil Line

(SUB FOR TH8074106)

1шт.

11

AT213806

Hydraulic Hose

2шт.

12

AT213820

Hydraulic Hose

30.1752" X 830 mm (32-3/4") X 30.1752"

2шт.

13

A853166

Adapter Fitting

(SUB FOR THA853166)

4шт.

13A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.
