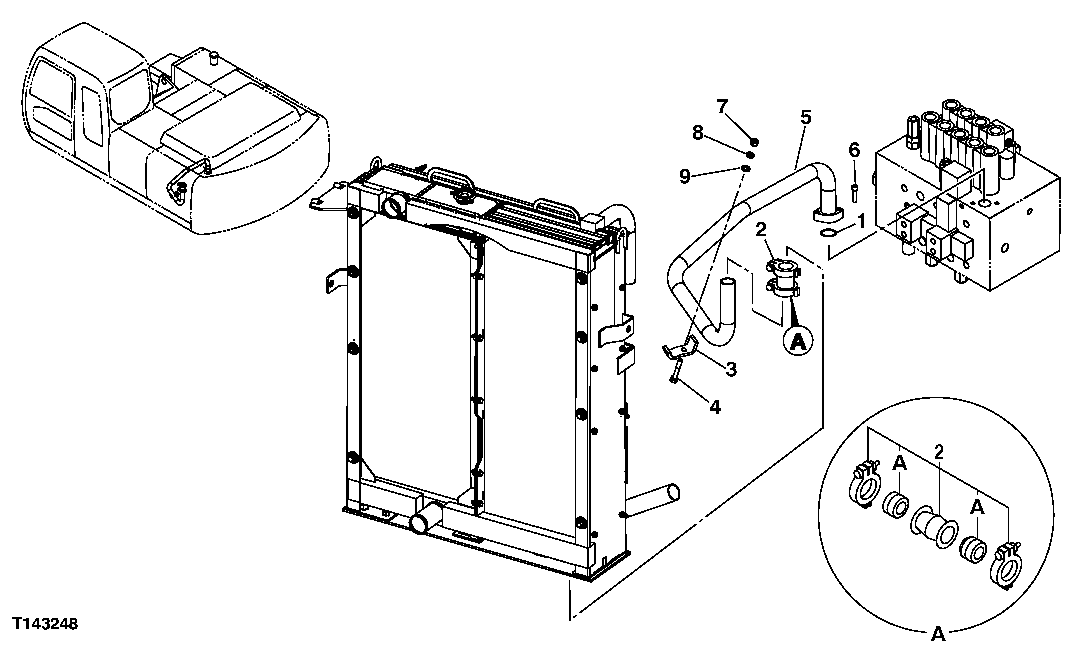

Запчасти John Deere 00CLC 329 - RETURN HYDRAULIC LINES 3363 Lines, Hoses & Fittings

1

A811040

O-Ring

39.400 X 3.100 mm (1.551" X 0.122") (SUB FOR TH102992)

1шт.

2

4069801

Coupling

(SUB FOR TH101915. 40698 01, 4196259 AND 4712341)

1шт.

2A

4196259

Seal

(SUB FOR TH106966) NLA, ORDER 4069801

2шт.

3

4053698

Clamp

(SUB FOR TH101936)

1шт.

4

19M8088

Cap Screw

M12 X 75

1шт.

5

DH700030

Oil Line

(SUB FOR THDH700030)

1шт.

6

L159272

Screw

(SUB FOR AT213615 OR J781040)

2шт.

7

14M7275

Nut

M12

1шт.

8

12H301

Lock Washer

1/2"

1шт.

9

24M7047

Washer

13 X 24 X 2.500 mm

1шт.
