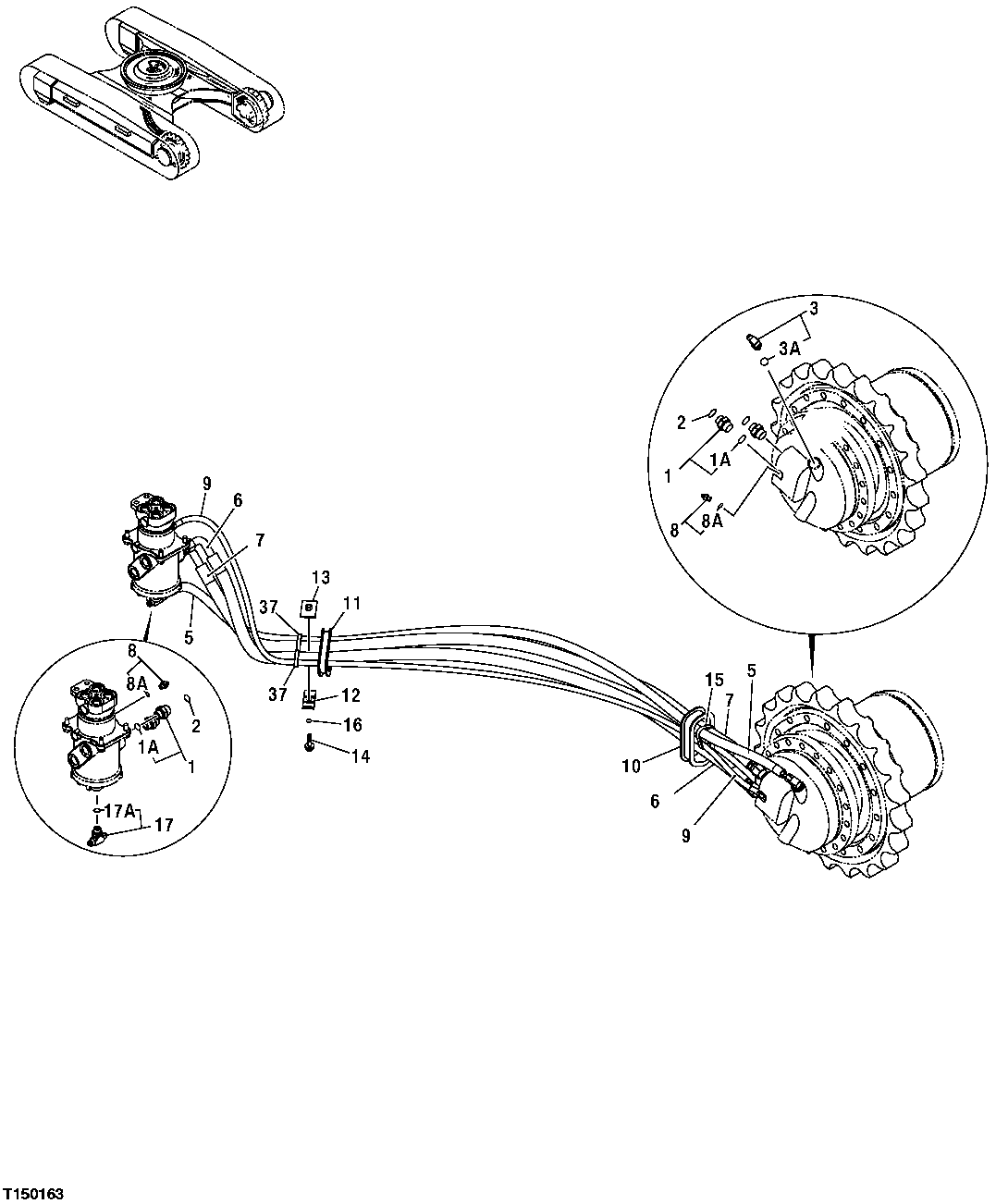

Запчасти John Deere 00CLC 19 - PROPEL MOTOR HYDRAULIC HOSES 0263 LINES, HOSES & FITTINGS

1

A853166

Adapter Fitting

SUB FOR THA853166

8шт.

1A

AT318035

O-Ring

SUB FOR 4506424, TH100055

1шт.

2

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

8шт.

3

A852344

Elbow Fitting

2шт.

3A

4506418

O-Ring

SUB FOR U46489

1шт.

5

4267667

Hydraulic Hose

SUB FOR TH4267667

2шт.

6

AT215497

Hydraulic Hose

30.1752" X 2200 mm (86-1/2") X 30.1752"

2шт.

7

AT215498

Hydraulic Hose

30.1752" X 2200 mm (86-1/2") X 30.1752"

2шт.

8

A852122

Adapter Fitting

SUB FOR P67968

4шт.

8A

M800650

Packing

1шт.

9

4449378

Hydraulic Hose

SUB FOR TH4449378

2шт.

10

4437525

Grommet

SUB FOR TH4437525

2шт.

11

4428098

Grommet

SUB FOR TH4428098

2шт.

12

4202103

Clamp

SUB FOR TH108302

2шт.

13

9727822

Clamp

SUB FOR TH109556

2шт.

14

19M7361

Cap Screw

M12 X 50

2шт.

15

H77698

Tie Band

6шт.

16

12H301

Lock Washer

1/2"

2шт.

17

A852544

Tee Fitting

SUB FOR THA852544

1шт.

17A

4506418

O-Ring

SUB FOR U46489

1шт.

37

H77698

Tie Band

3шт.
