Запчасти John Deere 00CLC 317 - SOLENOID VALVE (SN. -503485) 3362 CONTROL & LOAD HOLDING VALVES

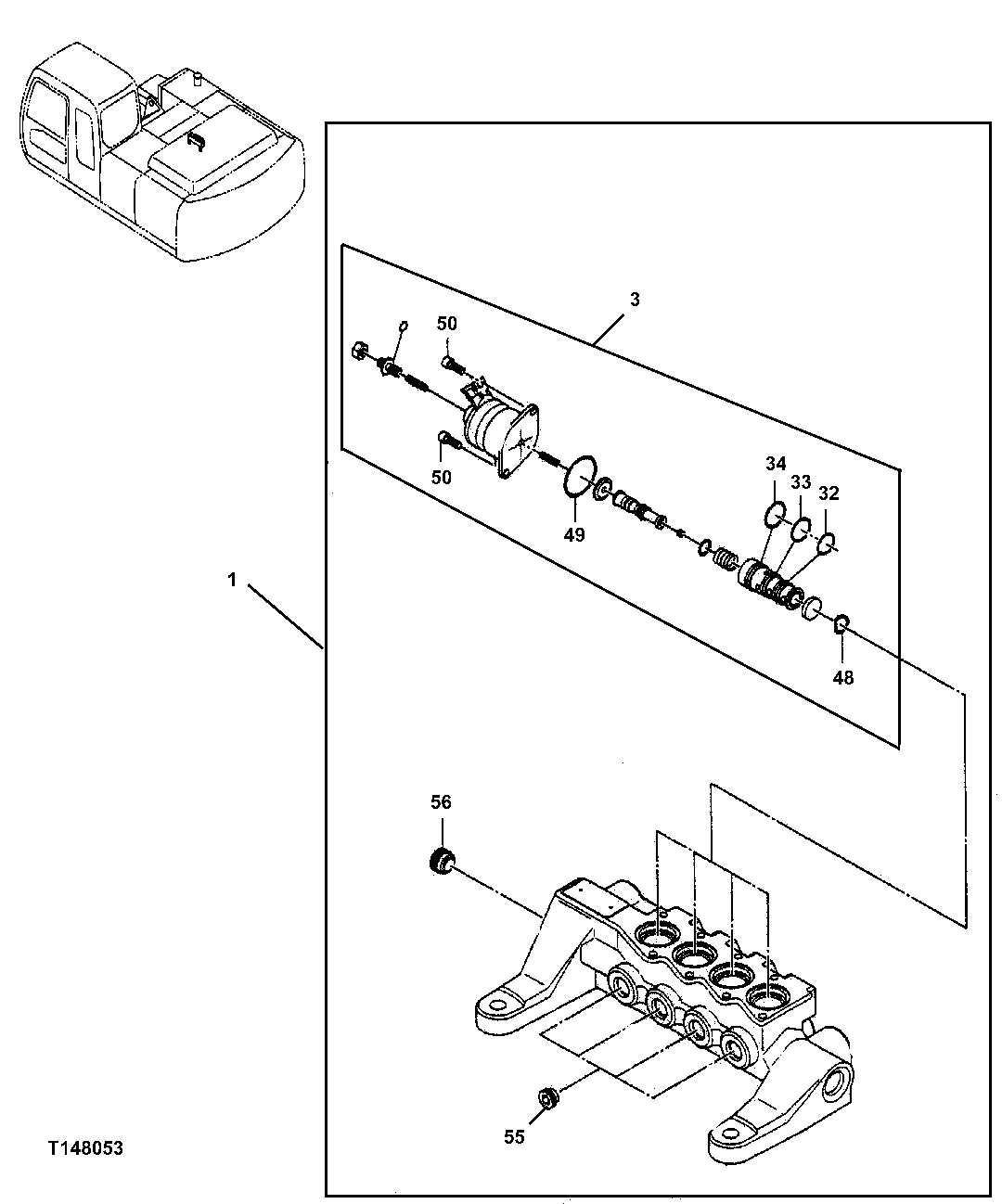

Схема запчастей John Deere 00CLC - 317 - SOLENOID VALVE (SN. -503485) 3362 CONTROL & LOAD HOLDING VALVES

Артикул

Название

Примечание

Количество

1

Solenoid Valve

( 4480966 NLA) (ORDER 92 18270 ) (SUB FOR 4400477)

1шт.

2

9218270

Solenoid Valve

Not Illustrated Complete (SUB FOR 4480966)

1шт.

3

4455991

Solenoid Valve

(SUB FOR TH4455991)

4шт.

32

4185600

O-Ring

(SUB FOR AT153902)

1шт.

33

R99052

O-Ring

14.800 X 1.900 mm (0.583" X 0.075")

1шт.

34

4163873

O-Ring

(SUB FOR AT153904, 0408411 OR TH106081)

1шт.

48

4455990

Washer

(SUB FOR TH4455990)

1шт.

49

4455989

Seal

(SUB FOR TH4455989)

1шт.

50

0387804

Screw

(SUB FOR AT215661)

2шт.

55

9761179

Plug

(SUB FOR TH4455986 OR 4455986)

4шт.

56

4455987

Pipe Plug

(SUB FOR TH4455987)

1шт.

Выбрано товаров: 11
