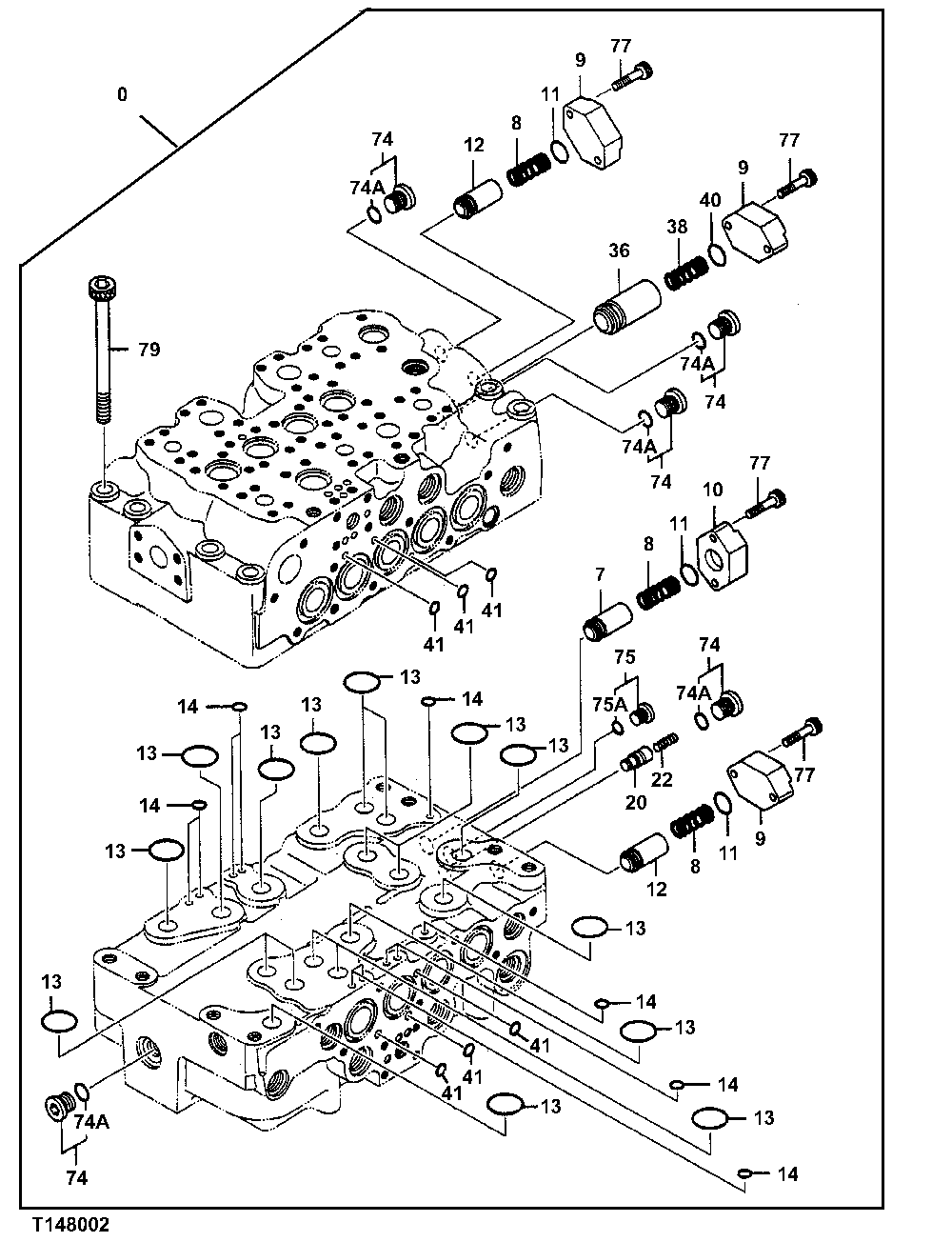

Запчасти John Deere 00CLC 315 - CONTROL VALVE (5-SPOOL SIDE) 3362 CONTROL & LOAD HOLDING VALVES

0

4398652

Flow Control Hyd. Valve

Contains All Items On This Page - Additi onal Components Listed On Separate Pages

1шт.

7

0668111

Poppet

SUB FOR AT213700

1шт.

8

0668112

Spring

SUB FOR AT213701

3шт.

9

0791601

Flange

SUB FOR TH0791601

3шт.

10

0792001

Flange

SUB FOR TH0792001

1шт.

11

CH17886

Packing

SUB FOR TH111690, SUB FOR 4509182

3шт.

12

0792002

Poppet

SUB FOR TH0792002

2шт.

13

0976602

O-Ring

SUB FOR TH0792003, 0792003, 450918 1, TH103574 OR AT264354 OR 4S00734

16шт.

14

CH17167

O-Ring

SUB FOR TH0792004, 4506320 OR 0792004

10шт.

20

0792005

Poppet

SUB FOR TH0792005

1шт.

22

0668007

Spring

SUB FOR AT213693

1шт.

36

0792006

Poppet

SUB FOR TH0792006

1шт.

38

0791604

Spring

SUB FOR TH0791604

1шт.

40

985098

O-Ring

SUB FOR TH102528

1шт.

41

4506406

O-Ring

SUB FOR TH104587

6шт.

74

0695007

Fitting Plug

SUB FOR AT250518

5шт.

74A

CH11570

O-Ring

1шт.

75

0689405

Fitting Plug

SUB FOR AT250517

1шт.

75A

M800650

Packing

1шт.

77

0413909

Bolt

SUB FOR AT154619

8шт.

79

0792007

Bolt

SUB FOR TH0792007

8шт.
