0
4398652

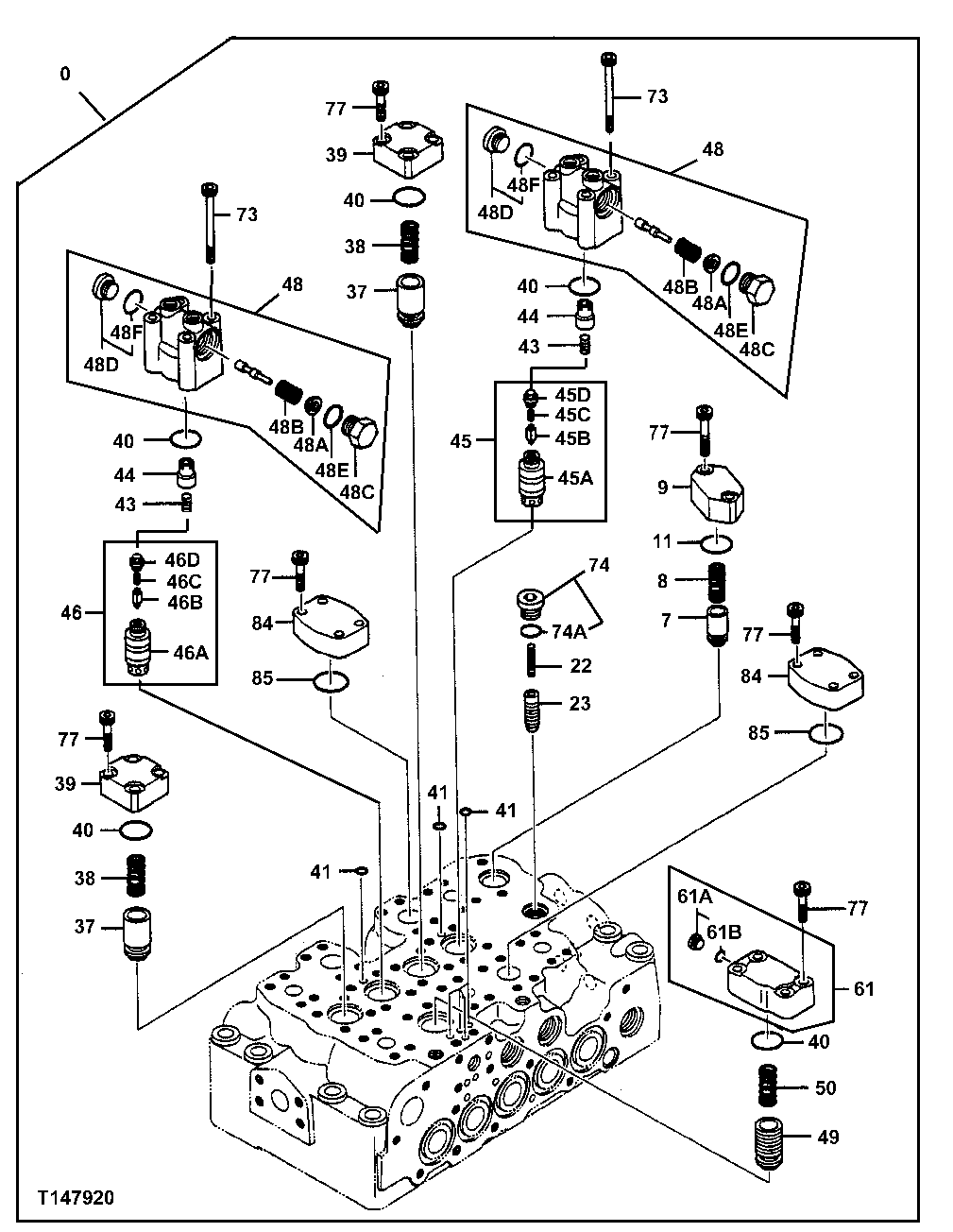

Flow Control Hyd. Valve
Contains All Items On This Page - Additi onal Components Listed On Separate Pages
1шт.
7
0668111
Poppet
(SUB FOR AT213700)
1шт.
8
0668112
Spring
(SUB FOR AT213701)
1шт.
9
0791601
Flange
(SUB FOR TH0791601)
1шт.
11
CH17886
Packing
(SUB FOR TH111690 ) (SUB FOR 4509182)
1шт.
22
0668007
Spring
(SUB FOR AT213693)
1шт.
23
0791602
Poppet
(SUB FOR TH0791602)
1шт.
37
0791603
Poppet
(SUB FOR TH0791603)
2шт.
38
0791604
Spring
(SUB FOR TH0791604)
2шт.
39
0791605
Flange
(SUB FOR TH0791605)
2шт.
40
985098
O-Ring
31.700 X 3.500 mm (1.248" X 0.138") (SUB FOR TH102528)
5шт.
41
4506406
O-Ring
5.800 X 1.900 mm (0.228" X 0.075") (SUB FOR TH104587)
6шт.
43
0791606
Spring
(SUB FOR TH0791606)
2шт.
44
0791607
Spacer
(SUB FOR TH0791607)
2шт.
45
4454194
Poppet
(SUB FOR TH4454194)
1шт.
45A
Poppet
( TH0791609 NLA)
1шт.
45B
Poppet
( TH0791610 NLA)
1шт.
45C
Spring
( TH0791611 NLA)
1шт.
45D
Pipe Plug
( TH0791612 NLA)
1шт.
46
4454195
Poppet
(SUB FOR TH4454195)
1шт.
46A
Poppet
( TH0791614 NLA)
1шт.
46B
Poppet
( TH0791610 NLA)
1шт.
46C
Spring
( TH0791611 NLA)
1шт.
46D
Pipe Plug
( TH0791612 NLA)
1шт.
48
4454197
Flow Control Hyd. Valve
2шт.
48A
Valve Seat
( TH0791616 NLA)
1шт.
48B
Spring
( TH0791617 NLA)
1шт.
48C
Pipe Plug
( TH0791618 NLA)
1шт.
48D
0667817
Fitting Plug
(SUB FOR AT213675)
1шт.
48E
4506418
O-Ring
17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)
1шт.
48F
M800650
Packing
1шт.
49
0791619
Poppet
(SUB FOR TH0791619)
1шт.
50
0791620
Spring
(SUB FOR TH0791620)
1шт.
61
4454199
Housing
(SUB FOR TH4454199)
1шт.
61A
0667713
Fitting Plug
(SUB FOR AT213660)
1шт.
61B
4506408
O-Ring
(SUB FOR TH101490)
1шт.
73
0791622
Bolt
(SUB FOR TH0791622)
8шт.
74
0695007
Fitting Plug
(SUB FOR AT250518)
1шт.
74A
CH11570
O-Ring
13.800 X 2.400 mm (0.543" X 3/32")
1шт.
77
0791623
Bolt
(SUB FOR TH0791623)
22шт.
84
0667726
Cap
(SUB FOR AT213668)
2шт.
85
T78313
O-Ring
32.920 X 3.530 mm (1.296" X 0.139")
2шт.
