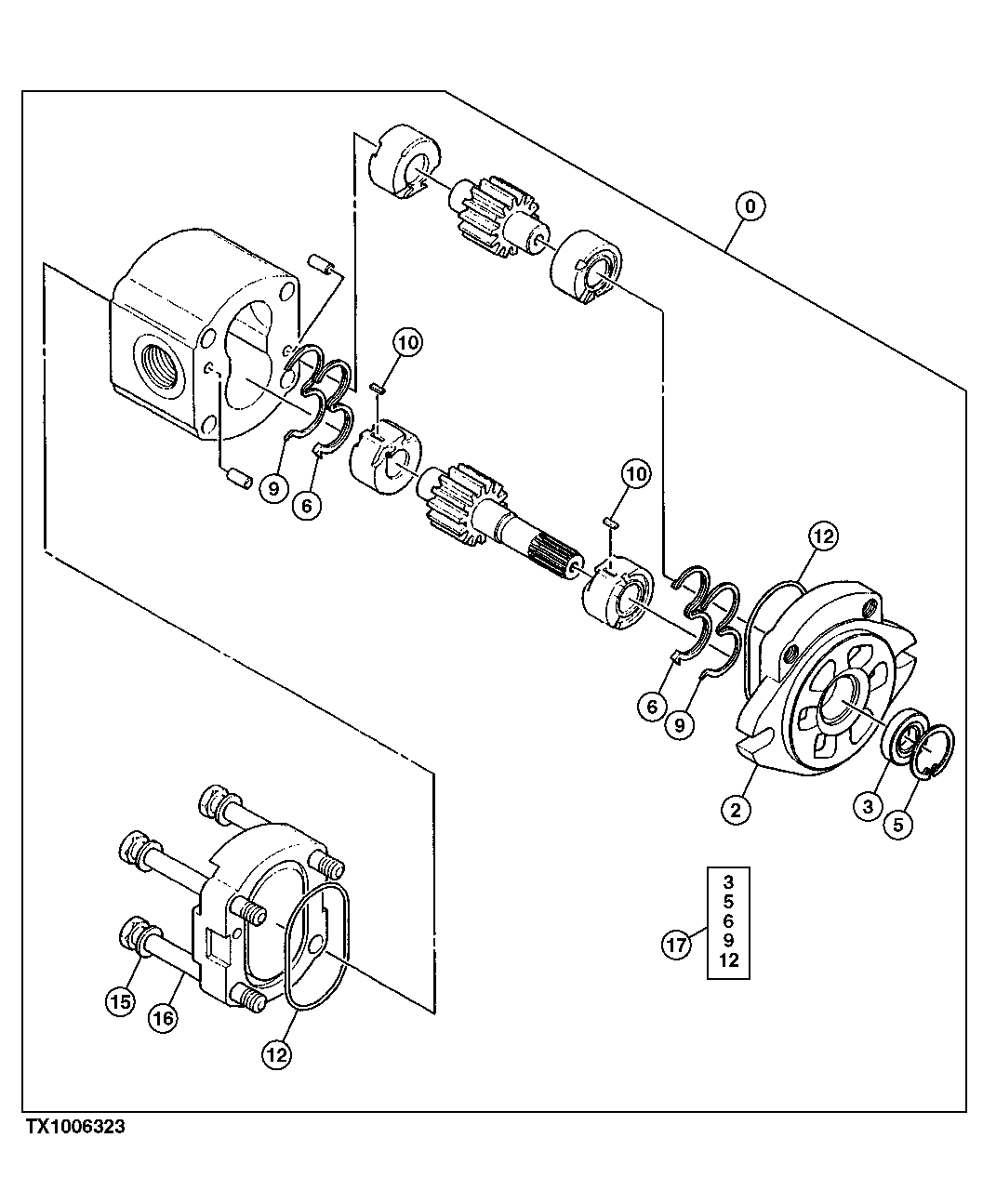

Запчасти John Deere 00CLC 308 - MAIN HYDRAULIC PUMP COMPONENTS 3361 HYDRAULIC PUMP

0

9218005

Pump

(SUB FOR AT202122 AND 4276918)

1шт.

A811085

O-Ring

1шт.

2

Flange

(SUB FOR AT203653)( 2050209 NLA)

1шт.

3

0408202

Seal

(K) (SUB FOR AT153880)

1шт.

5

Snap Ring

(K) AT153833 NLA)

1шт.

6

Seal

(K) ( AT153881 NLA)

2шт.

9

Filter Element

(K) ( AT153834 NLA)

2шт.

10

4484119

Key

(SUB FOR AT153838)

2шт.

12

4488720

O-Ring

(K) (SUB FOR 4206163, TH10 9922, 0354608 OR TH0354608)

2шт.

15

AT153837

Washer

10.400 X 18 X 2 mm (0. 409" X 0.709" X 0.079")

4шт.

16

19M7668

Cap Screw

M10 X 100 (SUB FOR AT15 3882 ) (SUB FOR 0408204)

4шт.

17

0408207

Seal Kit

Contains All Parts Mark ed K (SUB FOR AT153885)

1шт.
