Запчасти John Deere 00CLC 307 - MAIN HYDRAULIC PUMP LEFT HAND REGULATOR 3361 HYDRAULIC PUMP

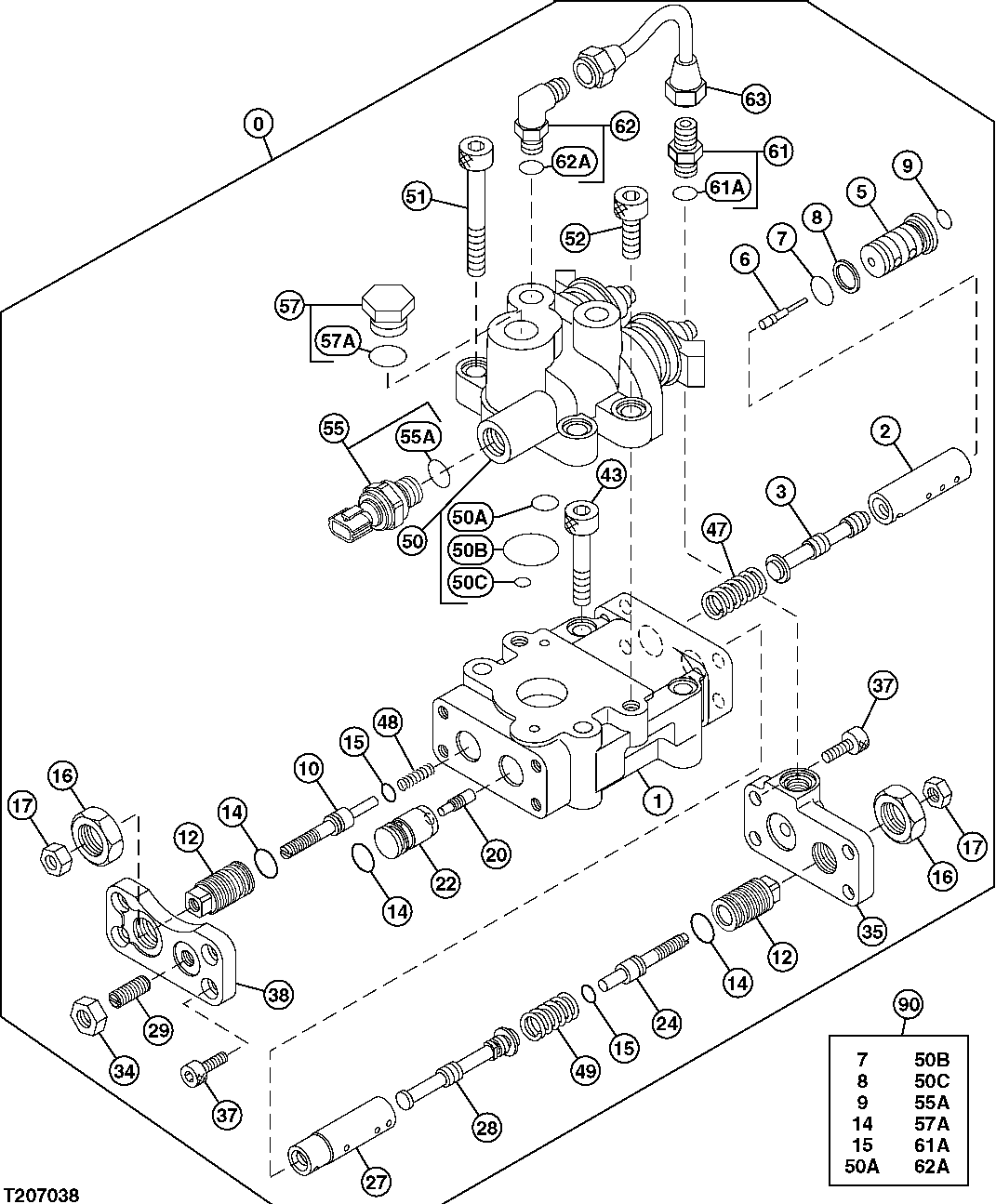

Схема запчастей John Deere 00CLC - 307 - MAIN HYDRAULIC PUMP LEFT HAND REGULATOR 3361 HYDRAULIC PUMP

Артикул

Название

Примечание

Количество

0

9198935

Regulator

(SUB FOR TH9198935)

1шт.

1

Housing

( TH1026282 NLA)

1шт.

2

4179155

Sleeve

(SUB FOR TH109892)

1шт.

3

4179156

Spool

(SUB FOR TH109893)

1шт.

5

4422202

Piston

(SUB FOR TH4422202)

1шт.

6

4422188

Flow Control Hyd. Valve

1шт.

7

TH102560

O-Ring

(K) 15.800 X 2.400 mm (0.622" X 3/32")

1шт.

8

4085607

Back-Up Ring

(K) (SUB FOR TH102562)

1шт.

9

CH11560

Packing

(K)

1шт.

10

4368619

Stop

(SUB FOR AT214045)

1шт.

12

4179161

Stop

(SUB FOR TH109898)

2шт.

14

4342843

O-Ring

(K) (SUB FOR AT213892)

3шт.

15

4342841

O-Ring

(K) (SUB FOR AT213891)

2шт.

16

4068898

Nut

M20 (SUB FOR TH102567)

2шт.

17

14M7273

Nut

M8

2шт.

20

4179171

Piston

(SUB FOR TH109911)

1шт.

22

4451498

Piston

(SUB FOR TH4451498)

1шт.

24

4347107

Stop

(SUB FOR AT213917)

1шт.

27

4346522

Sleeve

(SUB FOR AT213913)

1шт.

28

4346521

Valve Spool

(SUB FOR AT213912)

1шт.

29

22M7098

Set Screw

M10 X 25 (SUB FOR AT201005 OR 4265964)

1шт.

34

14M7274

Nut

M10

1шт.

35

3075775

End Plate

(SUB FOR AT213794)

1шт.

37

19M8446

Screw

M8 X 20

8шт.

38

4433327

Cover

(SUB FOR AT192511)

1шт.

43

19M8339

Screw

M10 X 55

2шт.

47

4194176

Compression Spring

(SUB FOR TH111263)

1шт.

48

4423345

Spring

(SUB FOR TH4423345)

1шт.

49

4350928

Compression Spring

(SUB FOR AT213951)

1шт.

50

9218269

Solenoid Valve

(SUB FOR TH4400442 OR 4400442)

1шт.

50A

TH102560

O-Ring

15.800 X 2.400 mm (0.622" X 3/32")

1шт.

50B

4153534

O-Ring

1шт.

50C

4153087

O-Ring

1шт.

51

19M9763

Screw

M10 X 80 (SUB FOR M341080)

2шт.

52

19M8337

Screw

M10 X 30

2шт.

55

4436536

Sensor

(SUB FOR TH4436536)

1шт.

55A

CH11570

O-Ring

(K) 13.800 X 2.400 mm (0.543" X 3/32")

1шт.

57

4174541

Fitting

(SUB FOR TH110477)

1шт.

57A

4506418

O-Ring

(K) 17.800 X 2.400 mm (0.70 1" X 3/32") (SUB FOR U46489)

1шт.

61

4255304

Fitting

(SUB FOR AT155270)

1шт.

61A

M800650

Packing

(K)

1шт.

62

4293950

Fitting

(SUB FOR AT160584)

1шт.

62A

M800650

Packing

(K)

1шт.

63

4436800

Oil Line

(SUB FOR TH4436800)

1шт.

90

4455733

Seal Kit

(SUB FOR TH4455733 OR 4455733 )(CONTAINS ALL PARTS MARKED K)

1шт.

Выбрано товаров: 45
