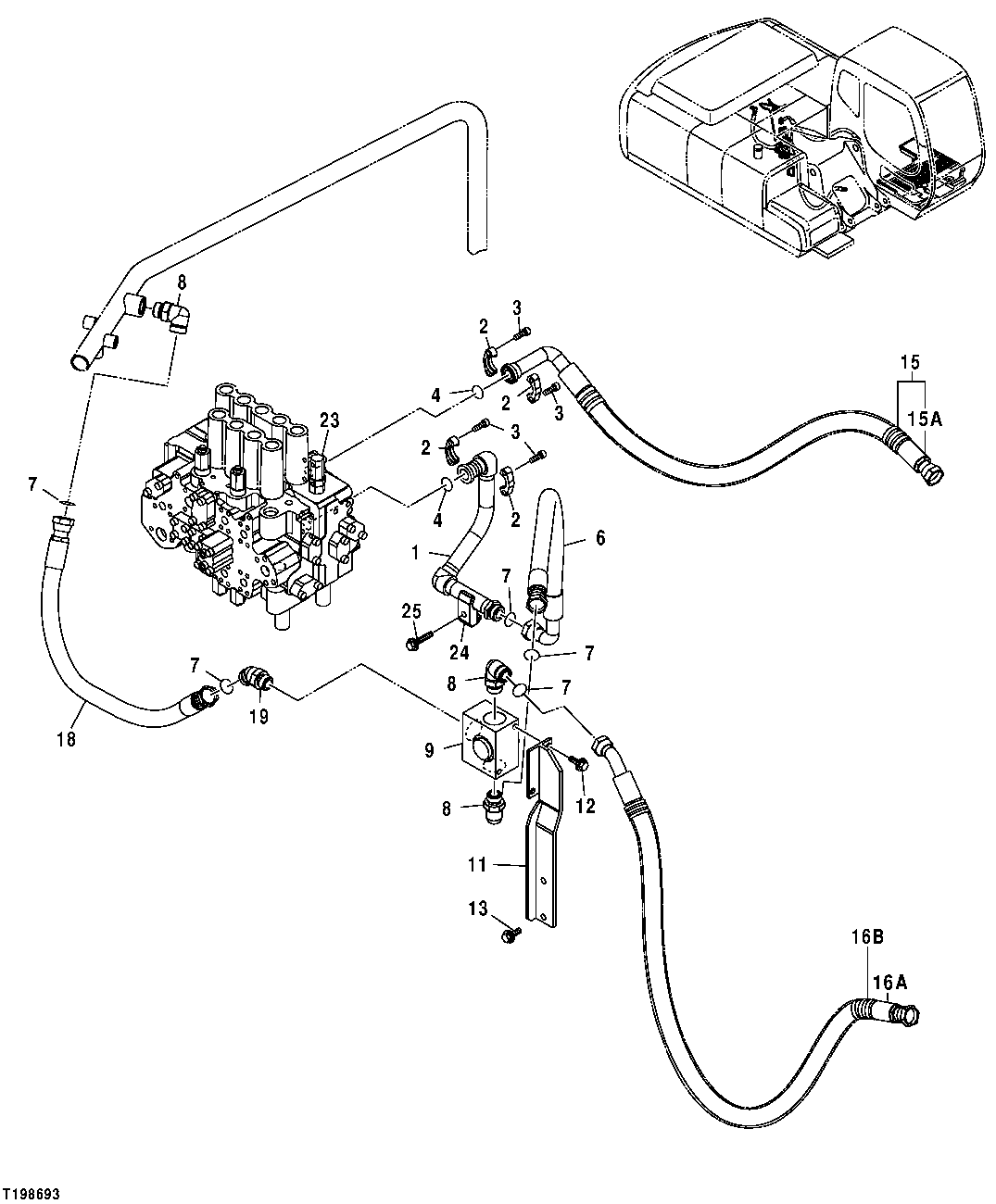

Запчасти John Deere 00CLC 296 - CONTROL VALVE PRESSURE AND RETURN AUXILIARY HOSES (FACTORY) 3360 HYDRAULIC SYSTEM

1

8079794

Oil Line

1шт.

2

H61354

Flange Fitting

SUB FOR Z962453

4шт.

3

19M7576

Screw

M10 X 30 SUB FOR J781030

8шт.

4

T78313

O-Ring

2шт.

6

4308972

Hydraulic Hose

1шт.

7

T76938

O-Ring

SUB FOR 4187328

5шт.

8

A853388

Elbow Fitting

3шт.

9

4455599

Valve

1шт.

11

8079166

Bracket

1шт.

12

19M8011

Cap Screw

M12 X 30 SUB FOR J011230

2шт.

13

19M7403

Cap Screw

M12 X 35 SUB FOR J021235

2шт.

15

Hydraulic Hose

TH9197330 OR 9197330 NLA

1шт.

15A

4429988

Hydraulic Hose

1шт.

16A

4448718

Hydraulic Hose

SUB FOR 9197376 , ALSO ORDER (6) XHG-075

1шт.

16B

Hose Guard

MAKE FROM XHG-075, BULK MATERIAL CTL, 4327294 NLA

6шт.

18

4307330

Hydraulic Hose

1шт.

19

FYA00046237

Elbow Fitting

SUB FOR 4270315

1шт.

TH101926

O-Ring

SUB FOR 4506429

1шт.

23

4282718

Pressure Relief Valve

2шт.

24

4190127

Clamp

1шт.

25

19M8088

Cap Screw

M12 X 75 SUB FOR J011275

1шт.
