286 - SUPER LONG FRONT CONTROL VALVE (01NOV04- )

Запчасти John Deere 00CLC 286 - SUPER LONG FRONT CONTROL VALVE (01NOV04- ) 3360 HYDRAULIC SYSTEM

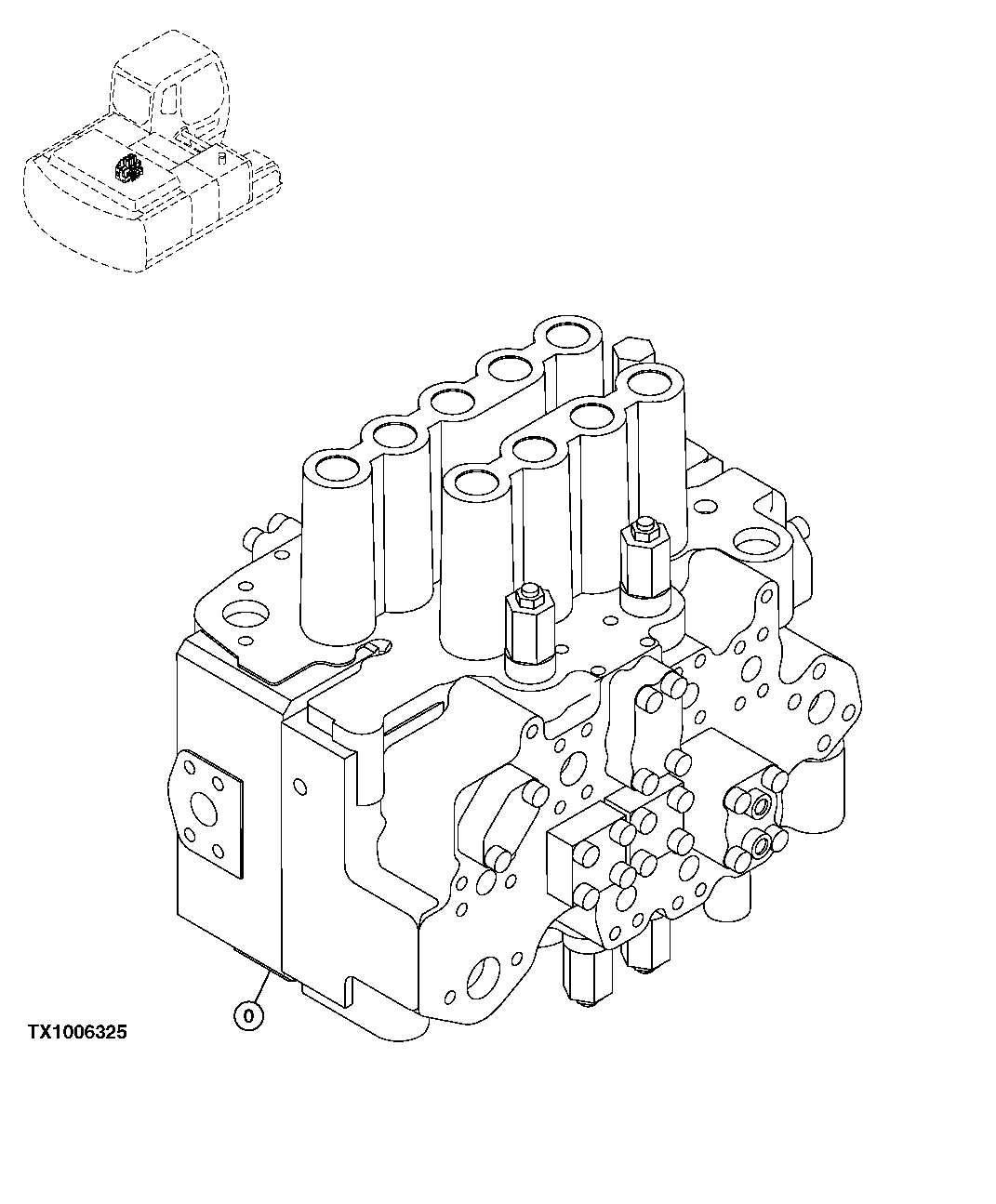

Схема запчастей John Deere 00CLC - 286 - SUPER LONG FRONT CONTROL VALVE (01NOV04- ) 3360 HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

Control Valve

( 4459002 CONTROL VALVE NOT INCLU DED IN SUPER LONG FRONT FIELD KIT)

1шт.

0A

4459451

Spool Valve

1шт.

0B

4354622

Pressure Relief Valve

(BUCKET RELIEF VALVE) (NOT ILLUSTRATED)

1шт.

0C

4282718

Pressure Relief Valve

(ARM RELIEF VALVE) (NOT ILLUSTRATED)

1шт.

20

Kit

( AT314801 NLA) Installed On Un its November 2004 or Later Super Long Front Kit Not Illustrated

1шт.
