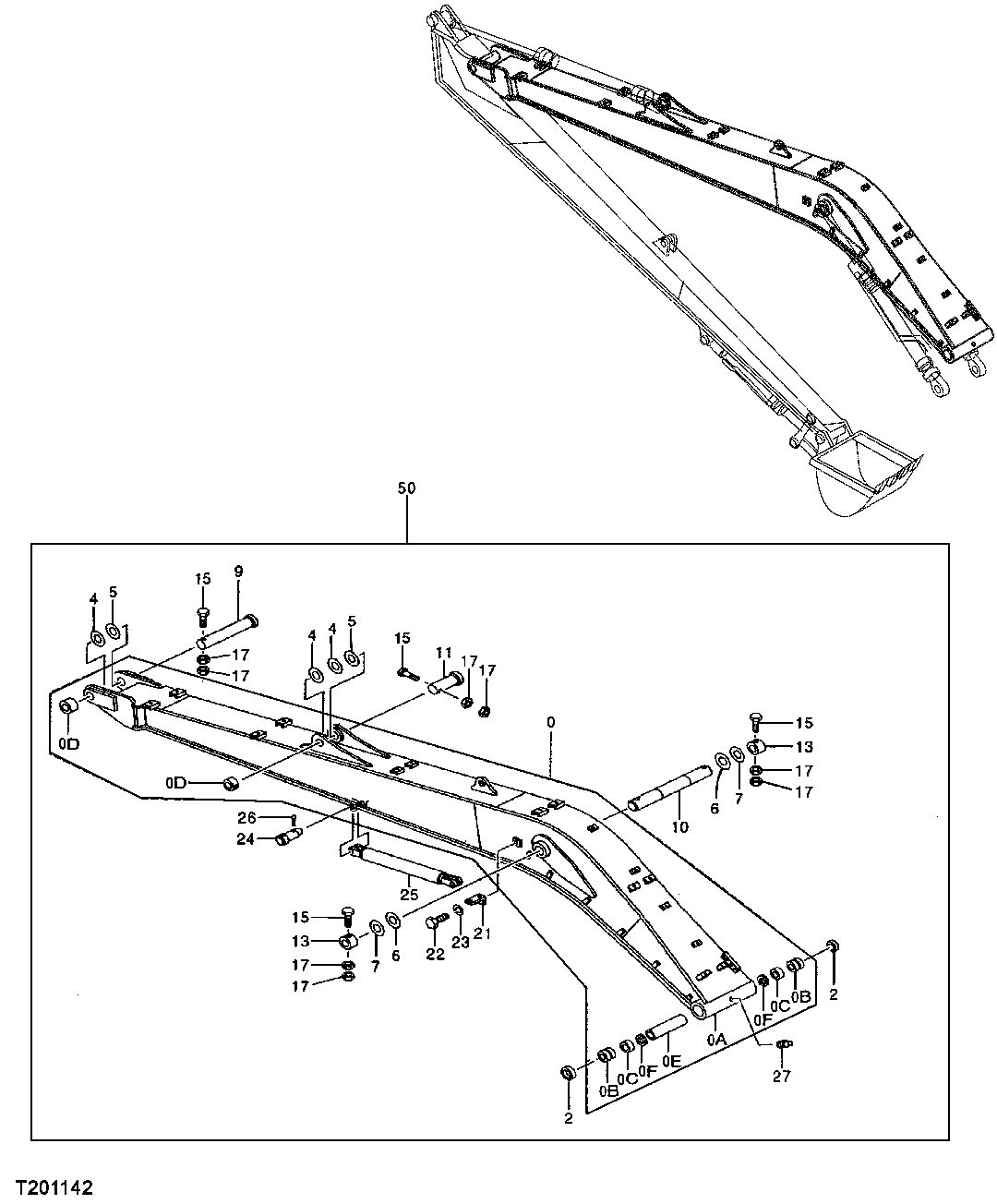

Запчасти John Deere 00CLC 282 - SUPER LONG FRONT BOOM (01NOV04- ) W/ BOOM, ARM AND CYLINDER MOUNTING PINS 3344 BOOM

0

7039478

Excavator Boom

1шт.

0A

Excavator Boom

( 5007526 NLA)

1шт.

0B

4443880

Bushing

2шт.

0C

4402460

Bushing

2шт.

0D

4434953

Stop

2шт.

0E

4435508

Spacer

1шт.

0F

TH102445

Seal

(SUB FOR 4067901)

2шт.

2

TH102445

Seal

(SUB FOR 4067901)

2шт.

4

4444286

Thrust Washer

4шт.

5

4444287

Thrust Washer

(SUB FOR AT186458)

2шт.

6

4444755

Thrust Washer

2шт.

7

4470743

Thrust Washer

(SUB FOR 4444284)

2шт.

9

3091290

Pin

1шт.

10

3088574

Pin

1шт.

11

TH109797

Pin

(SUB FOR 3038443)

1шт.

13

TH102409

Bushing

(SUB FOR 4067720)

2шт.

15

4435126

Pin Fastener

4шт.

17

14M7277

Nut

M20 (SUB FOR J950020 ) (SUB FOR 3063826)

8шт.

21

4224631

Angle

1шт.

22

J901425

Cap Screw

1шт.

23

12H317

Lock Washer

9/16" (SUB FOR A590914)

1шт.

24

AT159565

Pin

2шт.

25

Pin

1шт.

26

11M7034

Cotter Pin

5 X 63 mm (SUB FOR A766063)

2шт.

50

Kit

( AT314801 NLA) Installed On Units November 2004 or Later

1шт.
