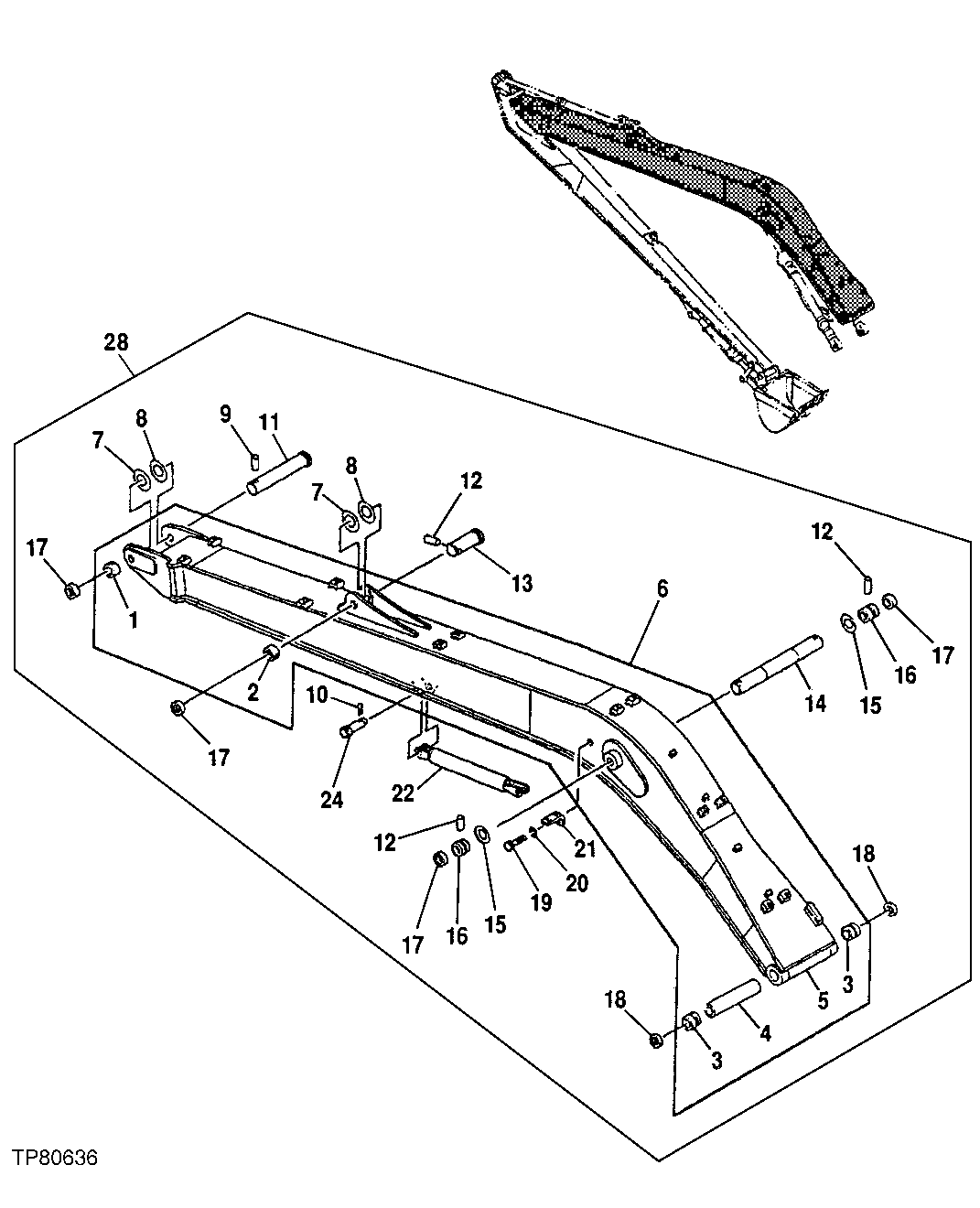

Запчасти John Deere 00CLC 281 - SUPER LONG FRONT BOOM ( -31OCT04) 3344 BOOM

1

T104269

Bushing

1шт.

2

TH104509

Bushing

1шт.

3

T153069

Bushing

(SUB FOR T139505)

2шт.

4

T139506

Spacer

1шт.

5

7031846

Excavator Boom

(CA) (SUB FOR AT186458 (SUPER LONG FRONT))

1шт.

6

AT160865

Excavator Boom

ASSY (CA) (SUPER LONG FRONT)

1шт.

7

4361179R

Thrust Washer

(SUB FOR AT214006 OR 4361179)

2шт.

8

4361604R

Thrust Washer

(SUB FOR AT214008 OR 4361604)

2шт.

9

4109669

Pin

(SUB FOR TH104292)

1шт.

10

11M7034

Cotter Pin

5 X 63 mm (SUB FOR AT159567)

2шт.

11

T115076

Pin

1шт.

12

4098713

Pin

16 X 106 mm (0.630" X 4. 173") (SUB FOR TH103627)

3шт.

13

T139498

Pin Fastener

1шт.

14

T144749

Pin

(SUB FOR T104336)

1шт.

15

4361607

Thrust Washer

(SUB FOR AT214009)

2шт.

16

TH104509

Bushing

2шт.

17

4098712

Ring

(SUB FOR TH103629)

4шт.

18

TH102445

Seal

2шт.

19

J901425

Cap Screw

(SUB FOR TH104071)

1шт.

20

12H317

Lock Washer

9/16"

1шт.

21

4224631

Angle

(SUB FOR TH111685)

1шт.

22

9738224

Cylinder

(SUB FOR AT159566)

1шт.

24

AT159565

Pin

2шт.

25

T190565

Label

(SUB FOR T166489)(NOT ILLUSTRA TED) (SEE LABELS AND DECALS PAG E FOR LOCATION) Not Illustrated

1шт.

26

T153672

Label

(NOT ILLUSTRATED) (SEE LABELS AND DEC ALS PAGE FOR LOCATION) Not Illustrated

1шт.

27

T153673

Label

(NOT ILLUSTRATED) (SEE LABELS AND DECALS PAGE FOR LOCATION)

1шт.

28

Kit

Installed On Units Prior To November 2004 Long Front Assembly Kit (ALSO ORDER T1905 65, T153672, T153673, AH165671 AND AH16567 3 (CONTAINS ALL ITEMS ON THIS PAGE - ADDIT IONAL COMPONENTS LISTED ON SEPARATE PAGES) )

1шт.
