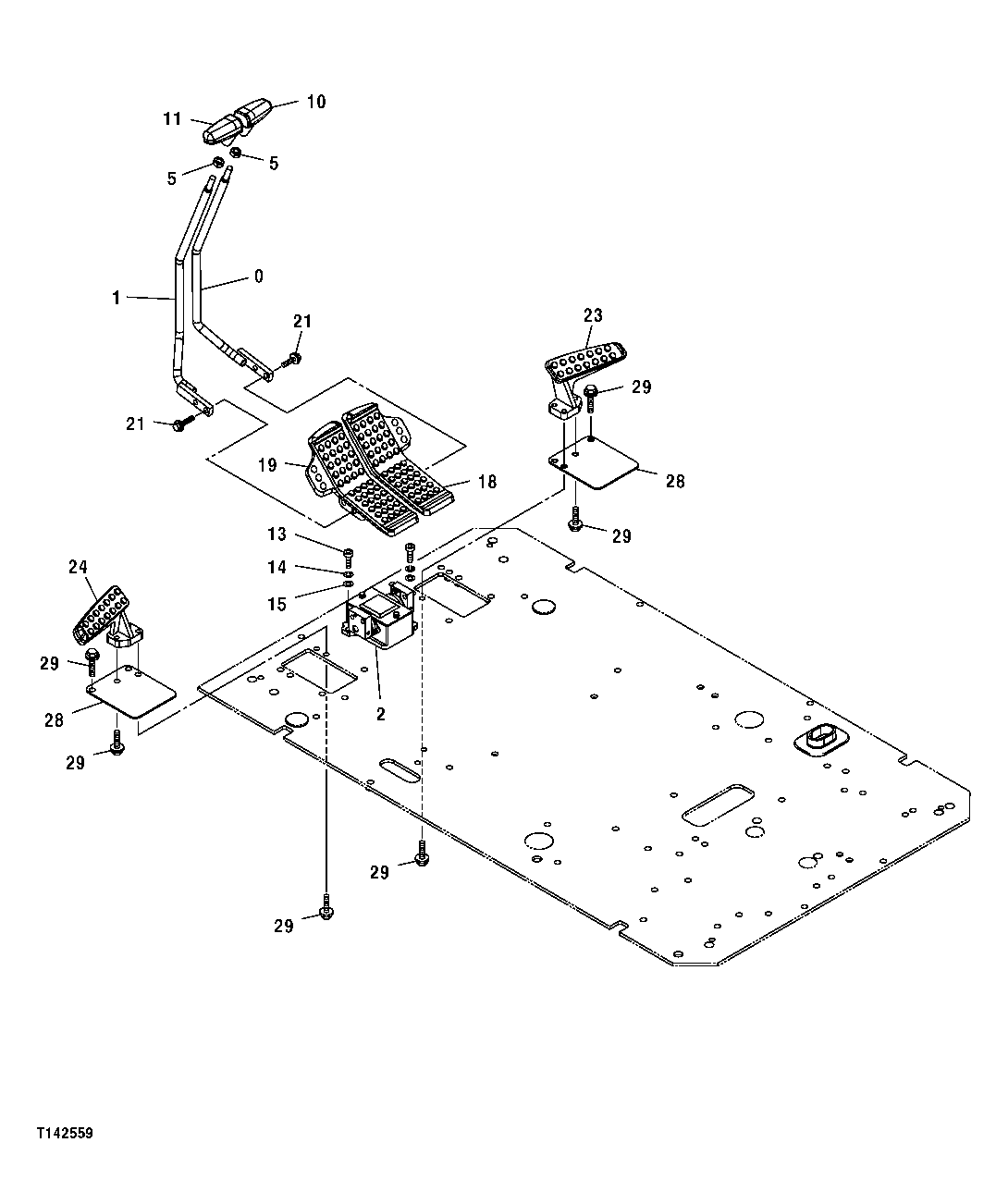

Запчасти John Deere 00CLC 269 - PROPEL PILOT CONTROLLER LEVER AND PEDAL 3315 CONTROL LINKAGE

0

8075450

Lever

SUB FOR TH8075450

1шт.

1

8075449

Lever

SUB FOR TH8075449

1шт.

2

9195307

Hydr./Pilot Control Valve

SUB FOR TH9195307

1шт.

9235551

Hydr./Pilot Control Valve

SUB FOR 9226365

1шт.

5

4424185

Nut

SUB FOR TH4424185

2шт.

10

2051176

Grip

SUB FOR TH2045468, 2045468

1шт.

11

2051177

Grip

SUB FOR TH2045469, 2045469

1шт.

13

19M8337

Screw

M10 X 30

2шт.

14

12M7066

Lock Washer

10 mm

2шт.

15

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

18

1024384

Pedal

SUB FOR AT202292

1шт.

19

1024224

Pedal

SUB FOR AT202291

1шт.

21

19M7658

Cap Screw

M10 X 50

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

4шт.

23

1015478

Footrest

SUB FOR AT154056

1шт.

24

1015477

Footrest

SUB FOR AT154055

1шт.

28

3052543

Cover

SUB FOR AT154127

2шт.

29

19M7550

Cap Screw

M10 X 35

8шт.

12M7066

Lock Washer

10 mm

8шт.
