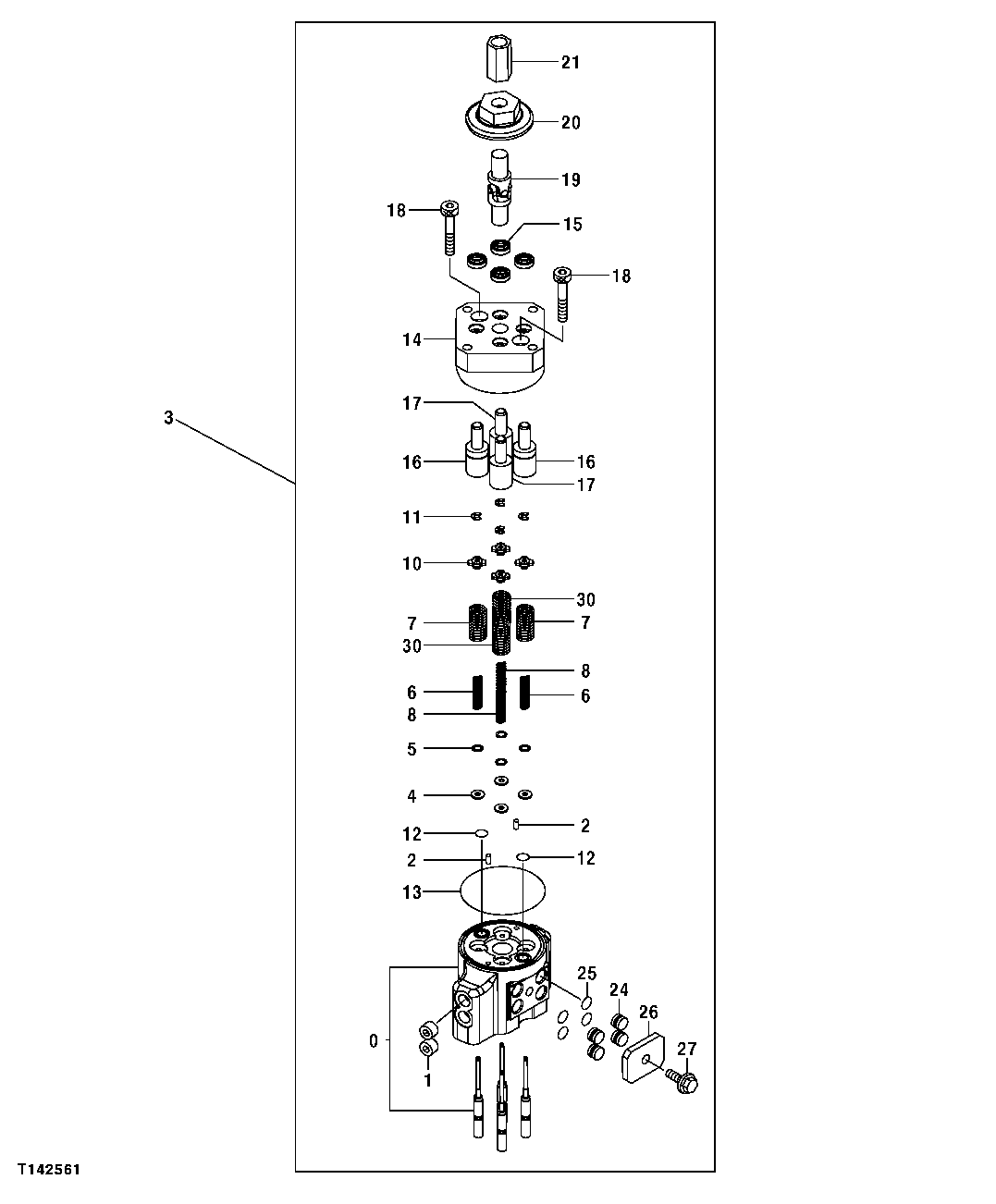

Запчасти John Deere 00CLC 266 - PILOT CONTROLLER VALVE COMPONENTS(DIG AND SWING)(SN -504162) 3315 CONTROL LINKAGE

0

Case

TH8081319 NLA

1шт.

1

942011

Fitting Plug

SUB FOR 94-2011

2шт.

2

J400408

Pin

2шт.

3

Hydr./Pilot Control Valve

9195304 NLA SUB 9239583

1шт.

4

4410898

Spacer

4шт.

5

4173208

Shim

12шт.

6

4425414

Spring

2шт.

7

4421771

Spring

2шт.

8

4429120

Spring

2шт.

10

4429119

Guide

4шт.

11

4437333

Snap Ring

4шт.

12

4431914

O-Ring

2шт.

13

4431915

O-Ring

1шт.

14

Manifold

2044350 NLA (SUB 9234284, 447785 2, 9759158 AND 9759157 (MANIFOLD HAS ONE PUNCH MARK ON TOP FACE))

1шт.

9234284

Manifold

(SUB FOR 2044350 ) (ALSO ORDER 44 77852, 9759158 AND 9759157)(MANIFO LD HAS TWO PUNCH MARKS ON TOP FACE )

1шт.

15

4447050

Seal

(SUB 9234284, 4477852, 9759158 AND 9759157 (USE WITH 2044350))

4шт.

Seal

(SUB FOR 4447050 ) (ALSO ORDER 9234284, 9759158 AND 9759157)( USE WITH 9234284) ( 4477852 NLA )

4шт.

16

Piston

9754825 NLA (SUB 9234284, 4477852, 97 59158 AND 9759157 (USE WITH 2044350))

2шт.

9759157

Piston

(SUB FOR 9754825 ) (ALSO ORDER 4477852, 9234284 AND 9759158)(USE WITH 9234284)

2шт.

17

Piston

9754826 NLA (SUB 9234284, 4477852, 9 759158 AND 9759157 (USE WITH 2044350))

2шт.

9759158

Piston

SUB 9754826, ALSO ORDER 4477852, 9759158, 9234284, USE WITH 9234284

2шт.

18

19M8923

Screw

M8 X 45 SUB FOR J780845

2шт.

19

4335060

Universal Joint

1шт.

20

4639115

Cam

SUB FOR 4437106

1шт.

21

4182067

Jointer

1шт.

24

4442323

Pipe Plug

4шт.

25

CH11560

Packing

4шт.

26

4442339

Plate

1шт.

27

19M7932

Cap Screw

M8 X 16

1шт.

30

4446960

Spring

2шт.
