Запчасти John Deere 00CLC 258 - HEAVY DUTY BUCKET TOOTH ASSEMBLY (CONTINUED) 3302 BUCKET WITH TEETH

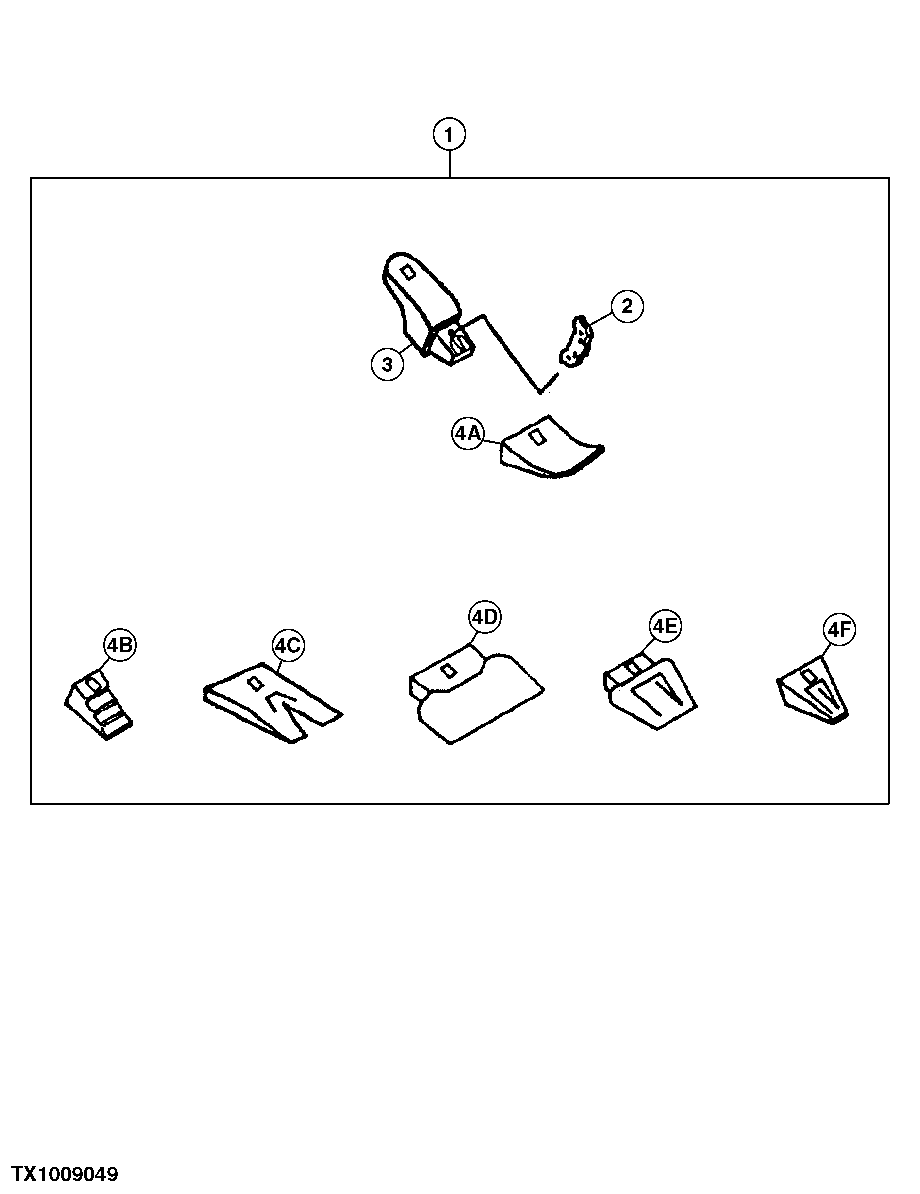

Схема запчастей John Deere 00CLC - 258 - HEAVY DUTY BUCKET TOOTH ASSEMBLY (CONTINUED) 3302 BUCKET WITH TEETH

Артикул

Название

Примечание

Количество

2

TP160

Pin

Use With 310 Tooth Assemblies (S UB FOR TP160L, THIS APPLICATION)

1шт.

TK330

Pin

Use With 330 Tooth Assemblies

1шт.

TK290

Pin

Use With 290 Tooth Assemblies

1шт.

EX27VPN

Pin

(A) (B) Esco

1шт.

T9J2358

Pin Fastener

(A) Caterpillar Replacement

1шт.

3

T153X310

Bucket Tooth Adapter

Use With 310 Tooth Assemblies

1шт.

T158X330

Bucket Tooth Adapter

Use With 330 Tooth Assemblies

1шт.

T158X290

Bucket Tooth Adapter

Use With 290 Tooth Assemblies

1шт.

Bucket Tooth Adapter

(A) (B) EX5850-27V NLA Esco

1шт.

T3G8354

Bucket Tooth Adapter

(A) Caterpillar Replacement

1шт.

4A

TF310

Tooth

(FANGGS™) (ALSO ORDER TP160L)

1шт.

TF330

Tooth

(FANGGS™)

1шт.

TF290

Tooth

(FANGGS™)

1шт.

4B

TX310

Tooth

Standard (ALSO ORDER TP160L)

1шт.

TX330

Tooth

Standard

1шт.

TX290

Tooth

Standard

1шт.

4C

TX310WT

Tooth

Twin Tiger (ALSO ORDER TP160L)

1шт.

TX330WT

Tooth

Twin Tiger

1шт.

TX290WT

Tooth

Twin Tiger

1шт.

4D

TX310F

Tooth

(ALSO ORDER TP160L)

1шт.

4E

TX310AP

Tooth

(ALSO ORDER TP160L)

1шт.

4F

TT310

Tooth

Tiger (ALSO ORDER TP160L)

1шт.

TT330

Tooth

Tiger

1шт.

TT290

Tooth

Tiger

1шт.

4G

EX27SYL

Tooth

(A) (B) Esco Standard

1шт.

4H

EX27TVIP

Tooth

(A) (B) Esco Twin Tiger

1шт.

4I

Tooth

(A) (B) Esco Flare EX27S6F NLA

1шт.

4J

EX27VIP

Tooth

(A) (B) Esco Tiger

1шт.

4K

TF1U3352D

Tooth

(A) Caterpillar Replacement Fanggs™

1шт.

4L

T1U3352

Tooth

(A) Caterpillar Replacement Standard

1шт.

4M

TX1U3352WT

Tooth

(A) Caterpillar Replacement Twin Tiger

1шт.

4N

TT1U3352

Tooth

(A) Caterpillar Replacement Tiger

1шт.

4O

EV39SYL

Tooth

(A) For Super V-Style EV39SYL Tooth Kit

1шт.

5

T3G9549

Retainer

(A) Caterpillar Replacement

1шт.

6

EX27VPL

Plug

(A) (B)

1шт.

Выбрано товаров: 35
